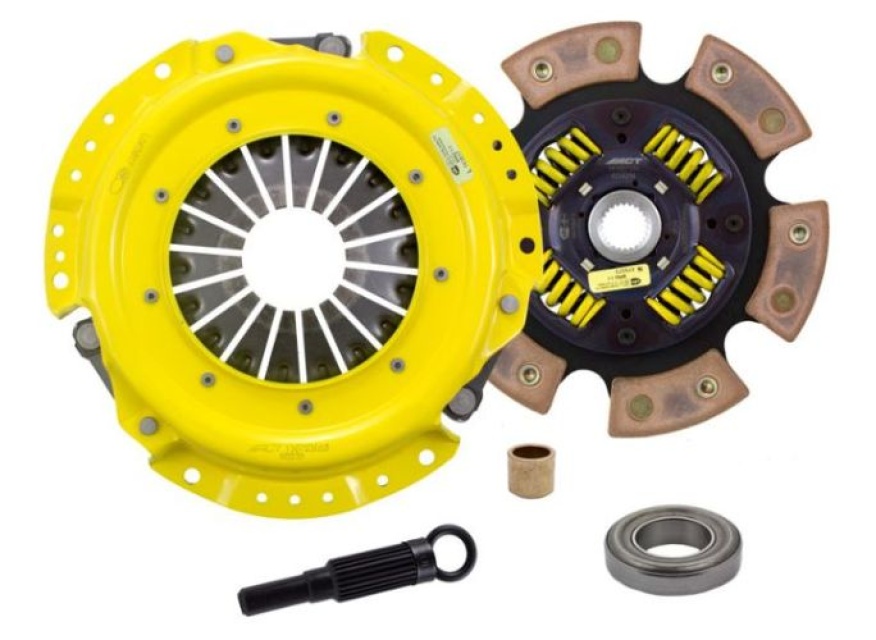

NX1-XTG6 ACT XT/Race Sprung 6 Pad Kit

Name: NX1-XTG6 ACT XT/Race Sprung 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actNX1-XTG6
Price: 803 EUR
Availability: InStock

Article nr:

actNX1-XTG6

Recommended for high horsepower street or race use. Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

803 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
NX1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 224 MM
Clutch Disc Diameter: 8.8 IN
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 14.9
Title: ACT XT/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 475
Torque Capacity Over OE: 168%
Kit includes:
6224206 ACT 6 Pad Sprung Race Disc
AT01 ACT Alignment Tool
N023X ACT Xtreme Pressure Plate
PB1012 ACT Pilot Bearing
RB016 ACT Release Bearing
Kitet passar:
Nissan 280Zoch 280ZX NA (1974-1983) 2.8L L6 2753cc L28E
Nissan 620 1976 2.0L L4 1952cc
Nissan 620 1977 2.0L L4 1952cc
Nissan 620 1978 2.0L L4 1952cc
Nissan 620 1979 2.0L L4 1952cc
Nissan 620 1975 2.0L L4 1952cc
Nissan Axxess 1989-1993 2WD 2.4L L4 2389cc
Nissan Maxima 1981-1984 2.8L L6 2793cc
Nissan Maxima 1981-1984 2.4L L6 2393cc
Nissan 720 Sport Truck 1986 2.4L L4 2389cc Z24I
Nissan 720 Sport Truck 1985 2.4L L4 2389cc Z24
Nissan 240SX 1989-1993 S13 2.4L L4 2389cc
Nissan 240SX 1993-1999 S14 2.4L L4 2389cc
Product video

Technical specification

Article nr:
actNX1-XTG6

Manufacture Partnumber: NX1-XTG6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
