ACT Advanced Clutch Technology

NS1-XTR4 ACT XT/Race Rigid 4 Pad Kit

Article nr:
actNS1-XTR4
|
(0 reviews)
Recommended for race use only. Moderate to heavy pedal effort, aggressive engagement, increased gear rattle.
737 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock:

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • NS1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

    Specifications:

  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter: 9.4 IN
  • Clutch Disc Diameter: 240 MM
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter: 1 IN
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.5
  • Title: ACT XT/Race Rigid 4 Pad Kit
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 127%

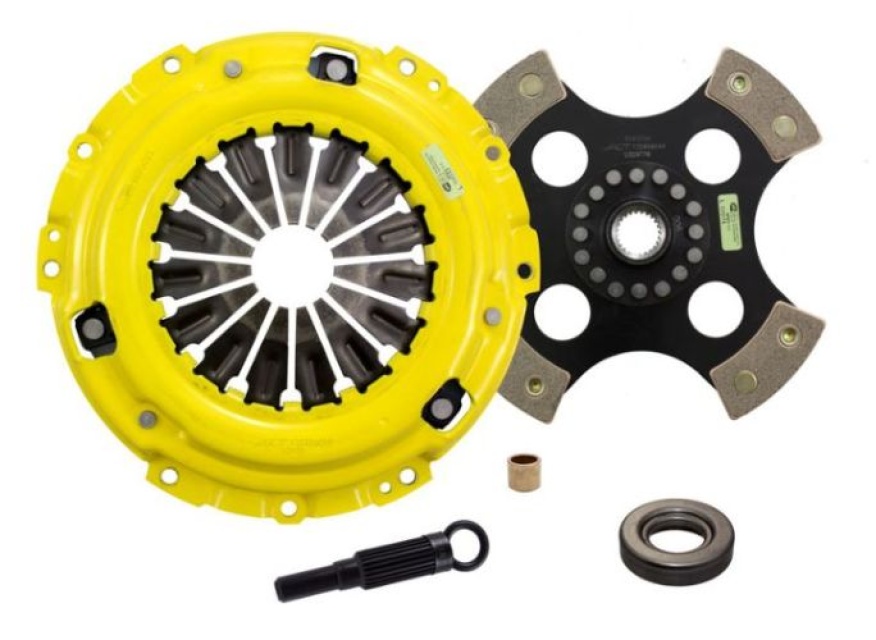

    Kit includes:

    • 4240006 ACT 4 Pad Rigid Race Disc
    • AT01 ACT Alignment Tool
    • N015X ACT Xtreme Pressure Plate
    • PB1012 ACT Pilot Bearing
    • RB810 ACT Release Bearing

    Kitet passar:

    Nissan Bluebird 1990-1998 AWD 2L I4 SR20DET
    Nissan 200SX 1993-1999 S14 2L I4 SR20DET
    Nissan 200SX 1999-2002 S15 2L I4 SR20DET
  • Product video

    Technical specification

    Article nr:
    actNS1-XTR4
    Manufacture Partnumber: NS1-XTR4
  • Suitable for
  • Brand
  • ACT Advanced Clutch Technology Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
  • Accessories & Spare Parts
  • Guarantee
  • Reviews:
  • To leave a review, you should have previously purchased this product and to your customer profile.
