NS1-HDR4 ACT HD/Race Rigid 4 Pad

Name: NS1-HDR4 ACT HD/Race Rigid 4 Pad
Brand: ACT Advanced Clutch Technology
SKU: actNS1-HDR4
Price: 706 EUR
Availability: InStock

Article nr:

actNS1-HDR4

Recommended for race use only. Light to moderate pedal effort, aggressive engagement, increased gear rattle.

706 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
NS1-HDR4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 240 MM
Clutch Disc Diameter: 9.4 IN
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 14.2
Title: ACT HD/Race Rigid 4 Pad
Torque Capacity (ft/lbs.): 475
Torque Capacity Over OE: 90%

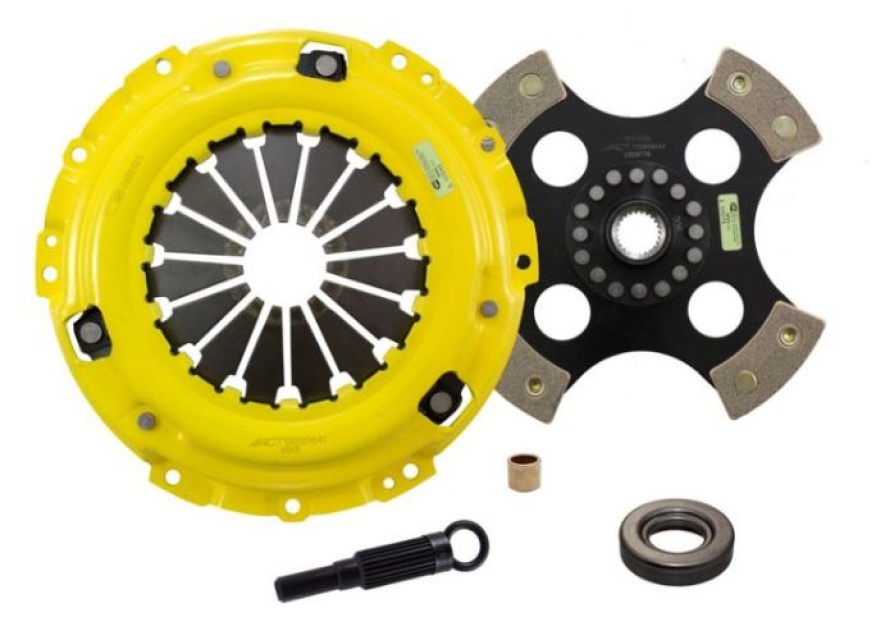

Kit includes:
4240006 ACT 4 Pad Rigid Race Disc
AT01 ACT Alignment Tool
N015 ACT Heavy Duty Pressure Plate
PB1012 ACT Pilot Bearing
RB810 ACT Release Bearing
Kitet passar:
Nissan Bluebird 1990-1998 AWD 2L I4 SR20DET
Nissan 200SX 1993-1999 S14 2L I4 SR20DET
Nissan 200SX 1999-2002 S15 2L I4 SR20DET
Product video

Technical specification

Article nr:
actNS1-HDR4

Manufacture Partnumber: NS1-HDR4
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
