NS1-HDG6 ACT HD/Race Sprung 6 Pad

Name: NS1-HDG6 ACT HD/Race Sprung 6 Pad
Brand: ACT Advanced Clutch Technology
SKU: actNS1-HDG6
Price: 797 EUR
Availability: InStock

Article nr:

actNS1-HDG6

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

797 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
NS1-HDG6 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4 IN
Clutch Disc Diameter: 240 MM
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 16.8
Title: ACT HD/Race Sprung 6 Pad
Torque Capacity (ft/lbs.): 475
Torque Capacity Over OE: 90%

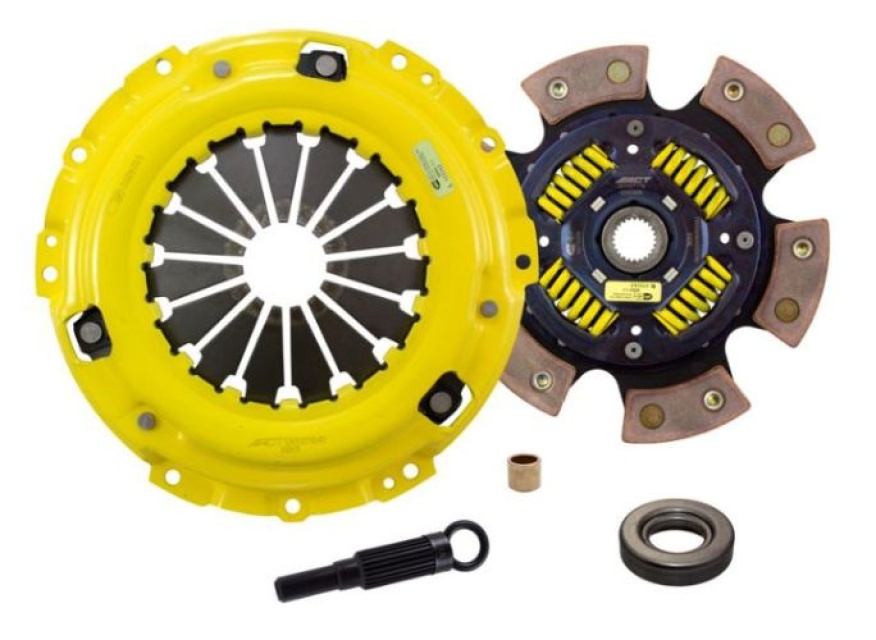

Kit includes:
6240306 ACT 6 Pad Sprung Race Disc
AT01 ACT Alignment Tool
N015 ACT Heavy Duty Pressure Plate
PB1012 ACT Pilot Bearing
RB810 ACT Release Bearing
Kitet passar:
Nissan Bluebird 1990-1998 AWD 2L I4 SR20DET
Nissan 200SX 1993-1999 S14 2L I4 SR20DET
Nissan 200SX 1999-2002 S15 2L I4 SR20DET
Product video

Technical specification

Article nr:
actNS1-HDG6

Manufacture Partnumber: NS1-HDG6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
