Nuke Performance top-feed conversion fuel rail for the Nissan 4cyl SR20DET (S14/S15) engines with IACV delete kit, oversized internals, lightweight design, and equipped with our unique injector safety clips.
The Nissan 4-cylinder SR20DET (S14/S15) fuel rail is delivered with brackets for the Nissan SR20DET (only S14 and S15 versions) engines, allowing you to use AN fuel lines and aftermarket injectors for your classic Nissan engine found in the S14 and S15 chassis.
• Lightweight fuel rail that fits Nissan SR20DET (S14/S15) intake
• To be used with Bosch EV14 K type injectors
• Delivered with IACV delete kit, enabling necessary clearance
• AN-8 ORB threads in both ends enable a high fuel flow
• Delivered with brackets for easy mounting to the intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuels, including alcoholic fuels such as E85
The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grant a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.
• Perfect fitment for the Nissan SR20DET (S14/S15) engines, delivered with the needed hardware to mount to the intake.
The Nuke Performance Nissan 4cyl SR20DET (S14/S15) fuel rail - IACV Delete kit is delivered with brackets and accessories for the OEM intake.
• Nissan S14 SR20DET
• Nissan S15 SR20DET

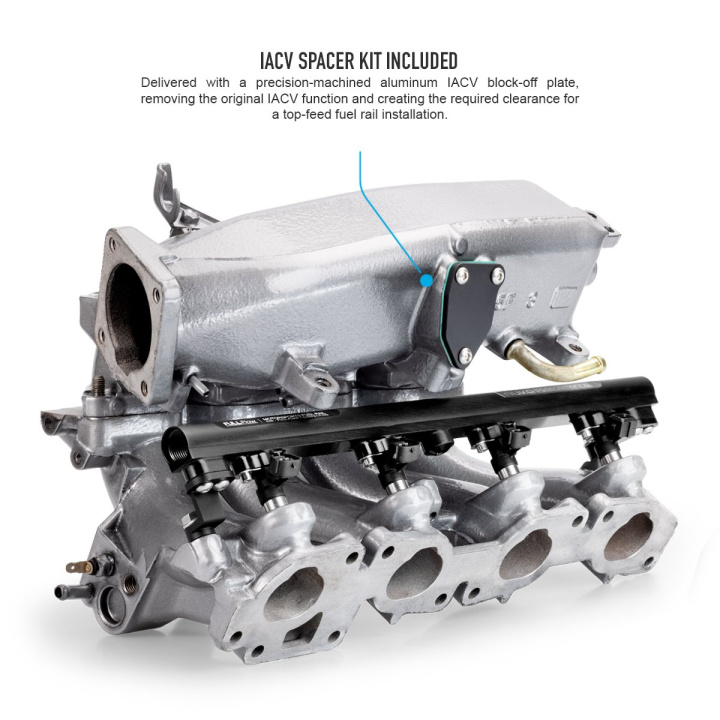

Please be aware that this fuel rail is not compatible with the SR20DET S13 engine. This version contains what is needed to run without the IACV with the integrated IACV block off plate. We also offer an IACV spacer kit version (available here).
This version will work only with 14mm injectors, such as Bosch EV14K injectors.
• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and offers an additional side port with AN-6 ORB thread. We provide various fittings and our low-profile full-flow banjo fittings for a space-efficient installation.
• AN-8 ORB main ports and AN-6 ORB side port
The fuel rail is delivered with two AN-6 ORB Plugs for the side port but the main port fittings are sold as accessories.
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129

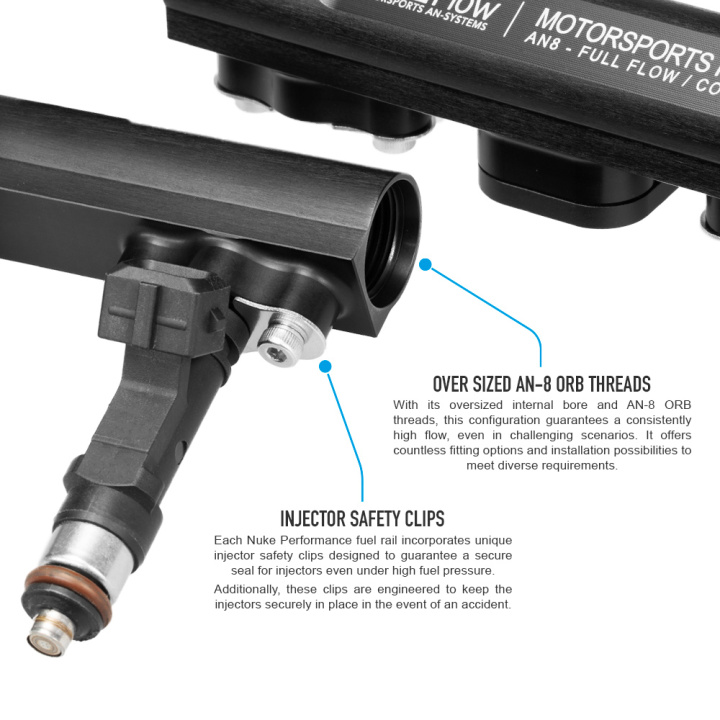

• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.
• Ensures a safe and secure seal even during extreme fuel demands
Whether during assembly, engine installation, or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.
• Designed and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Nissan 4cyl SR20DET (S14/S15) fuel rail - IACV Delete, is of the highest possible quality and has the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams and experts, making sure that functionality, as well as the design, meets the absolute highest standards, or even creates a standard of its own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance.
• Nuke Performance Nissan 4cyl SR20DET (S14/S15) fuel rail - IACV Delete Specifications:
For more information about specifications, view the product sheet.
| Delivered with brackets for | Nissan S14 SR20DETNissan S15 SR20DET |
| Injector type specification | Bosch EV14 K style |
| End inlet/outlet threads | AN-8 ORB (view assortment) * |
| Additional port thread | AN-6 ORB (view assortment) * |
| Length | 402.00mm (15.83") |
| Height | 32.00mm (1.25") |
| Weight | 353.00g (12.45oz) |
| Fuel compatibility | Petrol, Gasoline, Ethanol, E85, E100, Methanol |
| For motorsports use | YES |
| Part # | 120-06-104 |
| EAN | 7340209510904 |
* not included, make sure to select the needed fittings when placing an order

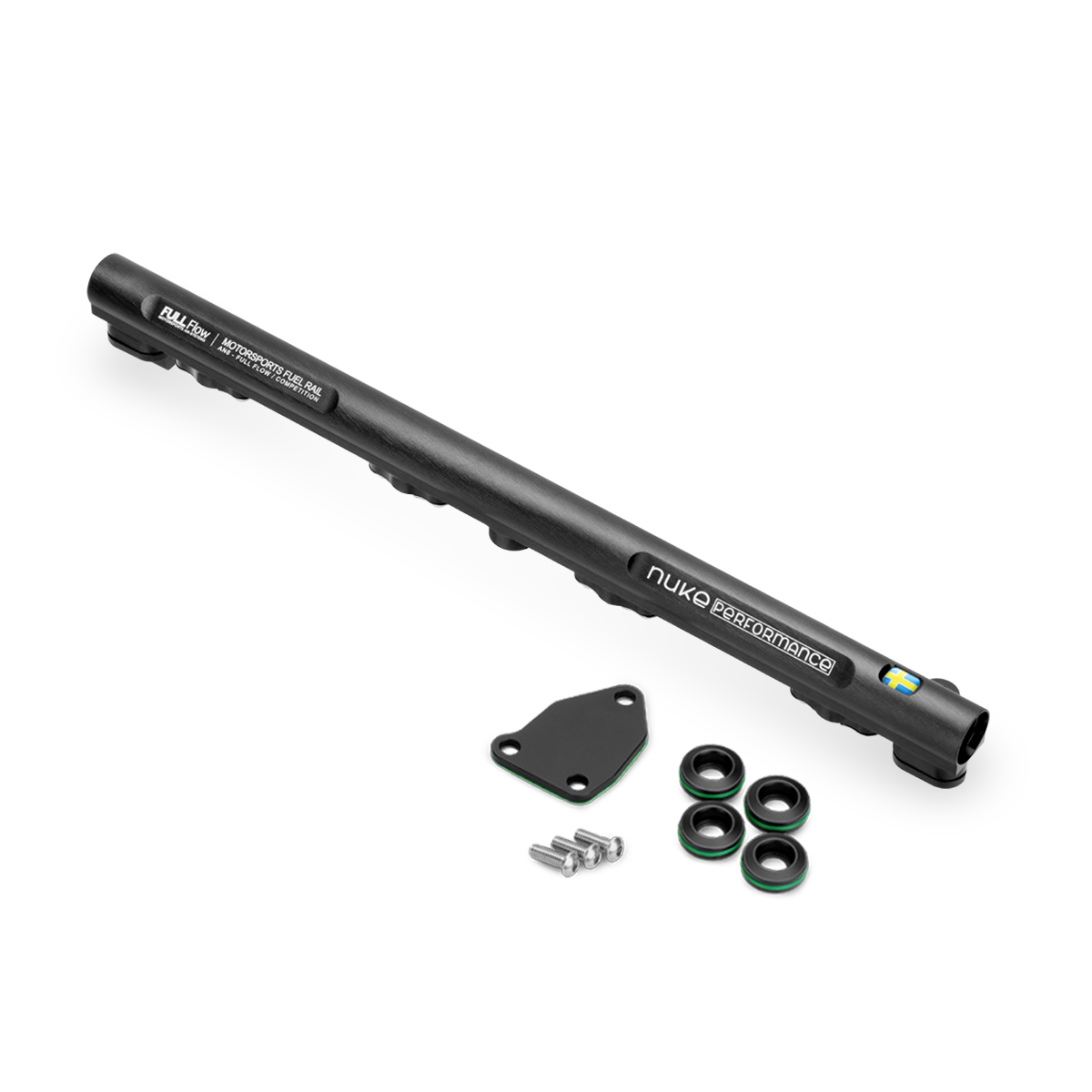

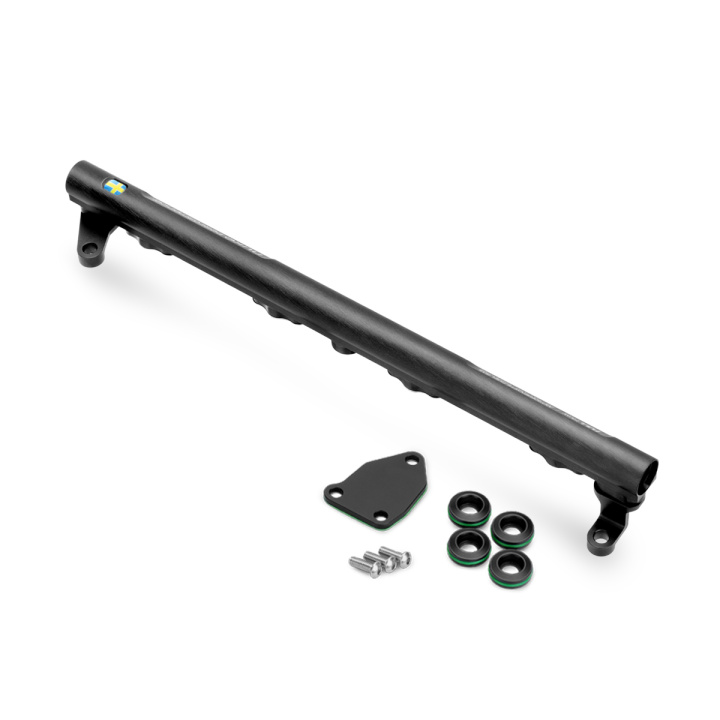

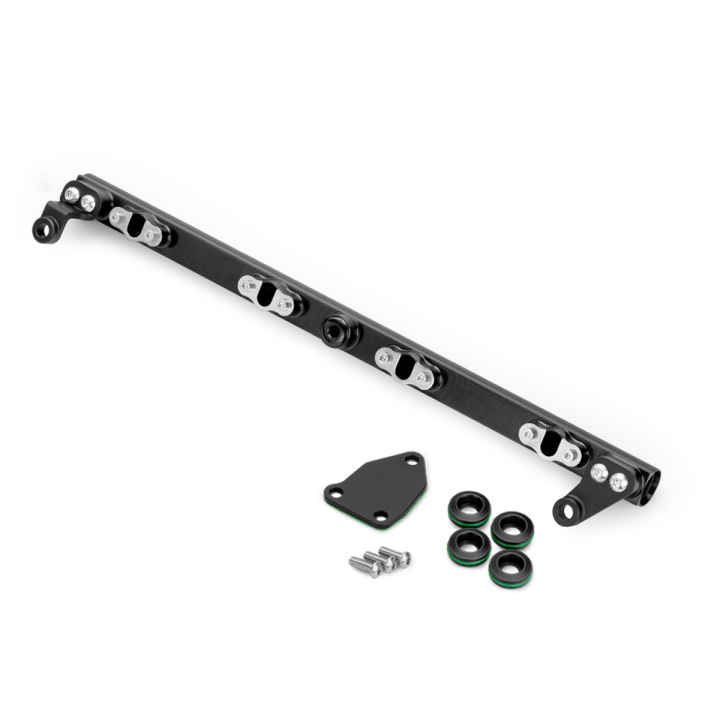

• Nuke Performance Nissan 4cyl SR20DET (S14/S15) fuel rail - IACV Delete includes:
1 x AN-8 ORB Full Flow fuel rail profile for Nissan SR20DET (S14/S15)
2 x Aluminum brackets for Nissan SR20DET (S14/S15) intake
1 x AN-6 ORB Plug

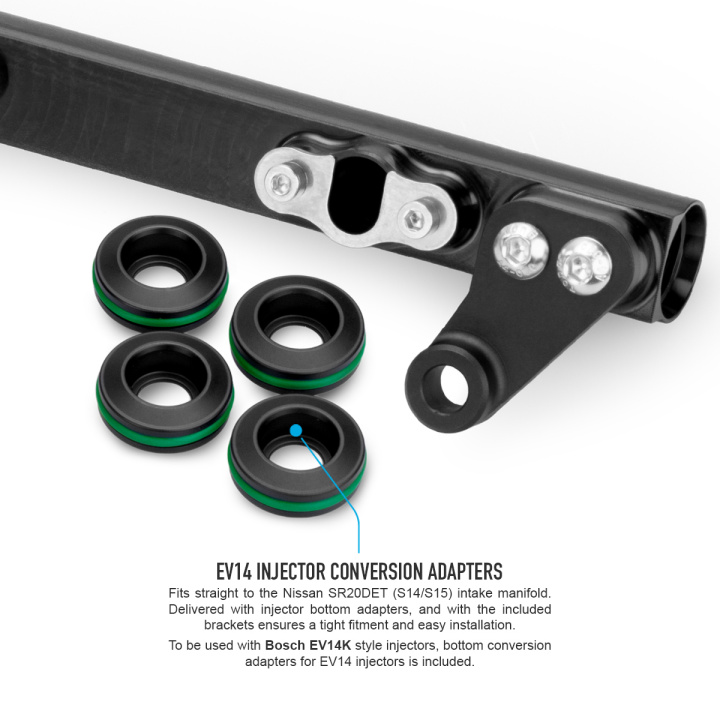

4 x Injector conversion adapters - with O-rings
4 x Nuke Performance Injector safety clips
8 x MC6S M4x6mm stainless steel bolts
2 x M6SF M8x20 stainless steel bolts
3 x K6S M6x16 stainless steel bolts
1 x IACV Block-off plate
1 x IACV Block-off plate gasket
• Download Product Sheet (.pdf)
• Accessories / Spare Parts
• The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.
