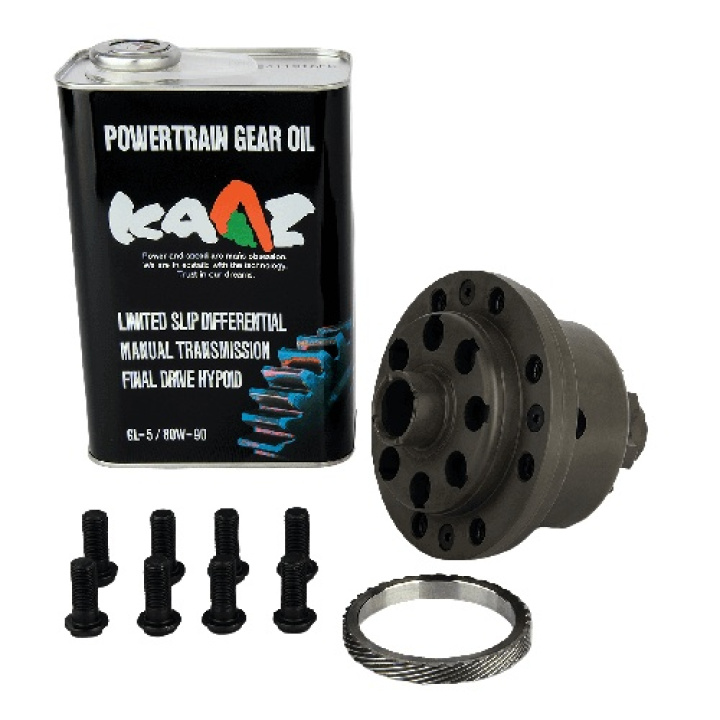

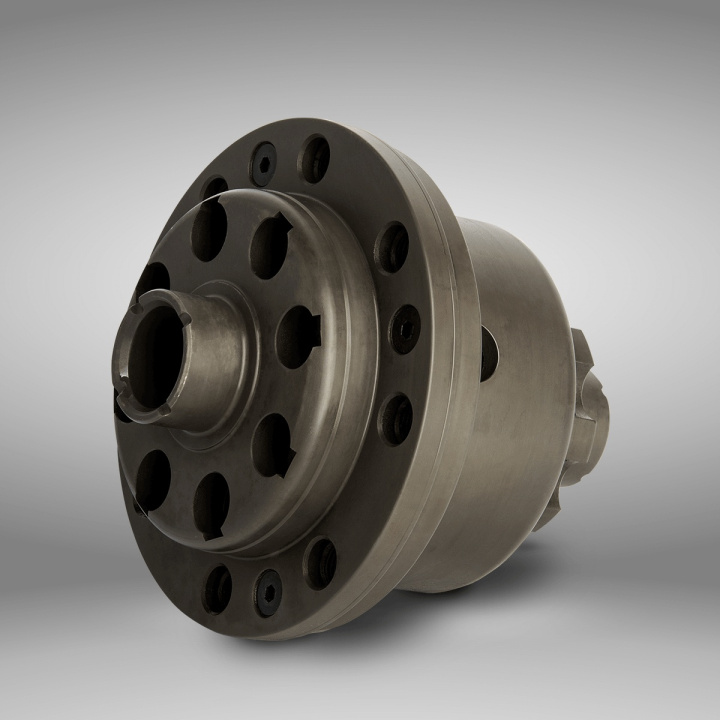

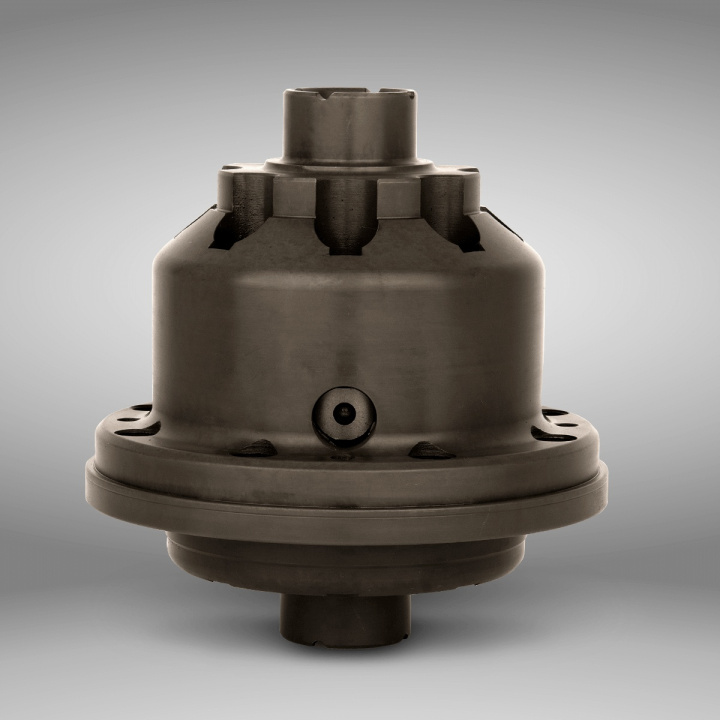

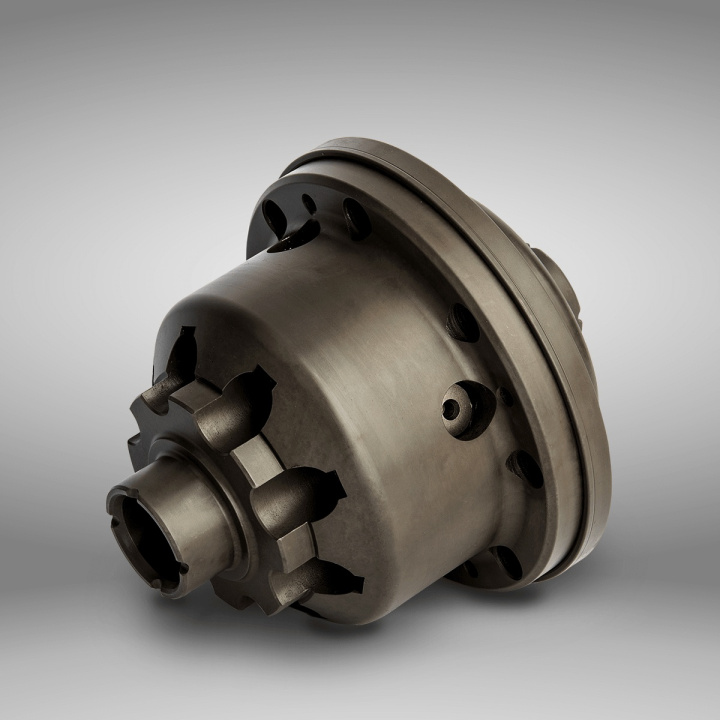

Mitsubishi Lancer CK4A – Mirage CJ4A / CK4A – Hyundai Tiburon 95-01 (1.8L)- 01+ (2.0L) KAAZ LSD 1.5-Way

Lancer CK4A – Mirage CJ4A / CK4A – Hyundai Tiburon 95-01 (1.8L)- 01+ (2.0L) 1.5 Way

• 12 Plates for mild to medium power levels
• 1.5 way
• Front Differential
• Fits cars equipped without factory LSD option
• Speed gear included
• Ring gear bolts included
• 2L Gear oil included
• Super Q option available

*Includes Speedo gear, Ring gear bolts and 2L Gear oil

1.5 Way

A 1.5-way limited-slip differential is the most common LSD upgrade option in performance and race cars. It is referred to as a 1.5-way because it functions under acceleration and to a lesser extent under deceleration. It provides differential locking characteristics under acceleration, maximizing power distribution to the wheels that need it most. Under deceleration, the 1.5-way LSD engages to assist in braking stability and smoother turn-in.

SuperQ (WPC treatment)

Every Kaaz limited-slip differential is offered in a SuperQ variant. SuperQ units feature reduced chattering and smoother engagement for an enhanced driving experience. With the help of WPC metal treatment, SuperQ limited-slip differentials also come with better heat dissipation and longer wear life with no break-in process required. Just like all of Kaazs limited-slip differentials, SuperQ units allow for locking rate adjustments.

Technical Information

KAAZ differentials are designed and engineered to be used in competition motorsports. They are supplied from the factory to react quickly and strongly when it reaches the ex-factory preload (100% Locking). This is ideal for smooth, dry tarmac circuit use.

For some drivers/ conditions, a “softer” setting may be required. There are several ways this can be achieved, but the general option is by reducing the amount of friction surfaces. By re-arranging the order of the plates, various options are available depending on the total number of plates in the differential.

The diagram below shows the stacking option for your application. The differential has the same number of plates on both sides and the plate configuration MUST be the same on both. Below shows just one side.

*The original quantity of plates must be retained, as well as the Belleville (cone) spring washer(s)

This part number fits the following applications:

NOTES:

M2: If only the front lsd is installed, the center differential becomes open diff。
