Nuke Performance Hydraulic Master Cylinders with Spherical Bearing Mount for DriftSpec Pro handbrakes.
Engineered for precision and reliability, the Nuke Performance Hydraulic Master Cylinders are developed to deliver consistent brake response under the most demanding motorsport conditions.
• Spherical bearing-mounted master cylinders
• Eliminates binding and side loads for more precise operation
• Optimized connection, M10x1 ports & adjustable 5/16 pushrod
• Optimized internal sealing for easy service and durability
• Perfect to be used in combination with DriftSpec Pro handbrakes

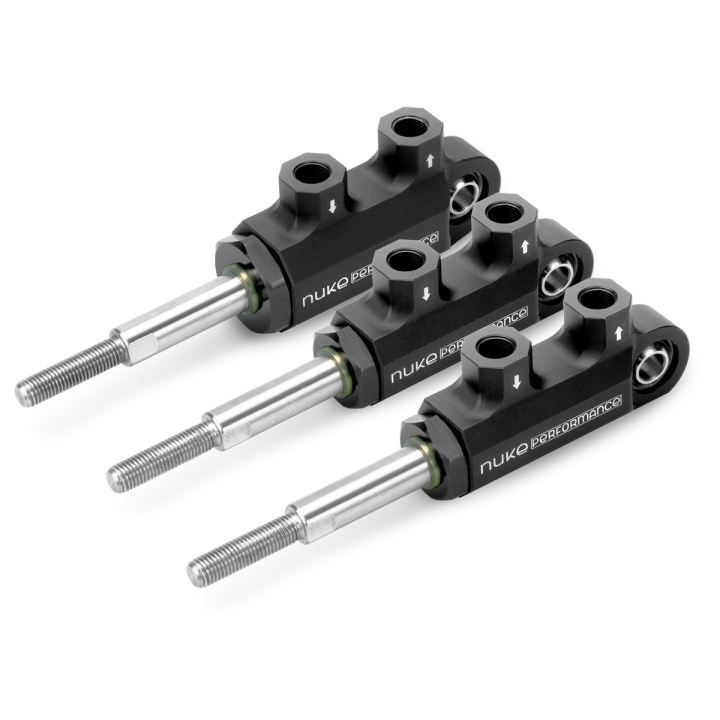

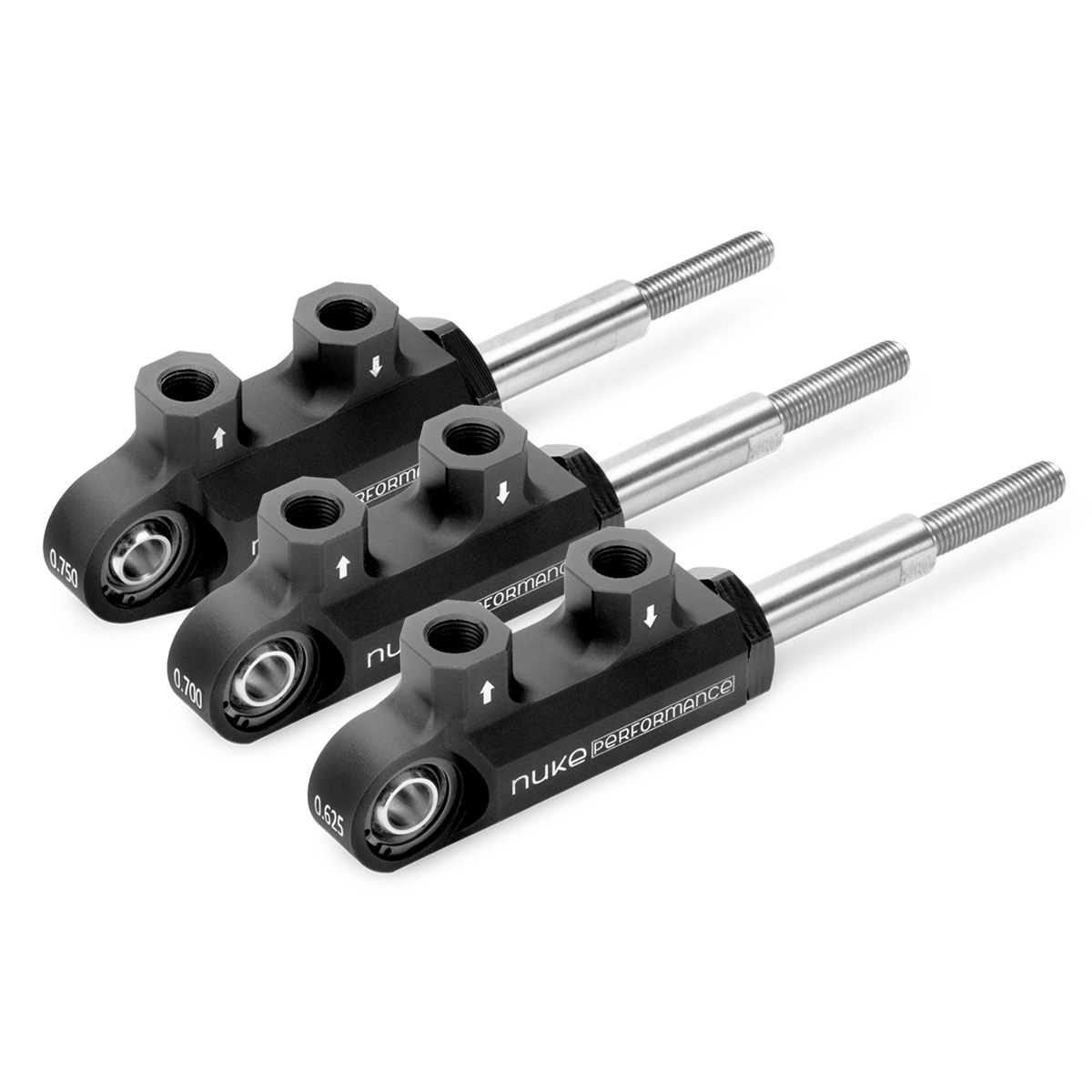

Designed to integrate seamlessly with the DriftSpec Pro handbrakes from Nuke Performance, these cylinders eliminate side loads and binding throughout the full stroke, ensuring smooth operation and reduced internal wear. Available in the three most commonly used bore sizes — 0.625 (5/8"), 0.700 (7/10"), and 0.750 (3/4").
• Spherical bearing-mounted master cylinder for DriftSpec Pro handbrakes from Nuke Performance.

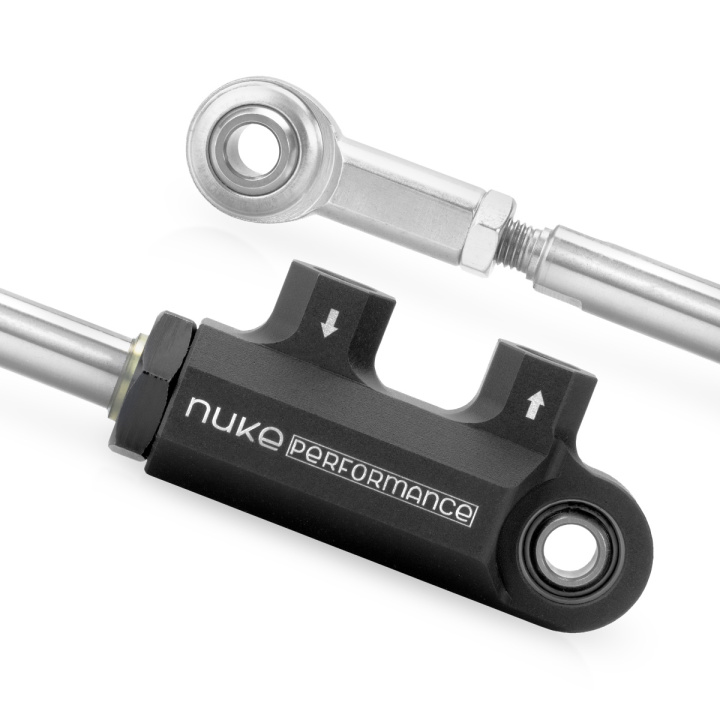

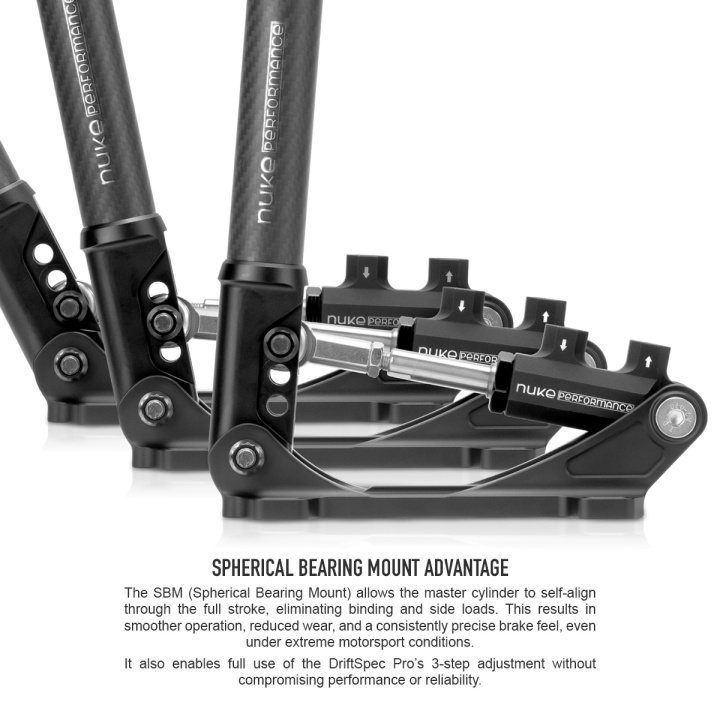

The Nuke Performance “SBM” (Spherical Bearing Mounted) Hydraulic Master Cylinders are specifically developed for the DriftSpec Pro hydraulic handbrakes. Unlike conventional designs, the SBM setup allows the cylinder to self-align throughout the entire stroke, eliminating side loads and binding.
• Eliminates side loads - no binding, reduces internal wear
• Consistent response - run after run, without fade
This reduces internal wear while delivering a smoother, more direct, and predictable brake response—exactly what is required in high-performance drifting and motorsport applications. The low-profile design also enables a cleaner, more space-efficient installation compared to traditional fixed master cylinders.

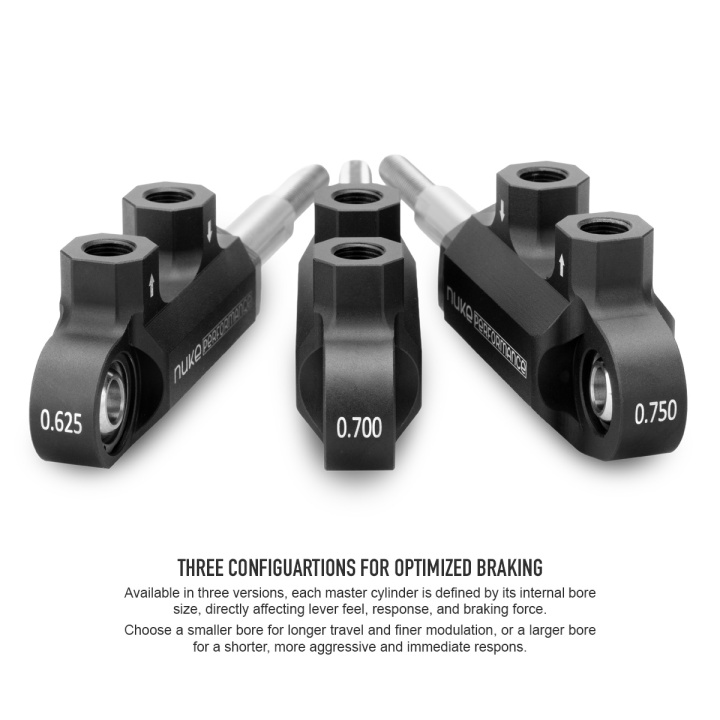

• Choosing the right bore size for your setup - available in 0.625 / 0.700 / 0.750 versions.
Selecting the correct bore size is key to achieving the brake feel you want from your DriftSpec Pro handbrake. The right choice depends on your setup, driving style, and personal preference — allowing you to fine-tune both response and modulation.
A smaller bore, such as 0.625" (5/8"), generates higher hydraulic pressure with less input force, resulting in a lighter pull and a more aggressive, responsive feel. This is the most popular choice for drifting.
A larger bore, such as 0.750" (3/4"), moves more fluid per stroke, requiring more input force but delivering a shorter, firmer lever travel with increased modulation. Best suited for longer lever setups, as shorter levers may feel too stiff.
The 0.700" (7/10") option sits in between, offering a balanced combination of pressure and control, providing shorter travel than the smaller bore without the increased effort of the larger option.
• Optimize performance and durability with our flexible brake hose kit with M10x1 threads on both ends.
Flexible lines must be used for inlet and outlet port plumbing. Nuke Performance offers hoses with M10x1 fittings on both ends, allowing the master cylinder to move freely without adding stress to fittings or hardlines, for improved durability and consistent performance.
Flexible Brake Hose Kit, M10x1 to M10x1 Part # : 850-10-201

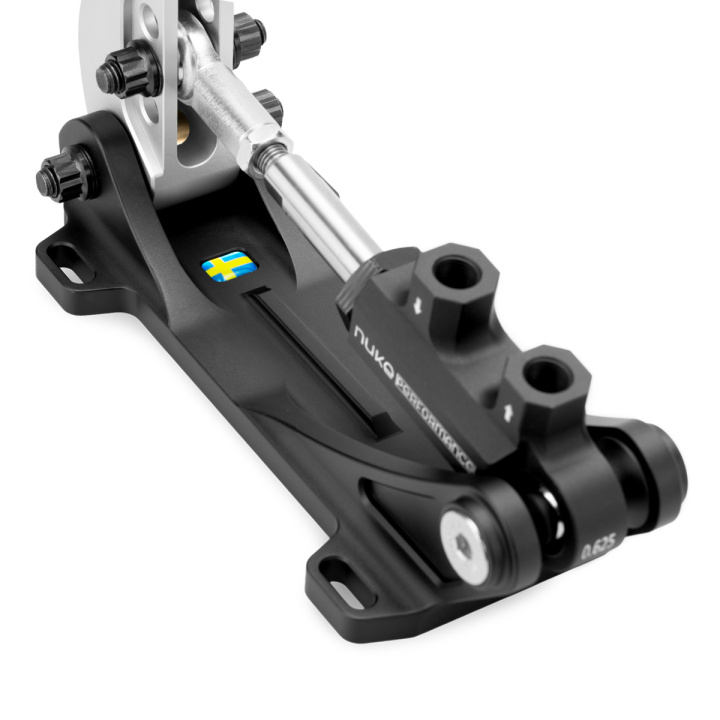

• These master cylinders from Nuke Performance are developed for DriftSpec Pro, but built for anything.
Developed for the Nuke Performance DriftSpec Pro Hydraulic Handbrakes, yet compatible with any spherical bearing-mounted setup. Engineered for precision, reliability, and absolute control, without compromise. A lightweight and low-profile choice that is a perfect fit for the DriftSpec Pro handbrakes.

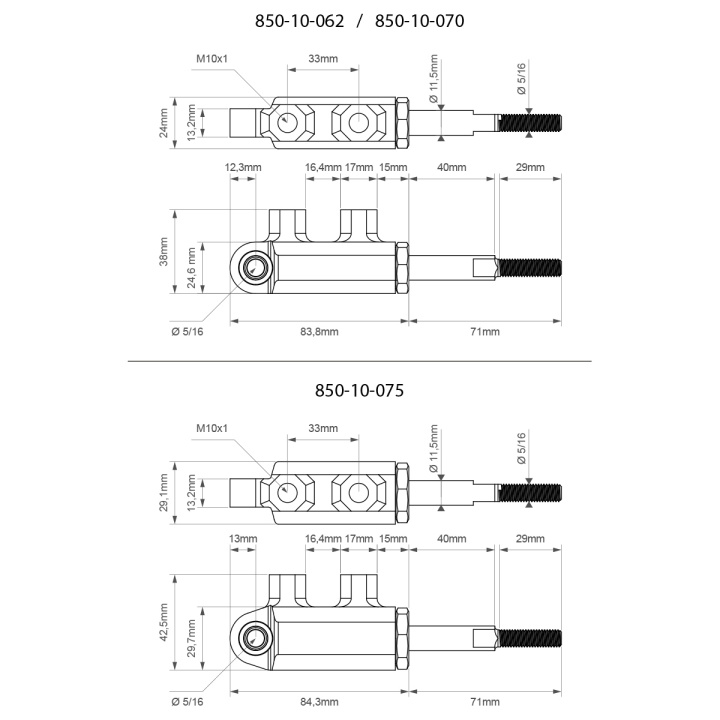

• Master Cylinders - Spherical Bearing Mount Specifications:
For more information about specifications, contact us directly.
| Application | DriftSpec Pro Hydraulic HandbrakeUniversal fitment, 5/16 connection |
| Design | SBM - Spherical Bearing-Mounted |
| Bore sizes | 0.625 (5/8") / 0.700 (7/10") / 0.750 (3/4") |
| Body material | Anodized aluminum body |
| Pushrod material | Stainless steel |
| Serviceability | Rebuildable/serviceable design |
| Inlet port thread | M10x1 * |
| Outlet port thread | M10x1 * |
| Pushrod thread | 5/16-24 UNF |
| Bearing size | 5/16" |
| Compatibility | Brake fluid / hydraulic brake systems |
| For motorsports use | YES, for motorsport use only |
| Weight | 158.0 g (5.58oz) |
| Hardware | Not included (head and nut sold separately) ** |
| Part # / EAN (0.625) | 850-10-062 / 7340209511284 |
| Part # / EAN (0.700) | 850-10-070 / 7340209511291 |
| Part # / EAN (0.750) | 850-10-075 / 7340209511307 |
* Flexible lines must be used for inlet and outlet port plumbing.
** No hardware included. Ball joint and lock nut are included with all DriftSpec Pro handbrakes from Nuke Performance.
• Accessories / Spare parts
• Master Cylinders - Spherical Bearing Mount includes:
1 x Master Cylinder of choice *
* The master cylinder is delivered without a ball joint and a lock nut. These components are included with DriftSpec Pro handbrakes from Nuke Performance and are not required separately when used as intended.
