Xtreme Clutch

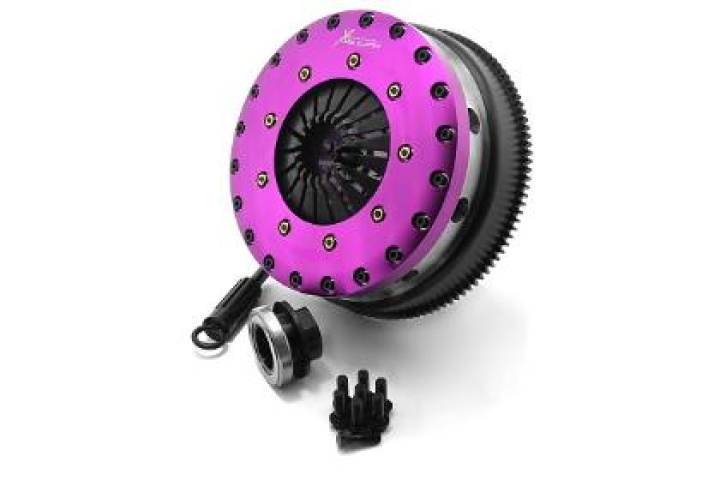

KTY23579-2P - Xtreme Clutch Conversion kit - TOYOTA JZ - BMW 10x35mm

Article nr:
xtcKTY23579-2P
|
(0 reviews)
Xtreme Clutch delivers ultra‑strong clutch kits for motorsport and tuned cars - twin‑plate options handle up to ~1000 Nm.
3371 EUR
Delivery:  2-4 business days
Warehouse stock:  0
Stock: 1

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • -2P

    The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

      Flat Diaphragm Rolled Diaphragm
    Clamping Force 1300kg 1300kg
    Torque Rating 1675Nm 1675Nm
    Bearing Contact Diameter 65mm FLAT BEARING
    Bearing Load (@ 48mm) 180kg 150kg
    Release Travel Required 7mm 7mm
    Assembly Mass (without flywheel) 7.8kg 7.8kg
    Disc Set Static Mass 1.75kg 1.75kg
    Friction Thickness New 7.47mm (0.305") 7.47mm (0.305")
    Friction Thickness Worn 7.24mm (0.285") 7.24mm (0.285")

    Product Features:

    • Push type billet alloy cover
    • Low pedal effort
    • 4140 Chromoly pressure & intermediate plates
    • Chromoly adapter ring
    • Low inertia
    • Carbon Friction Stable at extreme temperatures
    • Serviceable components
    • SFI certified design

    Passar till:

    Product video

    Technical specification

    Article nr:
    xtcKTY23579-2P
    Manufacture Partnumber: KTY23579-2P
  • Suitable for
  • Brand
  • Xtreme Clutch Xtreme Clutch has been at the forefront of performance clutch technology for decades. Our in house testing machinery and close bonds with motorsport has allowed us to do extensive testing on various combinations of material and disc designs to suit high performance and racing applications. The Xtreme Clutch name has become synonymous with high performance.
