Xtreme Clutch

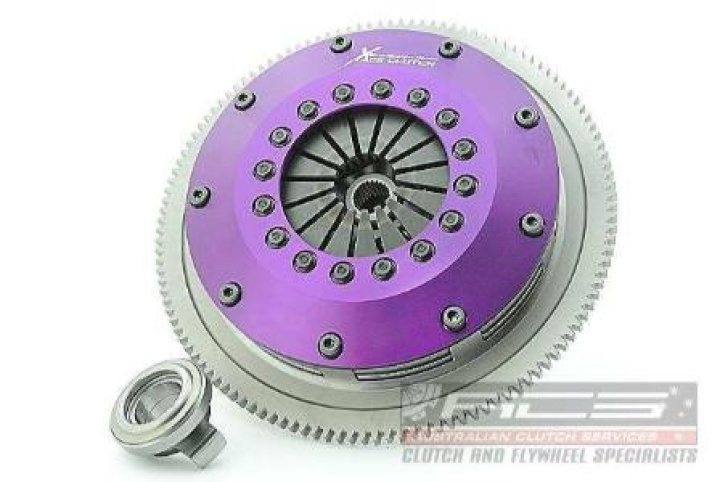

KSU20526-2E - Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Article nr:
xtcKSU20526-2E
|
(0 reviews)
Xtreme Clutch delivers ultra‑strong clutch kits for motorsport and tuned cars - twin‑plate options handle up to ~1000 Nm.
1510 EUR

Add to cart
Delivery:  2-4 weeks
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • Xtreme Motorsport 200mm twin plate
    The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

    The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

    Product Features:

    • Torque capacity 1200Nm
    • Kit contains everything you need for a successful installation + accessories
    • Rigid driven discs (individual hubs)
    • Push type billet alloy cover
    • 4140 Chromoly pressure & intermediate plates
    • Hardened steel wear posts
    • Low inertia
    • Serviceable components
    • SFI certified design
    Clamping Force 1000kg
    Torque Rating 1200Nm
    Bearing Contact Diameter 44-52mm
    Bearing Load (@ 48mm) 218kg
    Release Travel Required 6mm
    Assembly Mass (without flywheel) 7kg
    Disc Set Static Mass 1.75kg
    Friction Thickness New 7mm (0.275")
    Friction Thickness Worn 6.48mm (0.255")

    Passar till:

    - Toyota GT86 2.0 (ZN6AC_. ZN6BC_) 2012.03-2016.08 FA20, FA20D, 4U-GSE 1998 Petrol 147 kW 200 BHP (2012.03 - 2016.08)
    Subaru BRZ 2.0 (ZC6) 2016.08-2021 FA20C 1998 Petrol 152 kW 207 BHP (2016.08 - 2021)
    Subaru BRZ 2.0 (ZC6) 2012.06-2016.08 FA20D 1998 Petrol 147 kW 200 BHP (2012.06 - 2016.08)
    Toyota GT86 2.0 (ZN6EY_) 2016.08-2022 FA20D, 4U-GSE 1998 Petrol 152 kW 207 BHP (2016.08 - 2022)
    Subaru BRZ 2.4 (ZD8) 2021.10- FA24C, FA24D 2387 Petrol 174 kW 237 BHP (2021.10 -)
    Toyota GR86 2.4 (ZN8) 2022.05- FA24C, FA24D 2387 Petrol 174kW 237 BHP (2022.05 -)

    Product video

    Technical specification

    Article nr:
    xtcKSU20526-2E
    Manufacture Partnumber: KSU20526-2E
  • Suitable for
  • Brand
  • Xtreme Clutch Xtreme Clutch has been at the forefront of performance clutch technology for decades. Our in house testing machinery and close bonds with motorsport has allowed us to do extensive testing on various combinations of material and disc designs to suit high performance and racing applications. The Xtreme Clutch name has become synonymous with high performance.
