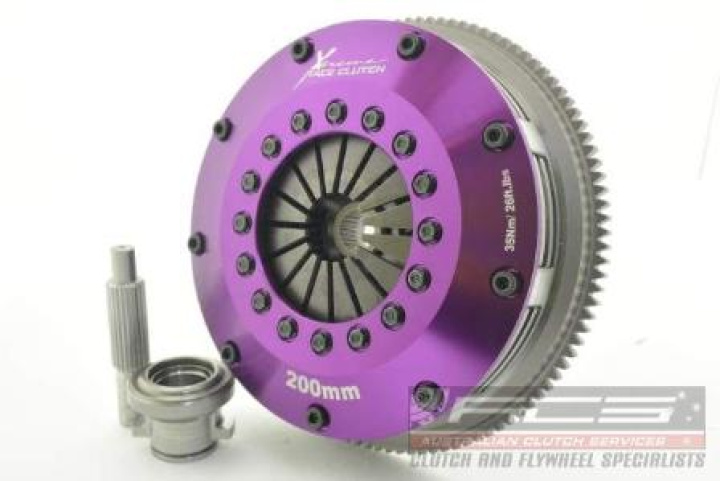

Xtreme Motorsport 200mm twin plate

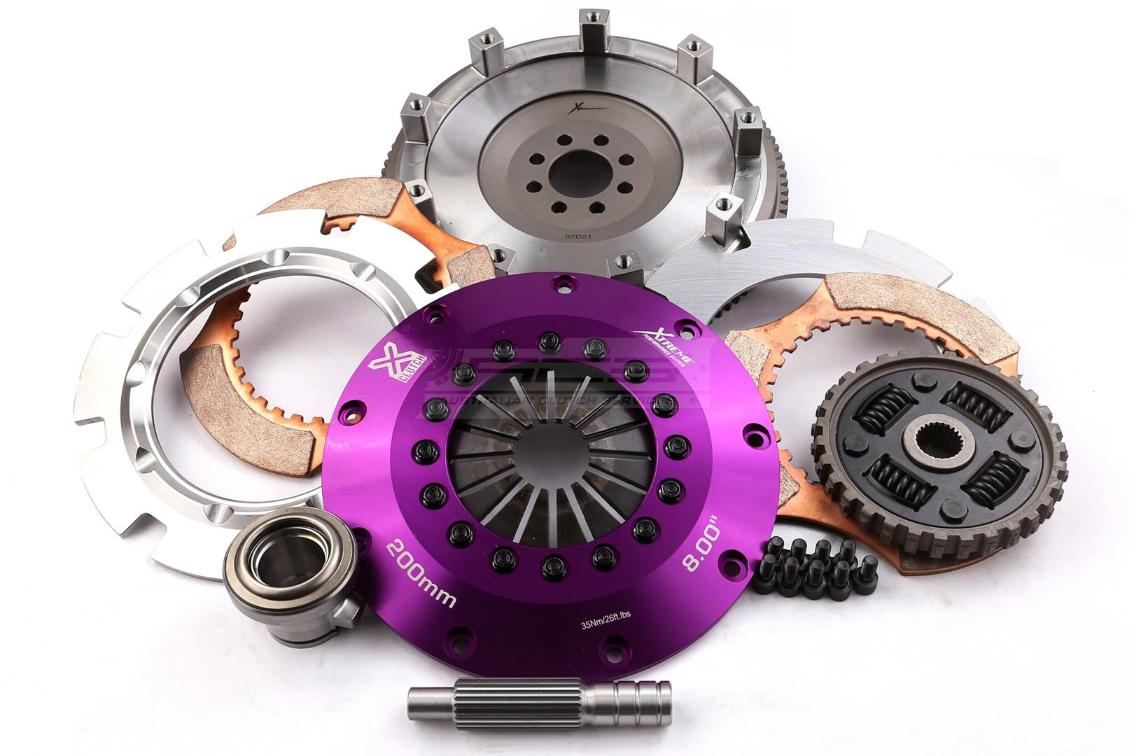

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Nissan 180SX S13 | 2.0 Turbo 1991.04-1994.03 SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03)Nissan 200SX S14 | 2.0 i 16V Turbo 1993.10-1999.12 SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)
Nissan Silvia S13 | 2.0 1991.01-1993.09 SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09)
Nissan 180SX S13 | 2.0 1992.01-1997.01 SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01)
Nissan Silvia S110 | 1.8 1994.04-1999.09 SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09)
Nissan Silvia S13 | 2.0 1991.01-1993.09 SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09)
