Xtreme Motorsport 200mm twin plate

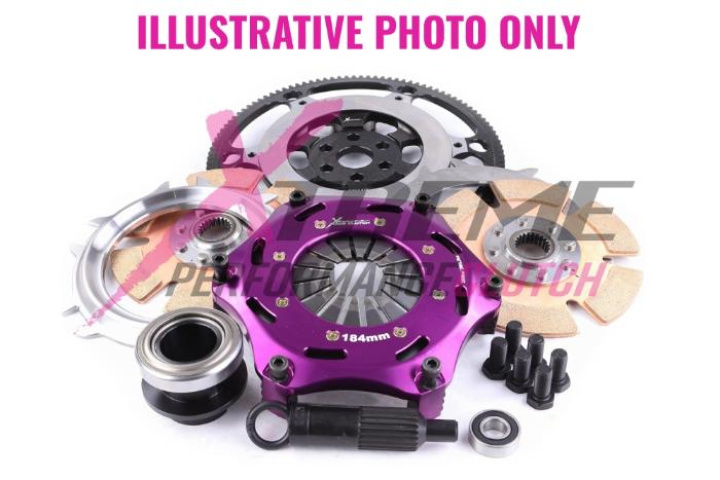

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Nissan Pick Up D21 | 2.4 i 12V 1992.04-1998.02 KA24E 2389 Petrol 91 kW 124 BHP (1992.04 - 1998.02)Nissan 240Z 2.4 (S30) 1970.10-1974.05 L24 2393 Petrol 110 kW 150 BHP (1970.10 - 1974.05)
Nissan Skyline C110 | 2.4 (HGC110) 1972.01-1978.03 L24 2393 Petrol 96 kW 131 BHP (1972.01 - 1978.03)
Nissan Skyline C110 | 2.4 (KHGC110) 1972.01-1978.03 L24 2393 Petrol 96 kW 131 BHP (1972.01 - 1978.03)
Nissan DATSUN 240 KGT 2.4 (C210) 1978.03-1981.07 L24 2393 Petrol 96 kW 131 BHP (1978.03 - 1981.07)
Nissan Skyline C210 | 2.4 1978.09-1981.07 L24 2393 Petrol 96 kW 131 BHP (1978.09 - 1981.07)
Nissan Skyline R30 |2.4 1981.03-1986.06 L24E 2393 Petrol 103 kW 140 BHP (1981.03 - 1986.06)
Nissan Skyline C210 | 2.4 EFI 1980.11-1981.03 L24E 2393 Petrol 94 kW 128 BHP (1980.11 - 1981.03)
Nissan Skyline R30 |2.4 1982.08-1983.11 L24E 2393 Petrol 94 kW 128 BHP (1982.08 - 1983.11)
Nissan 260Z 2.6 2+2 (S30) 1974.05-1979.12 L26 2565 Petrol 119 kW 162 BHP (1974.05 - 1979.12)
Nissan DATSUN 280 2.8 1977.06-1979.12 L28 2753 Petrol 108 kW 147 BHP (1977.06 - 1979.12)
Nissan Patrol K160 | 2.8 1980.07-1988.08 L28 2753 Petrol 88 kW 120 BHP (1980.07 - 1988.08)
Nissan Patrol W160 | 2.8 1980.07-1988.08 L28 2753 Petrol 88 kW 120 BHP (1980.07 - 1988.08)
Nissan Patrol K260 | 2.8 1986.05-1990.06 L28 2753 Petrol 88 kW 120 BHP (1986.05 - 1990.06)
Nissan Patrol K160 | 2.8 1980.07-1988.08 L28 2753 Petrol 89 kW 121 BHP (1980.07 - 1988.08)
Nissan DATSUN 280 2.8 1977.06-1979.12 L28 2753 Petrol 99 kW 135 BHP (1977.06 - 1979.12)
Nissan 280ZX,ZXT 2.8 (HGS130) 1978.10-1983.06 L28E 2753 Petrol 103 kW 140 BHP (1978.10 - 1983.06)
Nissan 280ZX,ZXT 2.8 (HGS130) 1980.02-1982.09 L28E 2753 Petrol 108 kW 147 BHP (1980.02 - 1982.09)
Nissan 280ZX,ZXT 2.8 (HGS130) 1982.01-1984.02 L28E 2753 Petrol 110 kW 150 BHP (1982.01 - 1984.02)
Nissan Pick Up D21 | 2.0 1985.09-1988.07 Z20 1952 Petrol 64 kW 87 BHP (1985.09 - 1988.07)
Nissan Pick Up D21 | 2.4 4x4 1985.09-1994.05 Z24 2389 Petrol 76 kW 103 BHP (1985.09 - 1994.05)
Nissan Pick Up D21 | 2.4 4WD 1988.01-1996.12 Z24 2389 Petrol 79 kW 107 BHP (1988.01 - 1996.12)
Nissan Pick Up D21 | 2.4 4WD 1986.03-1992.04 Z24i 2389 Petrol 74 kW 101 BHP (1986.03 - 1992.04)
Nissan Terrano WD21 | 2.4 i 4WD 1987.10-1993.02 Z24i 2389 Petrol 76 kW 103 BHP (1987.10 - 1993.02)
