KHN20523-1E - Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

Article nr:
xtcKHN20523-1E
|
(0 reviews)
Xtreme Clutch delivers ultra‑strong clutch kits for motorsport and tuned cars - twin‑plate options handle up to ~1000 Nm.
1390 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock: 0

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • -1E

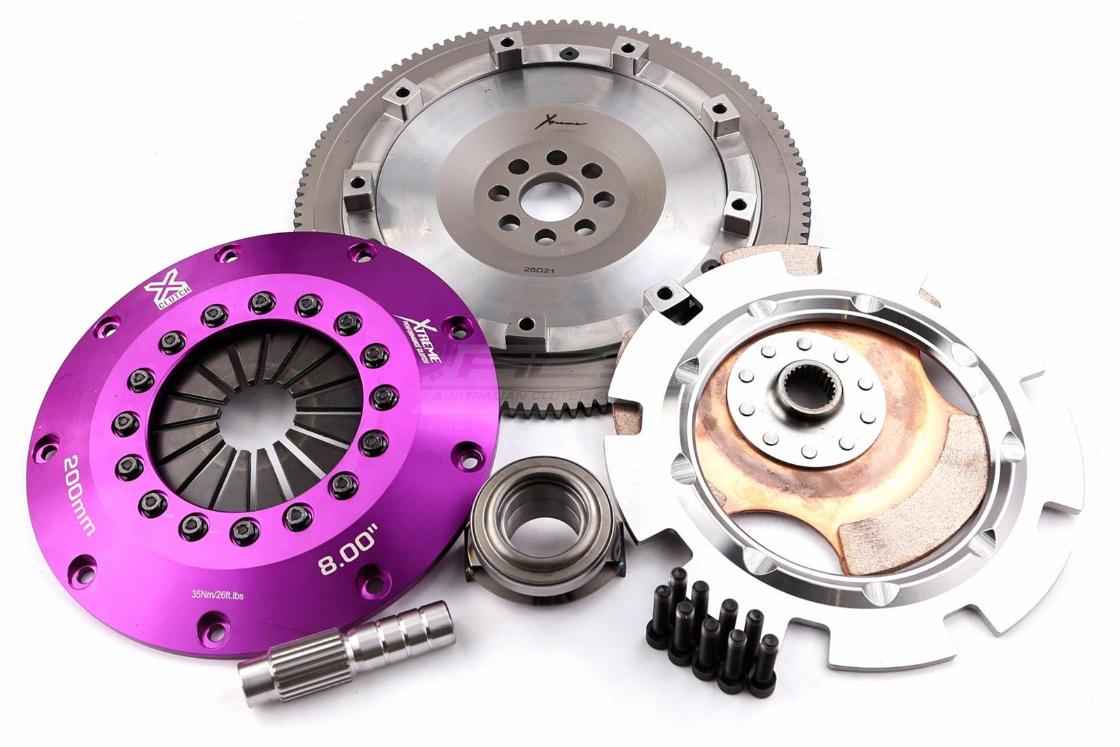

    The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kit’s consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

    Clamping Force 1000kg
    Torque Rating 900Nm
    Bearing Contact Diameter 44-52mm
    Bearing Load (@ 48mm) 218kg
    Release Travel Required 6mm
    Assembly Mass (without flywheel) 5.15kg
    Disc Set Static Mass 0.9kg
    Friction Thickness New 7mm (0.275")
    Friction Thickness Worn 5.7mm (0.235")

    Product Features:

    • Rigid driven disc
    • Push type billet alloy cover
    • 4140 Chromoly pressure plate
    • Hardened steel wear posts
    • Low inertia
    • Serviceable components
    • SFI certified design

    Passar till:

    - Honda Civic Gen. VII | 2.0 Type-R (EP3) 2001.09-2005.09 K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09)
    Honda Integra 2.0 (DC5) 2004.10-2007 K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - 2007)
    Honda Civic Gen. VIII | 2.0 i-VTEC Type R (FD2) 2007.08-2010.09 K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09)
    Honda Integra 2.0 Type-S 2004.10-2007.04 K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04)
    Honda Integra 2.0 16V Type-R (DC5) 2002.02-2007 K20Z1 1998 Petrol 162 kW 220 BHP (2002.02-2007)
    Honda Civic Gen. VIII | Type R (FN2) 2006.09-2012.01 K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 - 2012.01)
    Honda Civic Gen. VIII | 2.0 i-VTEC Type R (FN2) 2010.03-2010.12 K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12)

    Product video

    Technical specification

    Article nr:
    xtcKHN20523-1E
    Manufacture Partnumber: KHN20523-1E
  • Suitable for
  • Brand
  • Xtreme Clutch Xtreme Clutch has been at the forefront of performance clutch technology for decades. Our in house testing machinery and close bonds with motorsport has allowed us to do extensive testing on various combinations of material and disc designs to suit high performance and racing applications. The Xtreme Clutch name has become synonymous with high performance.
