KHN20522-1E - Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

Article nr:
xtcKHN20522-1E
|
(0 reviews)
Xtreme Clutch delivers ultra‑strong clutch kits for motorsport and tuned cars - twin‑plate options handle up to ~1000 Nm.
1226 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock: 0

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • -1E

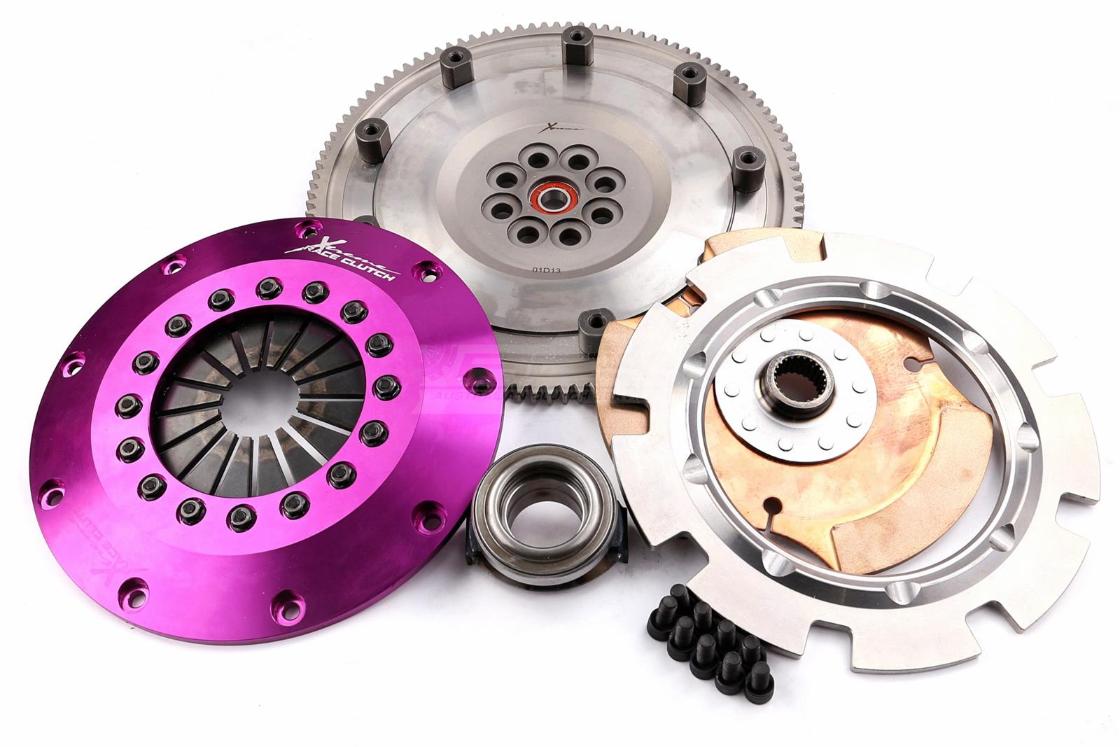

    The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kit’s consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

    Clamping Force 1000kg
    Torque Rating 900Nm
    Bearing Contact Diameter 44-52mm
    Bearing Load (@ 48mm) 218kg
    Release Travel Required 6mm
    Assembly Mass (without flywheel) 5.15kg
    Disc Set Static Mass 0.9kg
    Friction Thickness New 7mm (0.275")
    Friction Thickness Worn 5.7mm (0.235")

    Product Features:

    • Rigid driven disc
    • Push type billet alloy cover
    • 4140 Chromoly pressure plate
    • Hardened steel wear posts
    • Low inertia
    • Serviceable components
    • SFI certified design

    Passar till:

    - Honda Civic Gen. V | 1.6 VTi (EG9) 1991.10-1995.11 B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
    Honda Civic Gen. V | 1.6 VTi 16V (EG6) 1991.10-1995.11 B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
    Honda Civic Gen. VI | 1.6 VTi (EK4) 1995.11-2001.02 B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02)
    Honda Civic Gen. VI | 1.6 i Vtec (EM1) 1999.04-2000.12 B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12)
    Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11)
    Honda Integra 1.8 ESI (DB7) 1993.09-2001.08 B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08)
    Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11)
    Honda Integra 1.8 VTiR (DC2) 1993.07-1999.11 B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11)
    Honda Civic Gen. VI | 1.8 16V (MB6) 1997.01-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02)
    Honda Civic Gen. VI | 1.8 16V (MC2) 1998.04-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02)
    Honda Integra 1.8 Type-R (DC2) 1997.11-2001.10 B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10)
    Honda CR-V 2.0 16V 4WD (RD1. RD3) 1995.10-2001.12 B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12)
    Honda CR-V 2.0 16V 4WD (RD1. RD3) 1999.01-2002.02 B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02)
    Honda CR-V 2.0 (RD1) 1999.04-2002.02 B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02)

    Product video

    Technical specification

    Article nr:
    xtcKHN20522-1E
    Manufacture Partnumber: KHN20522-1E
  • Suitable for
  • Brand
  • Xtreme Clutch Xtreme Clutch has been at the forefront of performance clutch technology for decades. Our in house testing machinery and close bonds with motorsport has allowed us to do extensive testing on various combinations of material and disc designs to suit high performance and racing applications. The Xtreme Clutch name has become synonymous with high performance.
