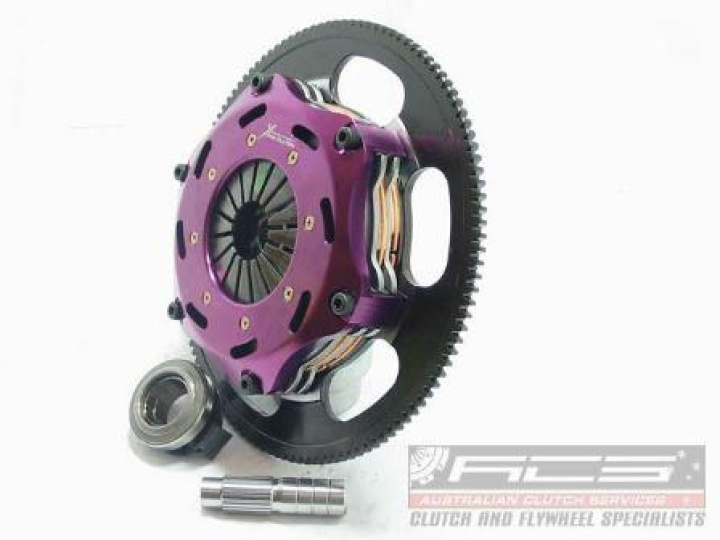

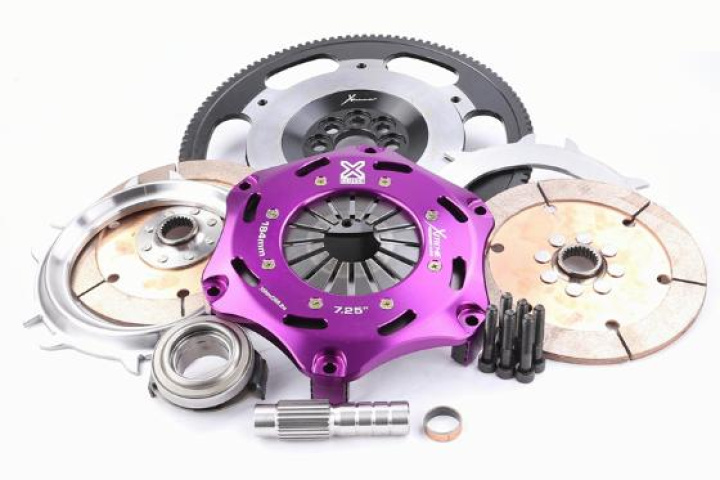

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Honda Civic Gen. VII | 2.0 Type-R (EP3) 2001.09-2005.09 K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09)Honda Integra 2.0 (DC5) 2004.10-2007 K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - 2007)
Honda Civic Gen. VIII | 2.0 i-VTEC Type R (FD2) 2007.08-2010.09 K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09)
Honda Integra 2.0 Type-S 2004.10-2007.04 K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04)
Honda Integra 2.0 16V Type-R (DC5) 2002.02-2007 K20Z1 1998 Petrol 162 kW 220 BHP (2002.02-2007)
Honda Civic Gen. VIII | Type R (FN2) 2006.09-2012.01 K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 - 2012.01)
Honda Civic Gen. VIII | 2.0 i-VTEC Type R (FN2) 2010.03-2010.12 K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12)
