KCR23683-2E - Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1800Nm

Article nr:
xtcKCR23683-2E
|
(0 reviews)
Xtreme Clutch delivers ultra‑strong clutch kits for motorsport and tuned cars - twin‑plate options handle up to ~1000 Nm.
2389 EUR
Delivery:  2-4 business days
Warehouse stock:  0
Stock: 4

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description

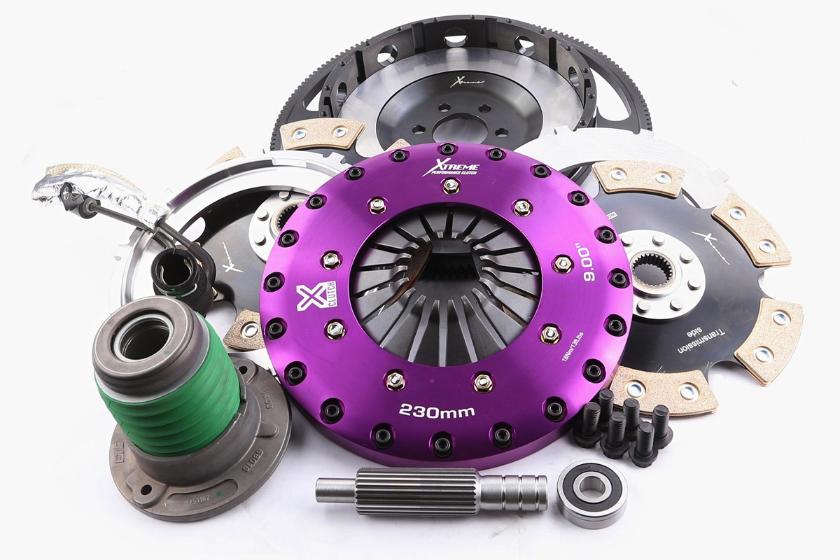

  • Xtreme Clutch 230mm twin plate kit
    The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

    The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

    Product Features:

    • Torque capacity 1800Nm
    • Kit contains everything you need for a successful installation + accessories
    • Push type billet alloy cover Low pedal effort
    • 4140 Chromoly pressure & intermediate plates
    • Chromoly adapter ring
    • Low inertia
    • Serviceable components
    • SFI certified design
    Flat Diaphragm Rolled Diaphragm
    Clamping Force 1300kg 1300kg
    Torque Rating 1800Nm 1800Nm
    Bearing Contact Diameter 65mm FLAT BEARING
    Bearing Load (@ 48mm) 180kg 150kg
    Release Travel Required 7mm 7mm
    Assembly Mass (without flywheel) 8.30kg 8.30kg
    Disc Set Static Mass 2.25kg 2.25kg
    Friction Thickness New 8mm (0.315") 8mm (0.315")
    Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

    Passar till:

    - Chevrolet Corvette C6 | 6.0 2004.09-2013.08 LS2(364CUV8) 5965 Petrol 298 kW 405 BHP (2004.09 - 2013.08)
    Chevrolet Corvette C6 | 6.2 2008.02-2013.08 LS3(376CUV8) 6162 Petrol 321 kW 437 BHP (2008.02 - 2013.08)
    Chevrolet Corvette C6 | 7.0 Z06 2006.03-2013.08 LS7 7008 Petrol 377 kW 512 BHP (2006.03 -2013.08)

    Product video

    Technical specification

    Article nr:
    xtcKCR23683-2E
    Manufacture Partnumber: KCR23683-2E
  • Suitable for
  • Brand
  • Xtreme Clutch Xtreme Clutch has been at the forefront of performance clutch technology for decades. Our in house testing machinery and close bonds with motorsport has allowed us to do extensive testing on various combinations of material and disc designs to suit high performance and racing applications. The Xtreme Clutch name has become synonymous with high performance.
