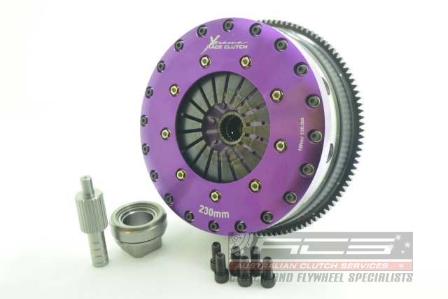

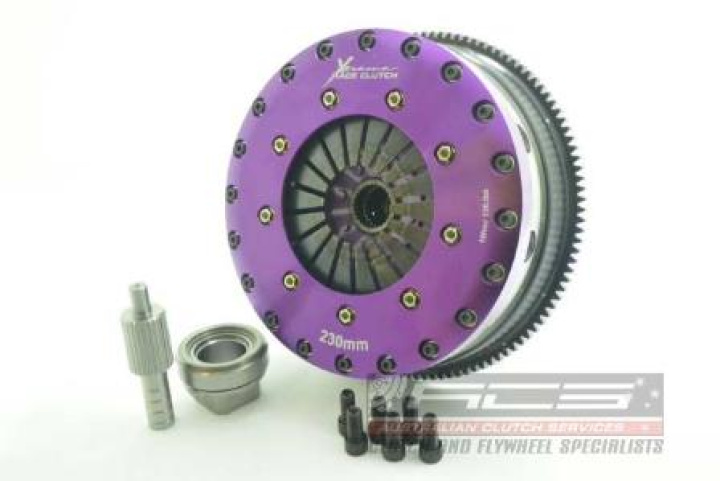

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- BMW 3-Series E90 | 335i 2006-2011 2979cc | 225KW | 306HP | N55 B30 A (2006-2011)BMW 3-Series E91 | 335i 2006-2012 2979cc | 225KW | 306HP | N55 B30 A (2006-2012)
BMW 3-Series E92 | 335i 2006-2013 2979cc | 225KW | 306HP | N55 B30 A (2006-2013)
BMW 3-Series E93 | 335i 2006-2013 2979cc | 225KW | 306HP | N55 B30 A (2006-2013)
BMW 3-Series E91 | 335Xi 2007-2008 2979cc | 225KW | 306HP | N55 B30 A (2007-2008)
BMW 3-Series E92 | 335Xi 2007-2010 2979cc | 225KW | 306HP | N55 B30 A (2007-2010)
BMW 1-Series E82 | 135i 2007-2013 2979cc | 225KW | 306HP | N55 B30 A (2007-2013)
BMW 3-Series E90 | 335i xDrive 2008-2011 2979cc | 225KW | 306HP | N55 B30 A (2008-2011)
BMW 3-Series E91 | 335i xDrive 2008-2012 2979cc | 225KW | 306HP | N55 B30 A (2008-2012)
BMW 1-Series E88 | 135i 2008-2013 2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
BMW 3-Series E92 | 335i xDrive 2008-2013 2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
BMW 5-Series F10 | 535i 2010-2016 2979cc | 225KW | 306HP | N55 B30 A (2010-2016)
BMW 5-Series F11 | 535i 2010-2017 2979cc | 225KW | 306HP | N55 B30 A (2010-2017)
BMW 3-Series F30, F80 | 335i 2011-2015 2979cc | 225KW | 306HP | N55 B30 A (2011-2015)
BMW 3-Series F30, F80 | 335i xDrive 2012-2015 2979cc | 225KW | 306HP | N55 B30 A (2012-2015)
BMW 3-Series F31 | 335i 2013-2015 2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW 3-Series F31 | 335i xDrive 2013-2015 2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW 3-Series F34 | 335i 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 4-Series F32, F82 | 435i 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 4-Series F33, F83 | 435i 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 4-Series F32, F82 | 435i xDrive 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 1-Series E82 | 135i 2007-2013 2979cc | 240KW | 326HP | N55 B30 A (2007-2013)
BMW 1-Series E88 | 135i 2008-2013 2979cc | 240KW | 326HP | N55 B30 A (2008-2013)
BMW 3-Series F30, F80 | 335i xDrive 2012-2013 2979cc | 240KW | 326HP | N55 B30 A (2012-2013)
BMW 1-Series E82 | 1M 2011.03-2012.06 2979cc | 250KW | 340HP | N54 B30 A (2011.03-2012.06)
BMW 3-Series F30, F80 | 335i xDrive 2013-2015 2979cc | 250KW | 340HP | N55 B30 A (2013-2015)
BMW 4-Series F32, F82 | 435i 2013-2016 2979cc | 250KW | 340HP | N55 B30 A (2013-2016)
