Xtreme Motorsport 200mm twin plate

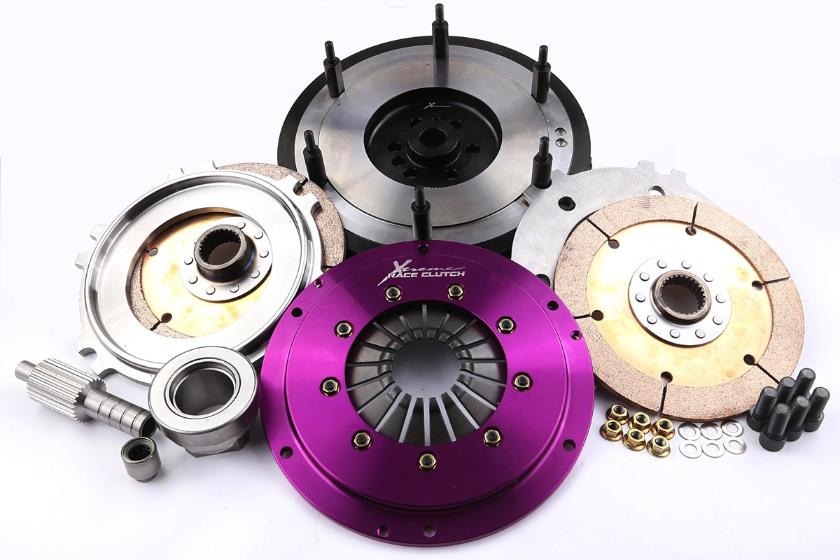

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- BMW 1-Series E82 | 135i 2007-2013 2979cc | 225KW | 306HP | N55 B30 A (2007-2013)BMW 1-Series E88 | 135i 2008-2013 2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
BMW 5-Series F10 | 535i 2010-2016 2979cc | 225KW | 306HP | N55 B30 A (2010-2016)
BMW 5-Series F11 | 535i 2010-2017 2979cc | 225KW | 306HP | N55 B30 A (2010-2017)
BMW 3-Series F30, F80 | 335i 2011-2015 2979cc | 225KW | 306HP | N55 B30 A (2011-2015)
BMW 3-Series F30, F80 | 335i xDrive 2012-2015 2979cc | 225KW | 306HP | N55 B30 A (2012-2015)
BMW 3-Series F31 | 335i 2013-2015 2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW 3-Series F31 | 335i xDrive 2013-2015 2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW 3-Series F34 | 335i 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 4-Series F32, F82 | 435i 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 4-Series F33, F83 | 435i 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 4-Series F32, F82 | 435i xDrive 2013-2016 2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW 1-Series E82 | 135i 2007-2013 2979cc | 240KW | 326HP | N55 B30 A (2007-2013)
BMW 1-Series E88 | 135i 2008-2013 2979cc | 240KW | 326HP | N55 B30 A (2008-2013)
BMW 3-Series F30, F80 | 335i xDrive 2012-2013 2979cc | 240KW | 326HP | N55 B30 A (2012-2013)
BMW 1-Series E82 | 1M 2011.03-2012.06 2979cc | 250KW | 340HP | N54 B30 A (2011.03-2012.06)
BMW 3-Series F30, F80 | 335i xDrive 2013-2015 2979cc | 250KW | 340HP | N55 B30 A (2013-2015)
BMW 4-Series F32, F82 | 435i 2013-2016 2979cc | 250KW | 340HP | N55 B30 A (2013-2016)
