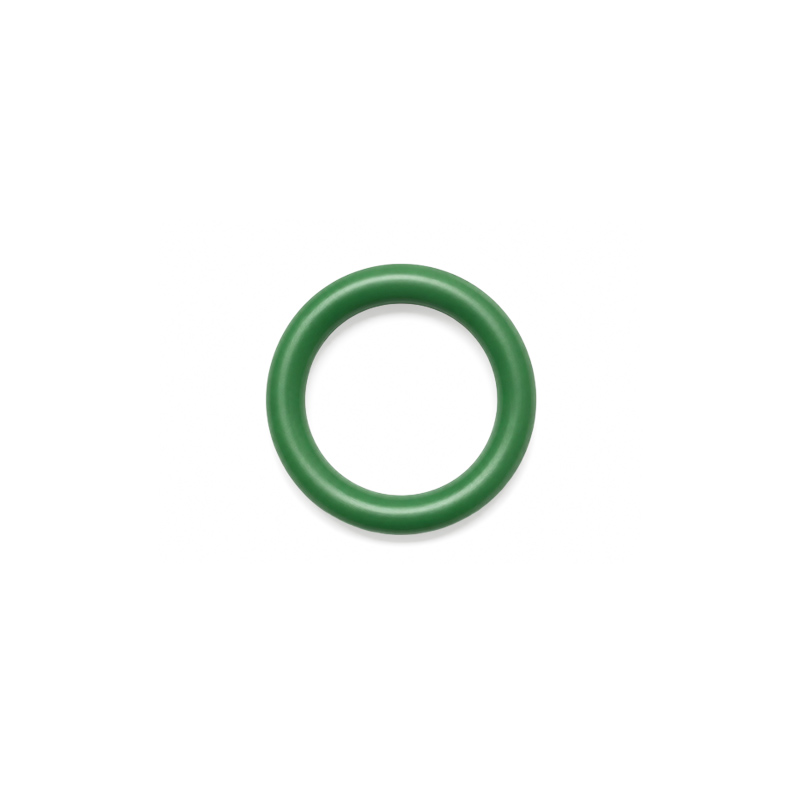

Replacement O-ring for 14mm injectors such as Bosch, Siemens, SMP, Weber, Denso, Deatschwerks, and more.
The most common O-ring for 14mm injectors. It is made out of Viton (FPM), which makes it safe for all types of fuel, including alcoholic fuels such as E85. Recommended to be replaced during the service of the injectors.
Outer diameter : 14.58 mm (0.574")
Inner diameter : 7.52 mm (0.296")
Cross section : 3.53 mm (0.139")
Material : Viton (FPM)
Hardness : 75 Shore A
Color : Green
Make sure to always use O-ring lubricant, such as the E85-safe Nuke Performance ProLube+ (available here), during O-ring assembly.
Nuke Performance ProLube+ 1ml Part # : 320-01-101
Nuke Performance ProLube+ 500ml Part # : 320-01-102
Quantity : 1pc
