HC6-XXR6 ACT MaXX/Race Rigid 6 Pad Kit

Name: HC6-XXR6 ACT MaXX/Race Rigid 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actHC6-XXR6
Price: 829 EUR
Availability: InStock

Article nr:

actHC6-XXR6

Recommended for race use only. Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, increased gear rattle.

829 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
HC6-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: MaXX
Release Bearing Included: Yes
Clutch Disc Diameter: 212 MM
Clutch Disc Diameter: 8.3 IN
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 0.875 IN
Alignment Tool Included: Yes
Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
Product Weight (lbs.): 10.4
Title: ACT MaXX/Race Rigid 6 Pad Kit
Torque Capacity (ft/lbs.): 420
Torque Capacity Over OE: 173%

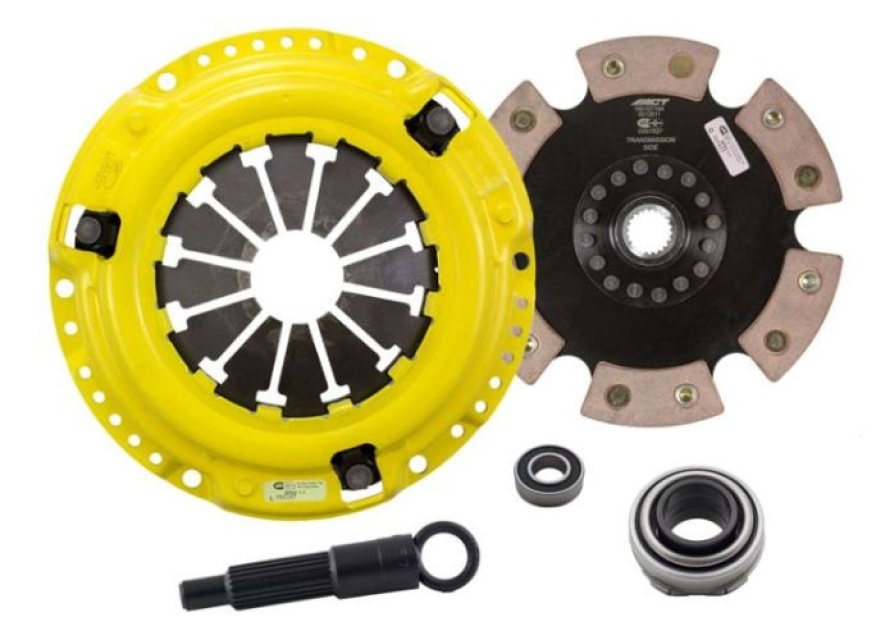

Kit includes:
6212011 ACT 6 Pad Rigid Race Disc
AT57 ACT Alignment Tool
H023XX ACT MaXX Xtreme Pressure Plate
PB1002 ACT Pilot Bearing
RB427 ACT Release Bearing
Kitet passar:
Honda Civic 1987-1992 1.5L L4 1493cc (D15B)
Honda Civic 1987-1992 1.4L L4 1396cc GLGLX (D14A1)
Honda CRX 1987-1992 1.5L L4 1493cc (D15B)
Honda CRX 1987-1992 1.4L L4 1396cc GLGLX (D14A)
Honda Civic 1987-1992 1.6L L4 1590cc (D16A8D16A9D16ZC)
Honda CRX 1987-1992 1.6L L4 1590cc (D16A8D16A9D16ZC)
Product video

Technical specification

Article nr:
actHC6-XXR6

Manufacture Partnumber: HC6-XXR6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
