HC4-XTG6 ACT XT/Race Sprung 6 Pad Kit

Name: HC4-XTG6 ACT XT/Race Sprung 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actHC4-XTG6
Price: 816 EUR
Availability: InStock

Article nr:

actHC4-XTG6

Recommended for high horsepower street or race use. Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

816 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
HC4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 212 MM
Clutch Disc Diameter: 8.3 IN
Disc Material: Ceramic
Input Spline Quantity: 20
Input Shaft Diameter: 0.875 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 11.2
Title: ACT XT/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 380
Torque Capacity Over OE: 148%

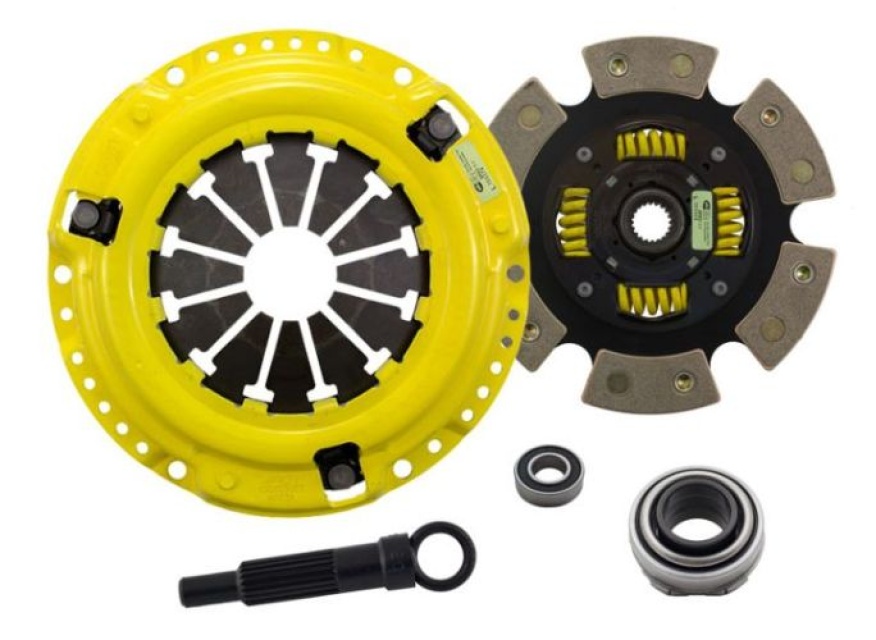

Kit includes:
6212104 ACT 6 Pad Sprung Race Disc
AT20 ACT Alignment Tool
H023X ACT Xtreme Pressure Plate
PB1002 ACT Pilot Bearing
RB427 ACT Release Bearing
Kitet passar:
Honda Civic 1987-1992 1.5L L4 1493cc (D15B)
Honda Civic 1987-1992 1.4L L4 1396cc GLGLX (D14A1)
Honda CRX 1987-1992 1.5L L4 1493cc (D15B)
Honda CRX 1987-1992 1.4L L4 1396cc GLGLX (D14A)
Honda Civic 1987-1992 1.6L L4 1590cc (D16A8D16A9D16ZC)
Honda CRX 1987-1992 1.6L L4 1590cc (D16A8D16A9D16ZC)
Product video

Technical specification

Article nr:
actHC4-XTG6

Manufacture Partnumber: HC4-XTG6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
