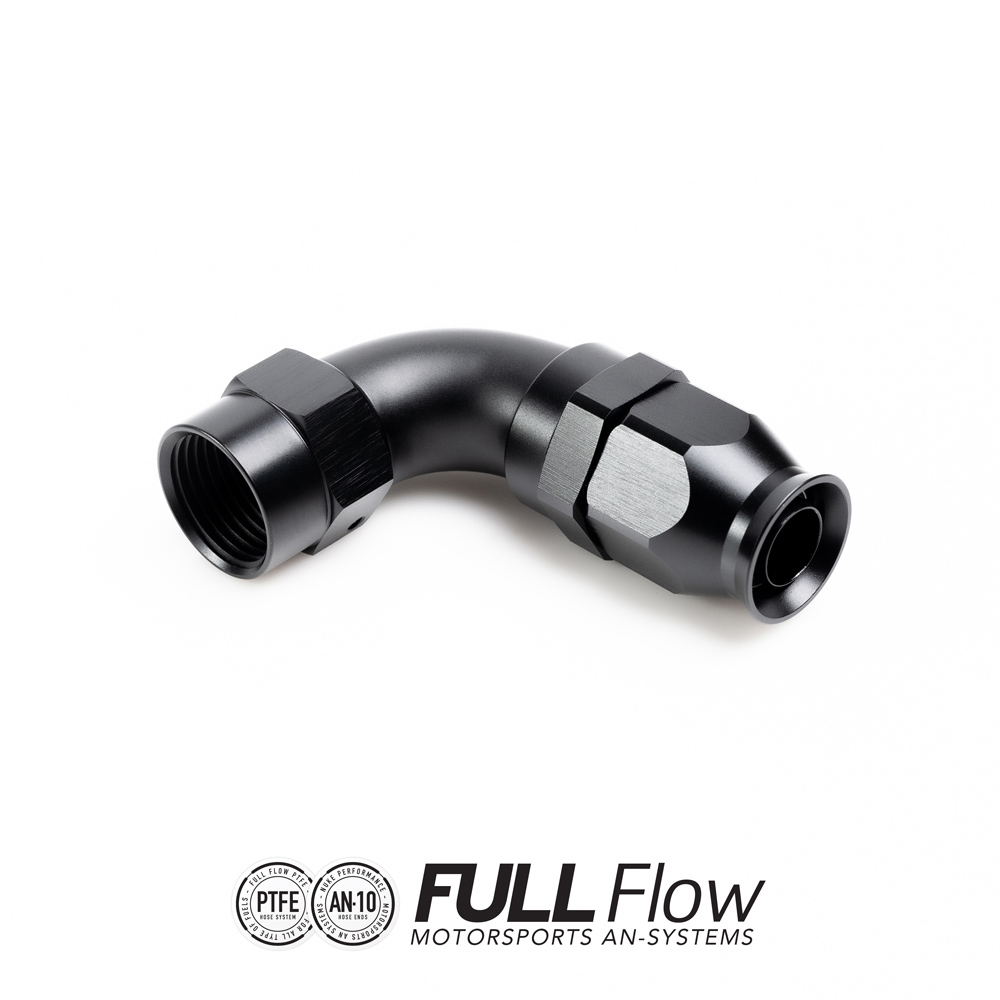

Nuke Performance Full-Flow PTFE Hose End Fittings. Available in AN-6, AN-8, AN-10, and AN-12. High quality, lightweight, full flow hose end fittings for PTFE lined fuel hose.
Nuke Performance offers a wide range of hose ends. With the PTFE lineup, you get a perfect solution for all types of fuels, including alcoholic fuels such as ethanol.
• Safe for all type of fuels, including ethanol
• For Nuke Performance Full-Flow PTFE fuel hose
• Available in AN-6 / AN-8 / AN-10 / AN-12

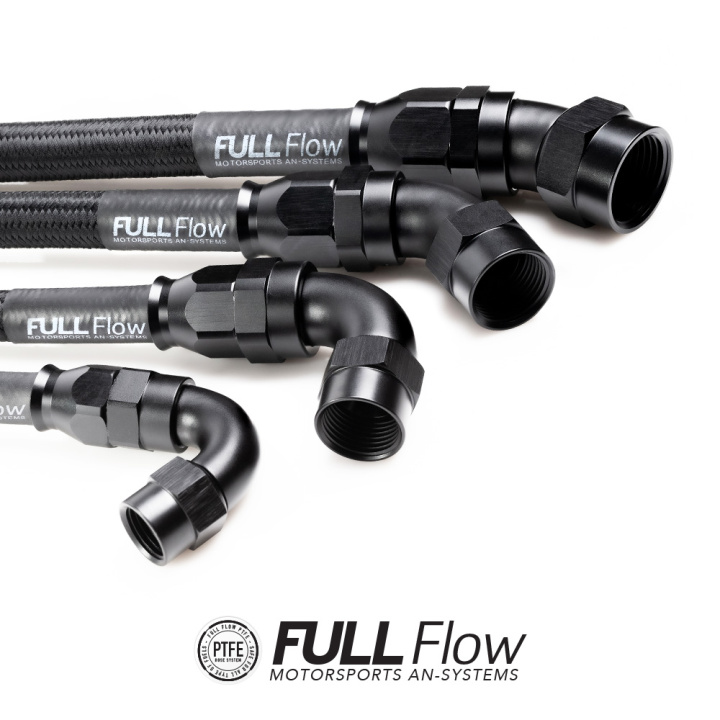

• Straight / 30 / 45 / 60 / 90 / 120 / 150 / 180 degree

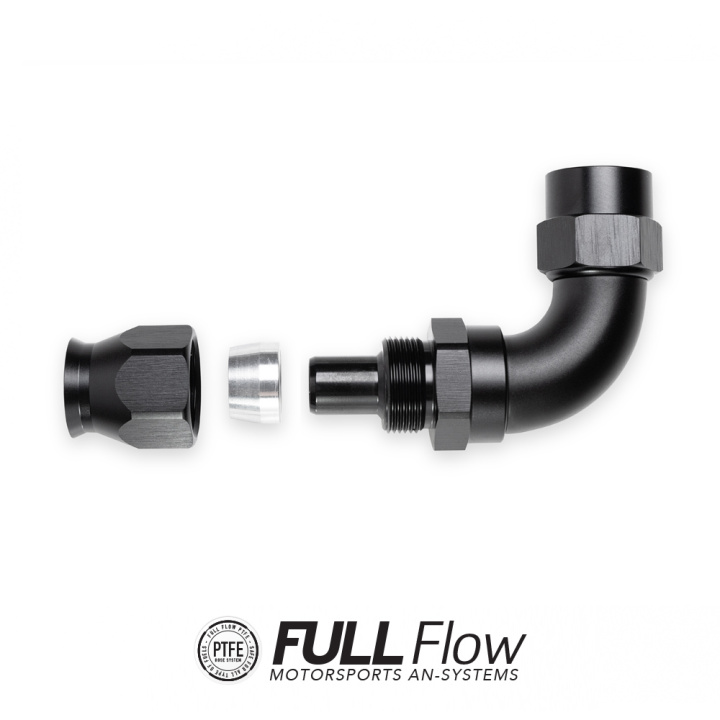

• Aluminum olive insert included with all hose ends
• Much longer life span than an ordinary fuel hose
The wide selection of hose ends from Nuke Performance is of the highest possible quality and is available in AN-6 to AN-12 size and in a variety ranging from straight to 180-degree versions. The Full-Flow PTFE fuel hose works as inexpensive insurance for your injectors, filters, and fuel pumps.

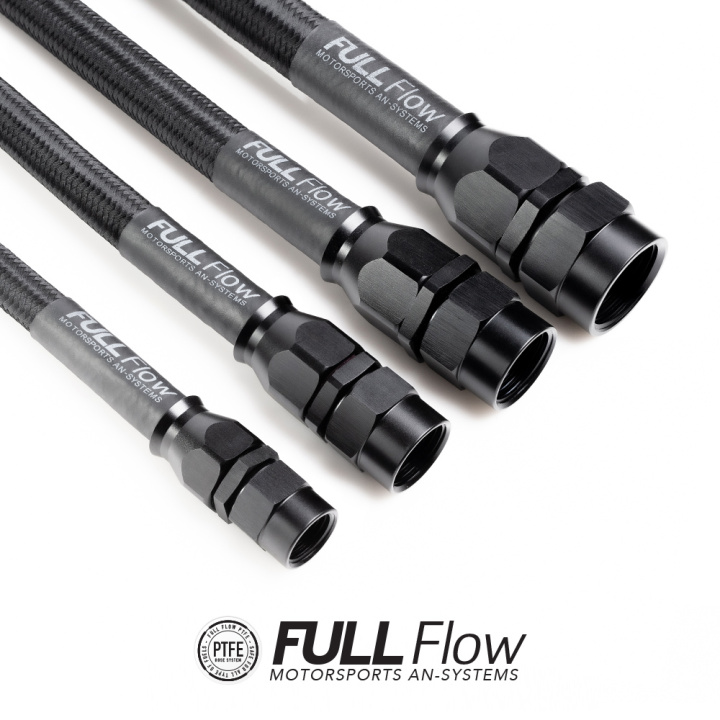

• Black nylon braided PTFE lined fuel hose for motorsports
The inner Teflon liner withstands all types of fuels, including alcoholic fuels such as ethanol, methanol, and race fuels. The PTFE fuel hose from Nuke Performance has a much longer life span, as it won´t degrade in the same way that the usual nitrile rubber fuel hose does over time. This protects your injectors, fuel filters, and in the long run, your fuel pumps from getting jammed and harmed by the dissolved interior of nitrile fuel hoses. The black nylon braided PTFE-lined fuel hose from Nuke Performance is available in various sizes.
Black Nylon PTFE Stainless Braided Fuel Hose : Find our range of PTFE fuel hose here
• The PTFE liner inside the fuel hose acts as a vapor barrier
The Nuke Performance PTFE fuel hose has an internal Teflon (PTFE) liner that acts like a vapor barrier when running all types of fuels. This becomes especially useful when running alcoholic fuels, which otherwise often go through a traditional nitrile or rubber fuel hose. This comes in handy when you want to run the fuel hoses within the driver's compartment, as well as in your workshop between races and racing seasons.
• Outstanding flow capacity and extended life for motorsports
The Nuke Performance Full Flow PTFE lineup uses a full-flow design that lets you design your fuel system with minimum flow loss. With its three-layered design, it has a much smaller outer diameter than an ordinary nitrile fuel hose. The PTFE liner prevents the fuel hose from hardening and does not fracture or crack. This helps to prevent fuel leakage and the smell that would occur when running an ordinary nitrile fuel hose.
AN-6 Full Flow PTFE Fuel Hose Part # : 820-02-106 - 820-02-606
AN-8 Full Flow PTFE Fuel Hose Part # : 820-02-108 - 820-02-608
AN-10 Full Flow PTFE Fuel Hose Part # : 820-02-110 - 820-02-610
AN-12 Full Flow PTFE Fuel Hose Part # : 820-02-112 - 820-02-612
• Developed upon high demands from worldwide motorsports
Co-developed with worldwide motorsports teams, this lineup of hose ends and fuel hose is ready to give you maximum quality even in demanding conditions. The Full Flow range of hose ends is made with the same hallmark as all other parts in the lightweight Nuke Performance motorsports range. There is no substitute for the quality of Nuke Performance!
• A wide variation of tools and accessories
To make your hose end and fuel setup installation as trouble-free as possible, Nuke Performance offers a wide variety of handy tools and accessories for fuel hose assembly. The adjustable aluminum wrench with its V-shape will revolutionize your hose end assembly.
Adjustable Aluminum AN Wrench AN-4 to AN-16 Part # : 700-30-105
Aluminum Vise Jaws for AN fittings Part # : 700-30-201
AN Aluminum Wrenches AN-6/8/10/12 Part # : 700-30-101/2/3/4
Spare Aluminum Olive inserts Part # : 810-20-106/8/10/12
Nuke Performance Full Flow PTFE Hose End Fittings are available in AN-6, AN-8, AN-10, and AN-12. The matching braided PTFE fuel hose is available in pre-cut lengths of 1m, 2m, 4m, and 6m (3-20ft).
• Nuke Performance PTFE Hose End / Fuel Hose Specifications
For more information about specifications, view the product manual.
| Hose End Series # | 810-01-106 - 810-18-112 |
| Fuel Hose Series # | 820-02-106 - 820-02-612 |
| Available Sizes | AN-6 / AN-8 / AN-10 / AN-12 |
| Available Versions | Straight / 30 / 45 / 60 / 90 / 120 / 150 / 180 |
| Fuel compatibility | Gasoline, Methanol, Ethanol, E85, Racefuel, Diesel, Oil |
| Hose End Material | Anodized aluminum housing and olive |
| Fuel Hose Inner Liner | PTFE (Teflon) inner liner |
| Fuel Hose Braiding | Stainless steel and nylon |
| Temperature Range | -70°C to 250°C (-94°F to 480°F) |
| Conductive Inner Liner | YES |
| For Motorsport Use | YES |
