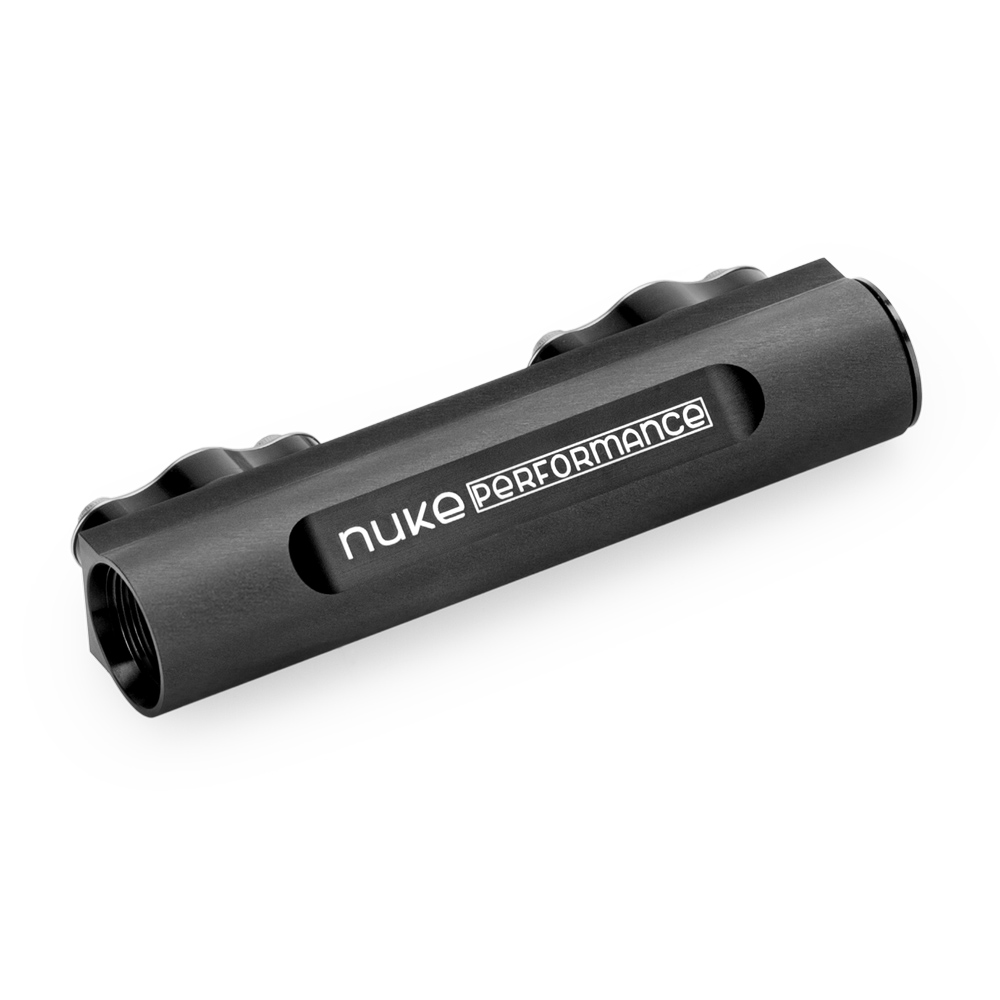

Nuke Performance second-generation Fuel Log 4-port collector, AN-8 ORB. Space-efficient manifold that allows flexibility when routing a fuel system with in-line fuel pumps or filters.

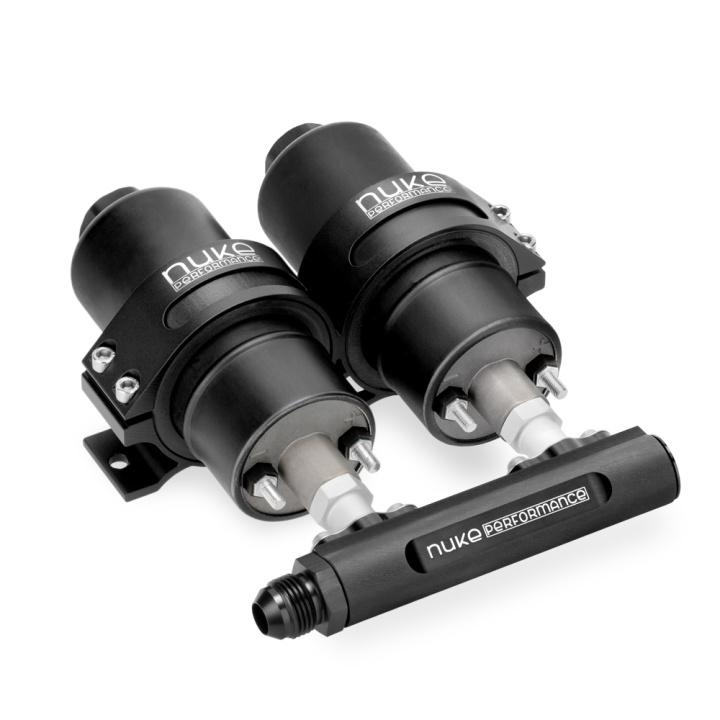

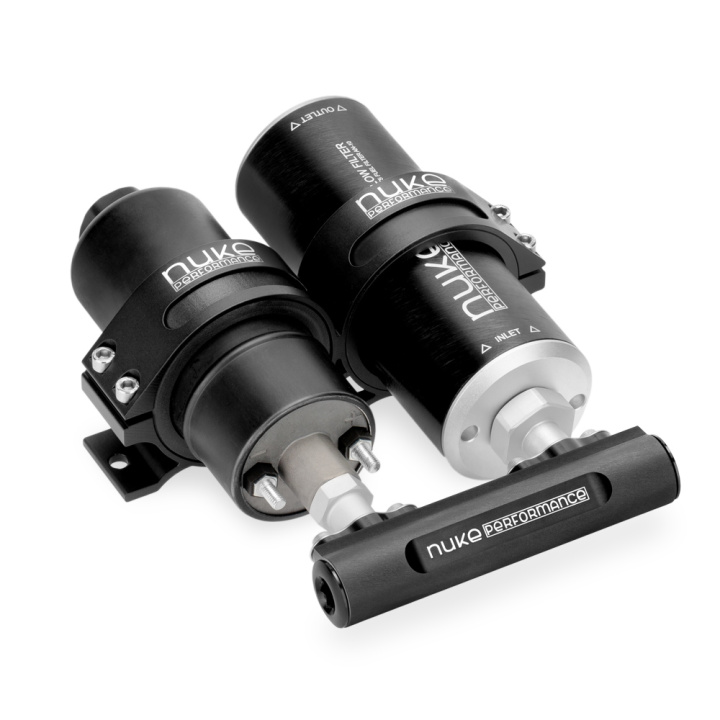

The fuel log from Nuke Performance makes it easy to combine two in-line fuel pumps into one single AN-8 ORB outlet. You can also choose a single fuel pump that routes back into an in-line fuel filter, making this a space-efficient and safe setup.
• AN-8 ORB outlets on each end of the fuel log
• Choose between various-sized inlet adapters
• Lightweight and space-efficient design
• Safe for all types of fuels, including E85
• Delivered with 1x AN-8 ORB Plug

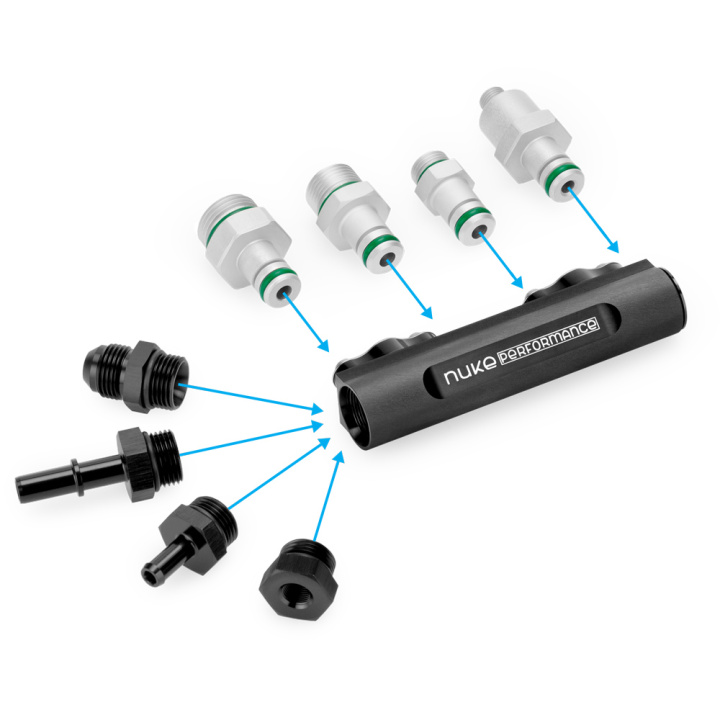

The updated new generation fuel log 4-port collector, AN-8 ORB from Nuke Performance is delivered with 1x AN-8 ORB Plug for one of the outlet ports, the open AN-8 ORB port offers a wide range of outlet options to choose from (available here). The open AN-8 port needs to be plugged if using one of the setups where you use one fuel pump in combination with one fuel filter.
• Wide range of adapters for various setups such as Bosch 044, Deatschwerks DW350il, and Walbro GSL392 in-line fuel pumps.

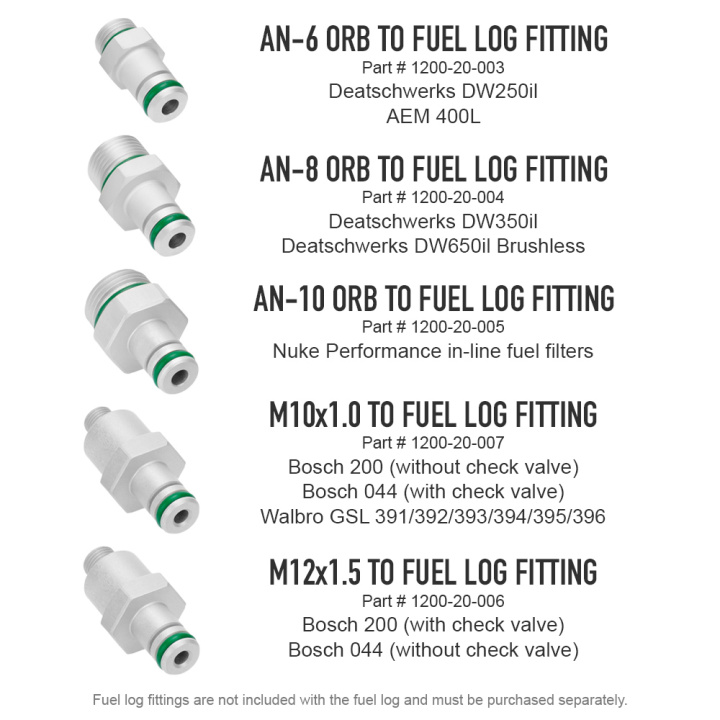

Choose between the different inlet adapters offered in AN-6 ORB, AN-8 ORB, AN-10 ORB, M10x1.0mm, and M12x1.5mm. Choose the preferred sized fitting for both the fuel log inlet ports when placing your order.
| AN-6 ORB 1200-20-003 | Deatschwerks DW250ilAEM 400L |
| AN-8 ORB 1200-20-004 | Deatschwerks DW350ilDeatschwerks DW650il Brushless |
| AN-10 ORB 1200-20-005 | Nuke Performance in-line fuel filters |
| M10x1.0 1200-20-007 | Bosch 200 (without check valve)Bosch 044 (with check valve)Walbro GSL 391/392/393/394/395/396 |
| M12x1.5 1200-20-006 | Bosch 200 (with check valve)Bosch 044 (without check valve) |
Fuel log fittings are not included with the fuel log and must be purchased separately (available here). Make sure to select the right option when placing your order.
• The fuel log in combination with the lightweight Nuke Performance brackets ensures a tight yet effective fuel setup.

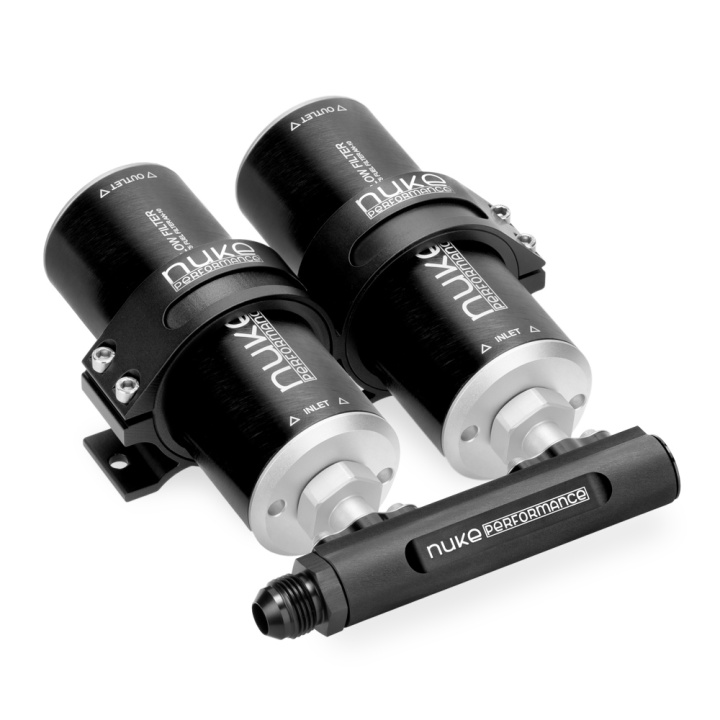

Combined with the universal bracket from Nuke Performance that offers various inserts to house popular fuel pumps and the Nuke Performance Slim in-line filter lineup, the fuel log gives you several different setups to choose from when routing your fuel system.
Dual Universal Bracket (with Bosch 044 inserts) Part # : 950-02-201
Dual Universal Bracket (with fuel filter inserts) Part # : 950-02-212
Single insert for Walbro GSL392 (43mm) Part # : 960-01-101
Single insert for Nuke fuel filter Slim-series (55mm) Part # : 960-01-102
Single insert for Bosch 044 (60mm - included with bracket) Part # : 960-01-103
Single insert for Deatschwerks DW250il (52mm) Part # : 960-01-104
• Nuke Performance Fuel Log 4-port collector, AN-8 ORB Specifications :
For more information about specifications, contact us directly.
| Inlet ports | x2 injector sized ports * |
| Outlet ports | AN-8 ORB - 1x Plug included |
| Inlet ports Center to Center | 70.0mm (2.75") |
| Length | 115.0mm (4.53") |
| Weight | 95g (3.35oz) |
| For motorsports use | YES |
| Fuel compatibility | Gasoline, Petrol, Methanol, Ethanol |
| Replaces old part # | 700-01-110, 700-01-111, 100-10-202, 100-10-203,100-10-204, 100-10-205, 100-10-206 ** |
| Part # | 125-01-201 |
| EAN | 7340209501391 |
* fuel log fittings are not included with the fuel log and must be purchased separately.
** old 3/4 UNF generation which is no longer available for purchase.

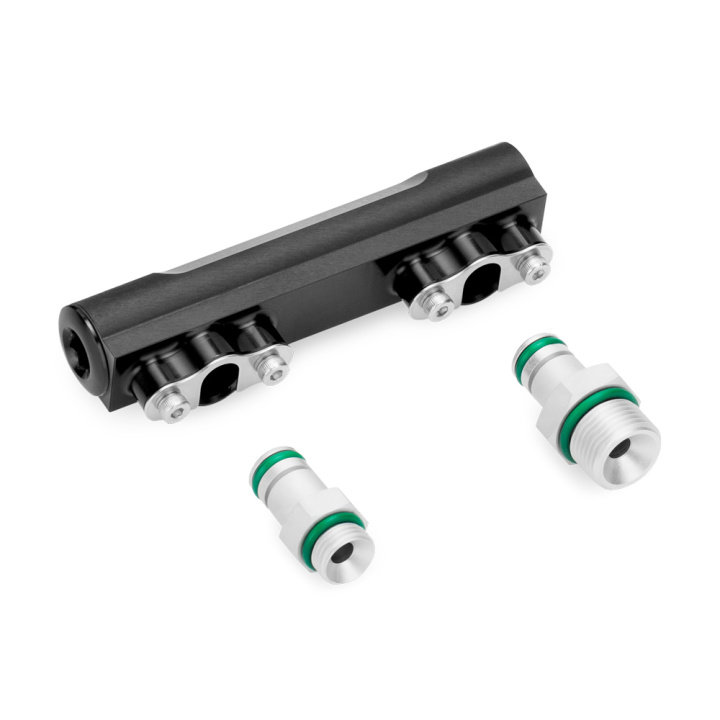

• Nuke Performance Fuel Log 4-port collector, AN-8 ORB includes :
1 x Fuel log AN-8 ORB body
2 x Stainless steel mounting clips
4 x MC6S M4x6mm stainless steel bolts
1 x AN-8 ORB Plug
