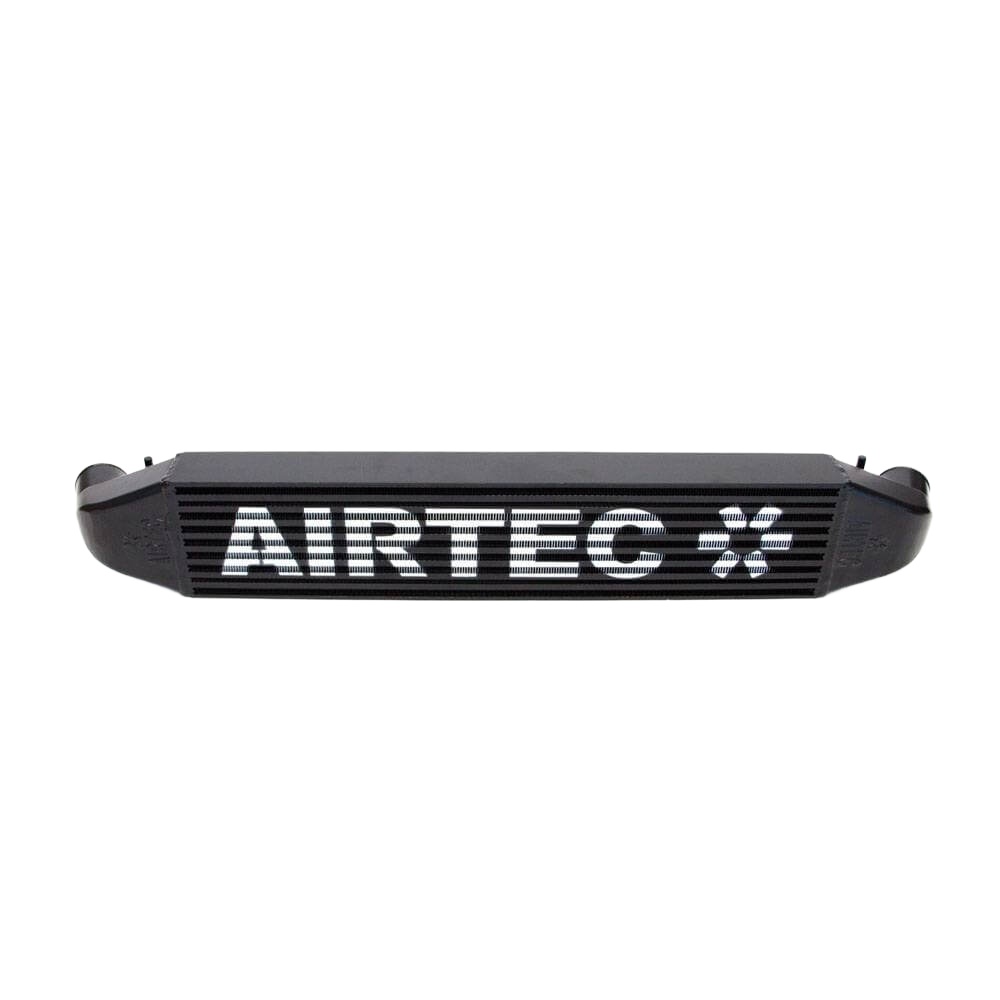

Ford Fiesta ST180 Mk7 2008-2017 Intercooler Kit Stage 1 AirTec
Comes in black and with no logo if not specified!
As part of our expanding Fiesta ST180 product range, AIRTEC Motorsport is proud to launch our Stage 1 intercooler upgrade suitable for track or fast road use.
In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
DYNO TESTED
Fast Ford magazine intercooler test – measured in degrees C
Standard intercooler:
- Run 1 Intake temp turbo into intercooler 140 – out of intercooler into engine 85
- Run 2 Intake temp turbo into intercooler 131 – out of intercooler into engine 92
- Run 3 Intake temp turbo into intercooler 140 – out of intercooler into engine 97
AIRTEC Motorsport intercooler:
- Run 1 Intake temp turbo into intercooler 140 – out of intercooler into engine 31
- Run 2 Intake temp turbo into intercooler 150 – out of intercooler into engine 38
- Run 3 Intake temp turbo into intercooler 152 – out of intercooler into engine 39
Dimensions OEM Intercooler
- Width: 690mm
- Height: 130mm
- Depth: 50mm
- Capacity: 4.5 litres
- Front area: 900cm²
AIRTEC Motorsport Intercooler
- Width: 710mm
- Height: 150mm
- Depth: 70mm
- Capacity: 7.5 litres
- Front area: 1,070cm²
Features:
- 70mm core Intercooler with flowed cast end tanks
- Come with full fitting instructions
- No cutting or drilling with this kit
- Logos have been put onto flowed cast end tanks
- Un-Beatable value for money
- Proven Power Increase’s for Fast Road & Track
- Available in Satin Black or Silver
- 3-year unlimited mileage warranty
- Fitting will take 1-2 hours depending on mechanical skill
- Proven to handle 250bhp
Highly efficient core capable of dealing with power levels from standard up to Stage 2 software time and time again, perfect for your fast road car. To read a more in depth investigation into this intercoolers performance on our track time Fiesta Click Here.
Finished in Pro-Series Satin Black.
Registered Design Right number: 6023241
AIRTEC Part No: ATINTFO25
