FC2-XTG4 ACT XT/Race Sprung 4 Pad Kit

Name: FC2-XTG4 ACT XT/Race Sprung 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actFC2-XTG4
Price: 825 EUR
Availability: InStock

Article nr:

actFC2-XTG4

Recommended for high horsepower street or race use. Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

825 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
FC2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 224 MM
Clutch Disc Diameter: 8.8 IN
Disc Material: Ceramic
Input Spline Quantity: 22
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 14.5
Title: ACT XT/Race Sprung 4 Pad Kit
Torque Capacity (ft/lbs.): 450
Torque Capacity Over OE: 118%

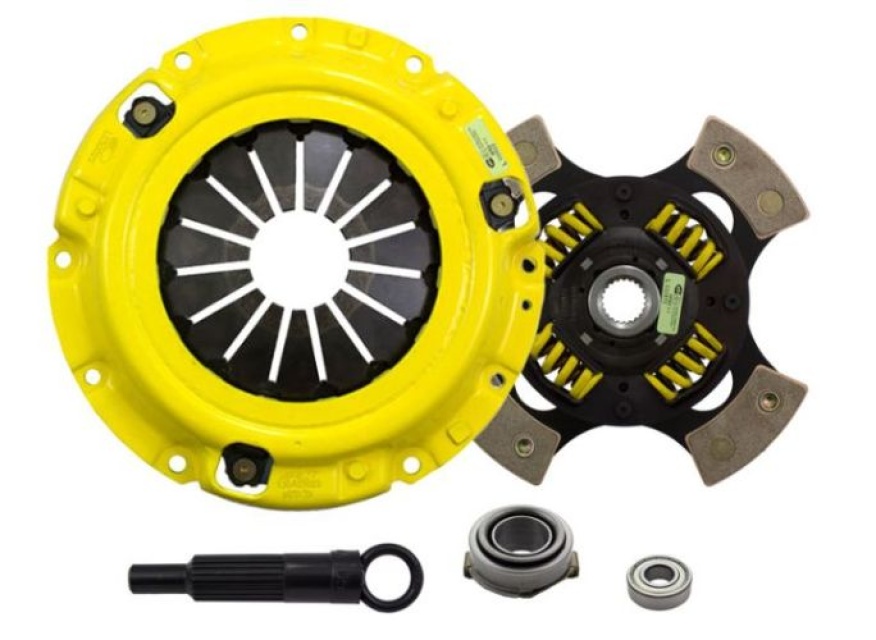

Kit includes:
4224205 ACT 4 Pad Sprung Race Disc
AT05 ACT Alignment Tool
MZ013X ACT Xtreme Pressure Plate
PB1005 ACT Pilot Bearing
RB091 ACT Release Bearing
Kitet passar:
Ford Ranger 1983-1984 2.2L L4 134 CID Diesel
