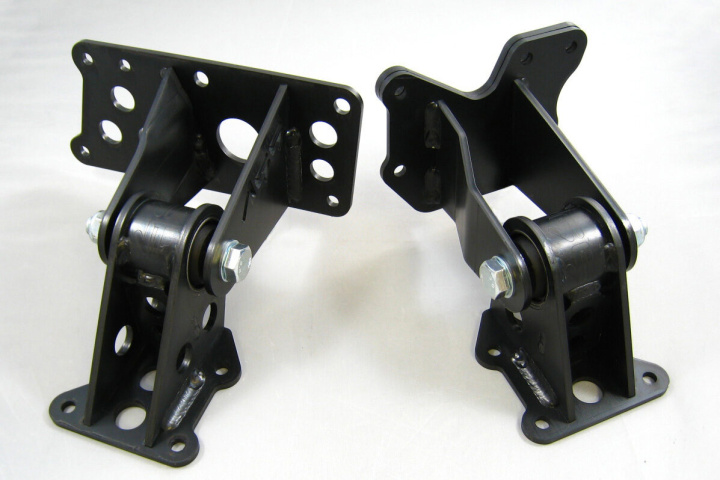

These brackets have several different types of bolt sections to fit the Volvo 5/6-cylinder block up to -07.
However, some versions of blocks require some modifications on the enginemount (but unusual).This is because there are so many different variants. Or, in some cases, use prepared mounting
holes that are not threaded from the factory as there are no more holes in use. But most times its just to mount.
Since these mounts position the engine without tilting, it is necessary to modify the oil pan and gearbox.
A stable rubber bushing keeps the engine in place.
They are made of 5mm 355MCD steel and Zinc iron chromated matt black.
A good quality of electric galvanizing as the automotive industry demands many times.
With these mounts there is also the possibility of having a working AC pump,
which can not be fited with moddified 960 mounts.
A set of brackets consists of: 4 braces including bushing, 2 pcs bolts, nuts and washers.
Are you going to use one of BMW's gearboxes? Check out our gearbox beam AS-002001-03
NOVELTY! All our motor mounts can now be upgraded with polyurethane bushings in different hardnesses.
Now you can adapt your engine mounts to how you use the car.
Softer bushings for street and smaller/lighter engines and harder bushings for track/heavier engines.
