These mounts have a bolt pitch to fit the 1JZ / 2JZ GE and GTE.

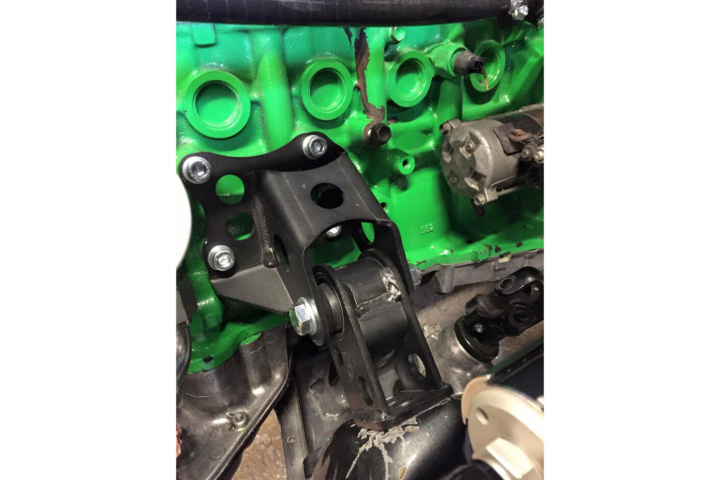

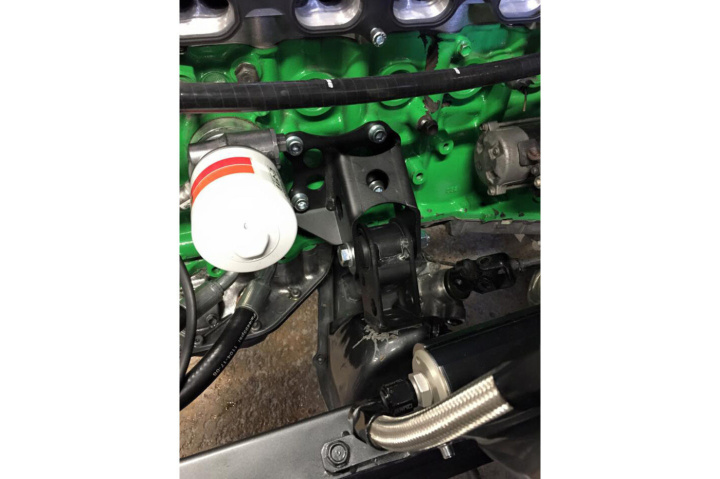

The brackets are made to fit with front mounted oil pan.
A stable rubber bushing holds the motor in place.
They are manufactured in 5mm high-strength steel sheet and electro-galvanized matt black.
In some cases, you may need to modify a brace from the original intake and, depending on the model, you may also need to change a cooling water hose.

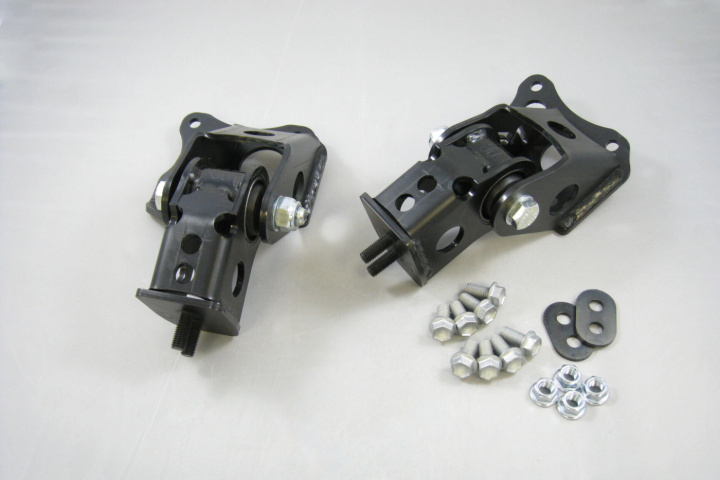

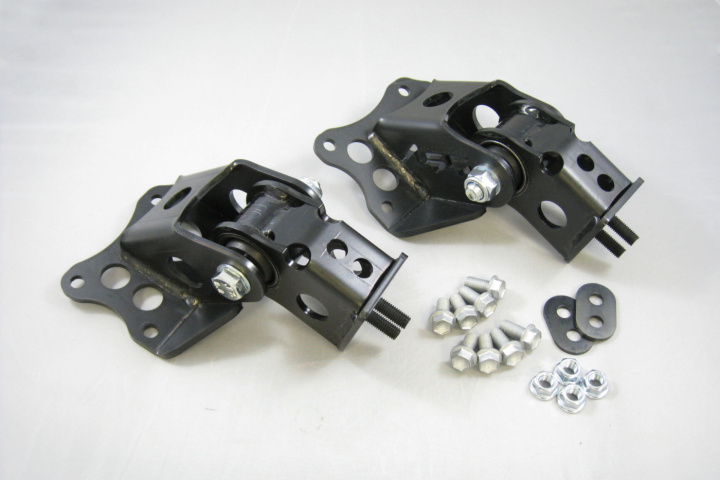

A set of fasteners consists of: 4 fasteners incl. all bushings, bolts, nuts and washers needed for assembly.
These brackets also include bolts to mount the brackets to the block as it is of the unusual dimension M10x1.25x20.
There are also double press bolts in each bracket against the front carriage beam for easier installation. And a substantial tray to put under the beam.
