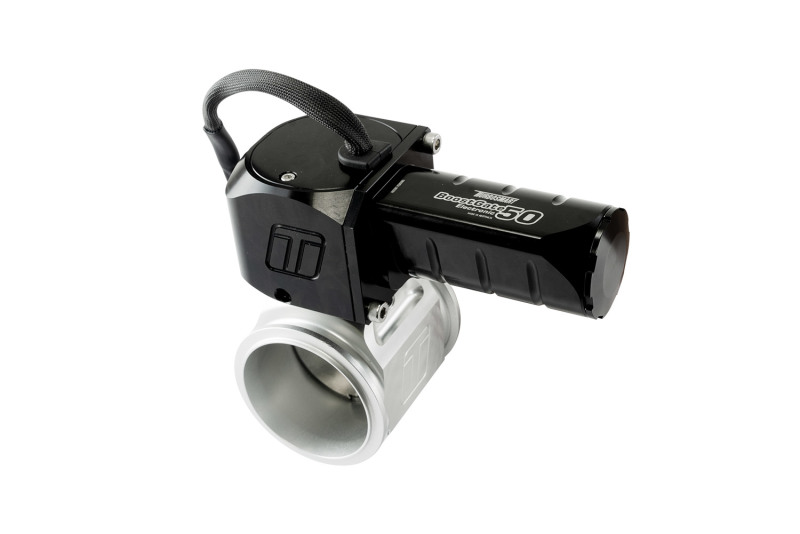

TS-0265-1042 eBG50 Electronic BoostGate Black
nnIntroducing the TS-0265-1042 eBG50 Electronic BoostGate Black – a state-of-the-art electronically controlled butterfly-style valve designed for charge pipe boost control. Crafted from Billet Aluminum to minimize weight, the eBG50 delivers the precise control and exceptional airflow performance you've come to expect from Turbosmart's renowned StraightGate series of products.
nnUnlike traditional external wastegates that divert exhaust gases to reduce turbocharger shaft speed and control boost levels, the BoostGate50 focuses on charge air control by managing the compressed air on the cold side of the turbocharger system. Mounted to the charge pipe, the BoostGate50 offers direct modulation of air flow, providing a more effective and controlled method compared to traditional systems.
nnCharge-Air Control is especially well-suited for applications like drag racing, where turbocharger specifications have already been optimized, and the turbine is not the limiting factor in performance. The BoostGate50 features a zero-offset butterfly-style valve, delivering outstanding resolution, massive airflow, and the precise boost control needed for achieving perfect passes every time.
nnEquipped with Patent Pending Zero-Backdrive gearbox technology, the BoostGate50 minimizes power consumption while maximizing response. It's engineered to win!
nnFeatures
n- n
- 50mm (1.97in) Butterfly style zero-offset valve n
- 383.9 CFM / 10.87m3 per minute flow n
- Stainless steel (630) Butterfly and shaft n
- Billet Aluminium Main Body n
- 360-degree mounting options on V-band n
- Clock-able actuator positions (2 x 120 Deg options) n
- Full Electronic Actuation (Dual H-bridge input) n
- Onboard (0-5v) Analogue Actuator Temperature Sensor n
- Onboard (0-5v) Analog Valve Position Sensor n
- Onboard (PWM) Digital Valve Position Sensor n
What's Included
n- n
- eBG50 Electronic BoostGate50 n
- V-Band Clamps n
- Aluminium Weld Flanges n
- Turbosmart Decal n
