Drive Shaft Adapter Ø110mm to Ø96mm

Name: Drive Shaft Adapter Ø110mm to Ø96mm
Brand: Andersson Steel and Speed
SKU: AS-002006-01
Price: 90 EUR
Availability: OutOfStock

Article nr:

AS-002006-01

Adapter for Getrag's and ZF's gearboxes from i.a. BMW and Mercedes with the large driver with bolt circle of Ø110mm.

90 EUR

Delivery: Discontinued

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description

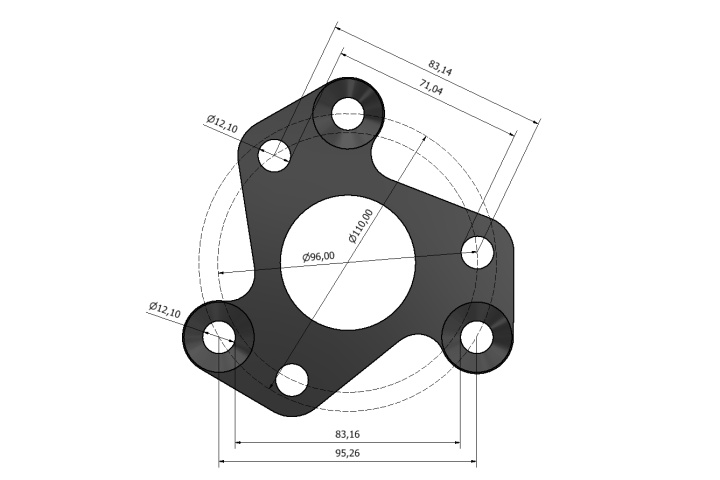

To fit hard disk and gimbal with Ø96mm driver, Volvo, BMW etc. See dimensioned image to easily check and measure your own gimbal / gearbox.

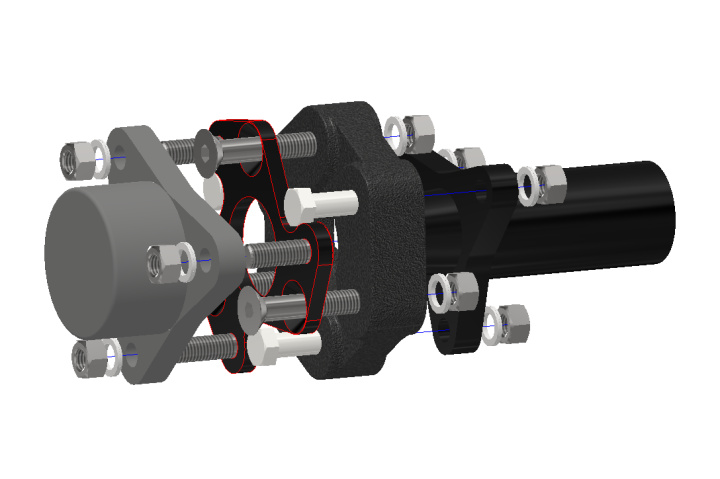

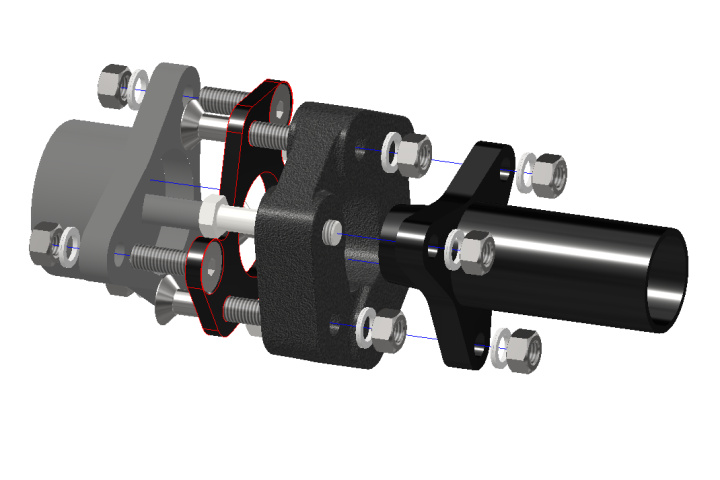

The adapter only builds 8mm so you keep the centering between the gearbox and the gimbal.

See manual for detailed description.

The adapter is made to be used with a Ø96mm hard disk that is around 30mm thick.
But it is also possible to reverse the adapter and put it behind if you want to drive with a Ø110mm hard disk.
The Hardy disc must then be a maximum of 35mm thick, otherwise the screws will not be enough and you will lose the centering.

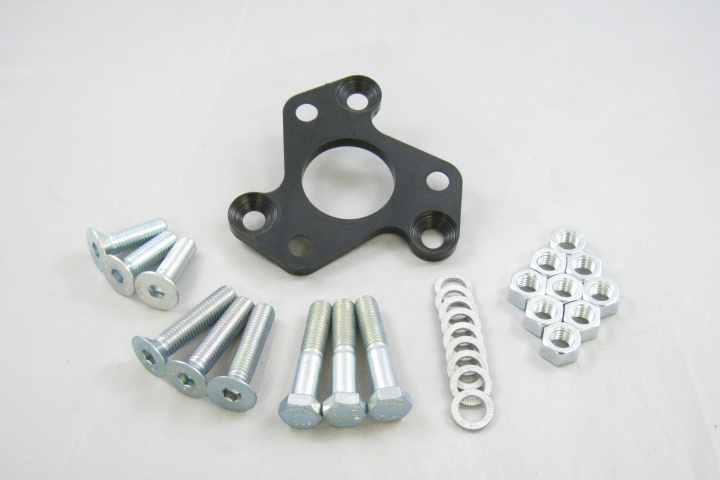

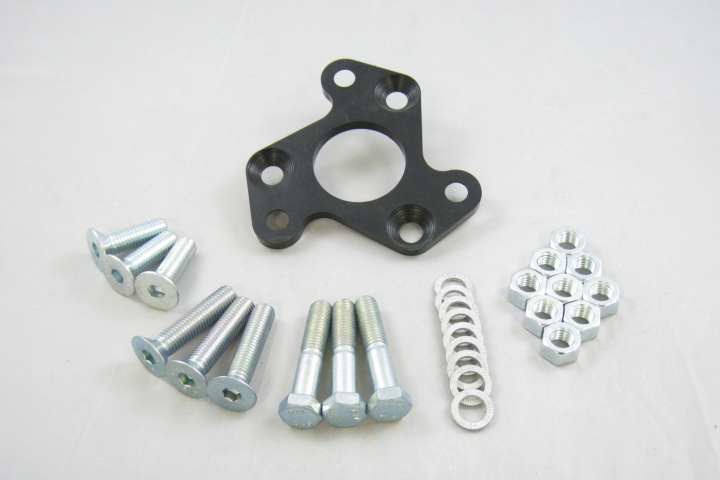

All screws, nuts and washers needed are included.
Screw in 10.9 quality and Nord-lock washers.

Manufactured in 8mm high-strength steel sheet and is electro-galvanized matt black.

Product video

Technical specification

Article nr:
AS-002006-01

Product type: Adapter
Suitable for
Ø96mm, Volvo, BMW and more
