Cyl Block Alum 9.5 Deck Ford Racing

Name: Cyl Block Alum 9.5 Deck Ford Racing
Brand: Ford Performance
SKU: frpM-6010-Z351
Price: 11515 EUR
Availability: InStock

Article nr:

frpM-6010-Z351

9.5 in. Deck Height; Accepts SB Timing Chain/Chain Cover/Oil Pump, 4.110-4.115 in. Bore As Delivered; Cast Iron Sleeves 4.125 in., 4-Bolt Main on 2-3-4 Main Caps; 2-Bolt Main on 1/5 Main Caps, 2.9415-2.9425 in. Dia. Finished Main Bearing Bore, Uses Cam Bearings M-6261-J351 or M-6261-R351, Accepts SB Timing Chain/Chain Cover/Oil Pump, High Strength Aluminum Block; 356-T6 Grade, 2.2032 - 2.2052-in. Dia. Cam Bearing Bores, Lifter Bores Finished 0.8753-0.8768 in., 2.75 in. Crankshaft Main Journal Dia., 4.110-4.115 in. Bore As Delivered, 4-Bolt Main on 2-3-4 Main Caps, High Strength Aluminum Block, 2-Bolt Main on 1/5 Main Caps, Cast Iron Sleeves 4.125 in., Maximum Stroke 4.250 in., 9.5 in. Deck Height, Weights 118 lbs., 356-T6 Grade

Delivery: Special order

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
9.5 in. Deck Height; Accepts SB Timing Chain/Chain Cover/Oil Pump, 4.110-4.115 in. Bore As Delivered; Cast Iron Sleeves 4.125 in., 4-Bolt Main on 2-3-4 Main Caps; 2-Bolt Main on 1/5 Main Caps, 2.9415-2.9425 in. Dia. Finished Main Bearing Bore, Uses Cam Bearings M-6261-J351 or M-6261-R351, Accepts SB Timing Chain/Chain Cover/Oil Pump, High Strength Aluminum Block; 356-T6 Grade, 2.2032 - 2.2052-in. Dia. Cam Bearing Bores, Lifter Bores Finished 0.8753-0.8768 in., 2.75 in. Crankshaft Main Journal Dia., 4.110-4.115 in. Bore As Delivered, 4-Bolt Main on 2-3-4 Main Caps, High Strength Aluminum Block, 2-Bolt Main on 1/5 Main Caps, Cast Iron Sleeves 4.125 in., Maximum Stroke 4.250 in., 9.5 in. Deck Height, Weights 118 lbs., 356-T6 Grade

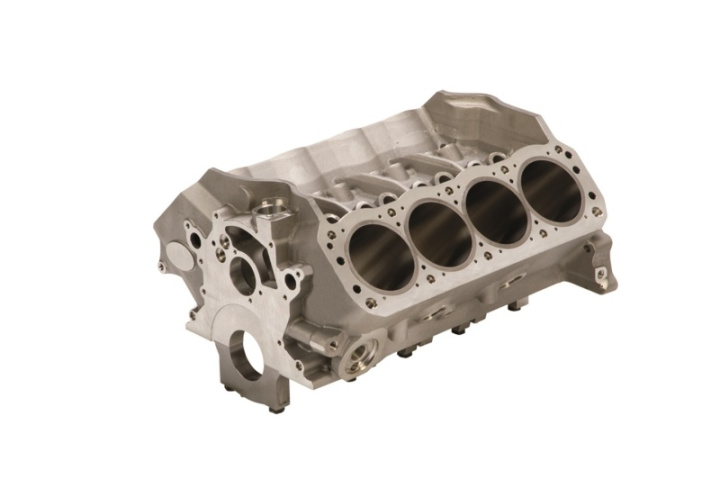

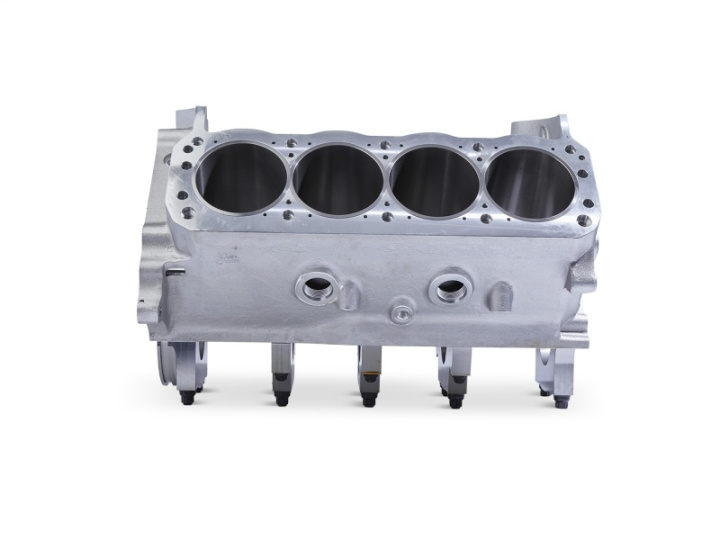

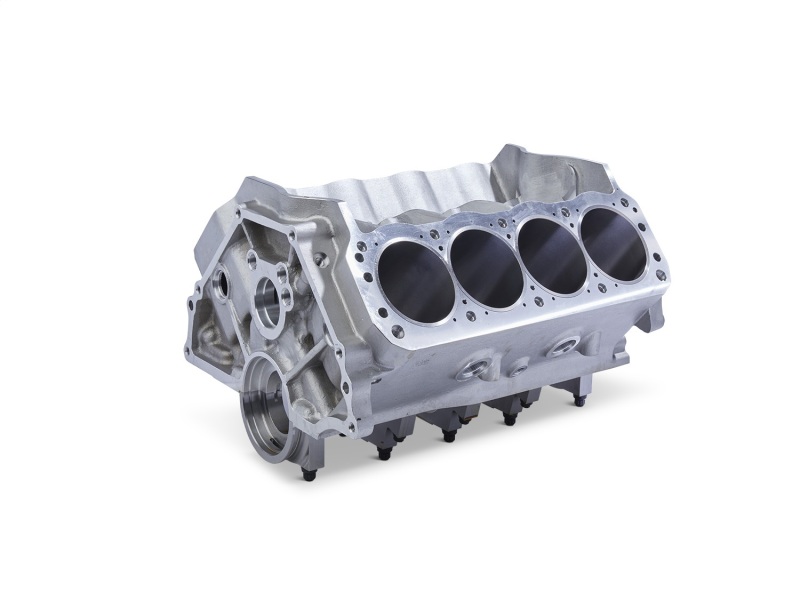

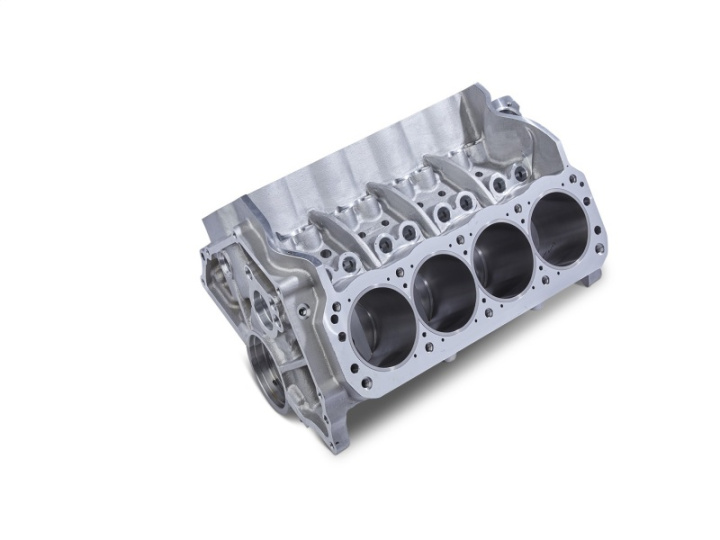

These Ford Racing 351 aluminum wet or dry sump race engine blocks feature cast iron sleeves, an all-aluminum water jacket, and oil galley plugs. They are manufactured from 356-T7 aluminum and feature siamesed cylinder bores, a 9.400 in. deck height, 4-bolt main journals with steel billet main caps, and 2.75 in. diameter main journals. At just 124 lbs., the Ford Racing 351 aluminum wet or dry sump engine blocks save a tremendous amount of weight over a standard cast iron block. The blocks will accept a standard wet or dry sump oiling system. Build a reliable, durable, high-horsepower engine with one of these Ford Racing 351 aluminum wet or dry sump engine blocks.

Product video

Technical specification

Article nr:
frpM-6010-Z351

Manufacture Partnumber: M-6010-Z351
Suitable for
Brand
Ford Performance is the own department with aftermarket parts from Ford. Here you can find original parts from the upgrade catalog for Ford models.
We offer home delivery of all Ford Performance parts, everything from engines to compressors and styling.
