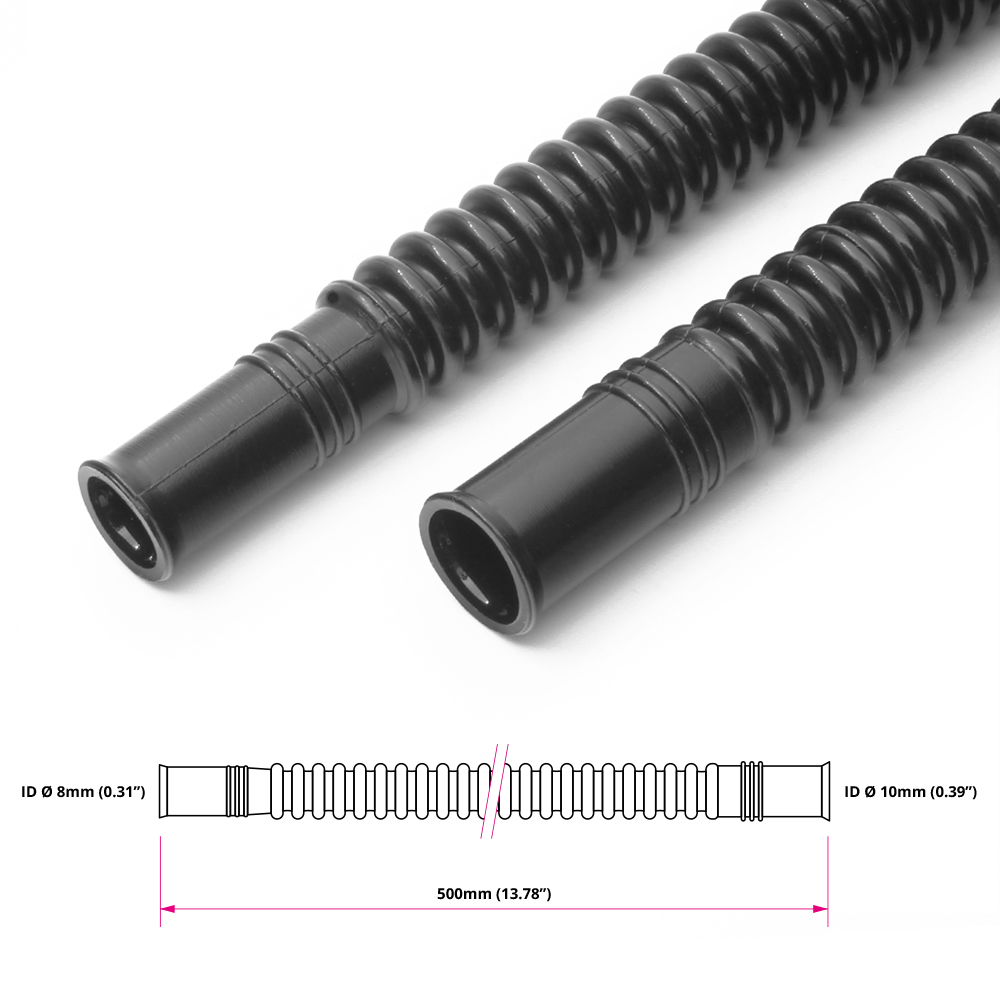

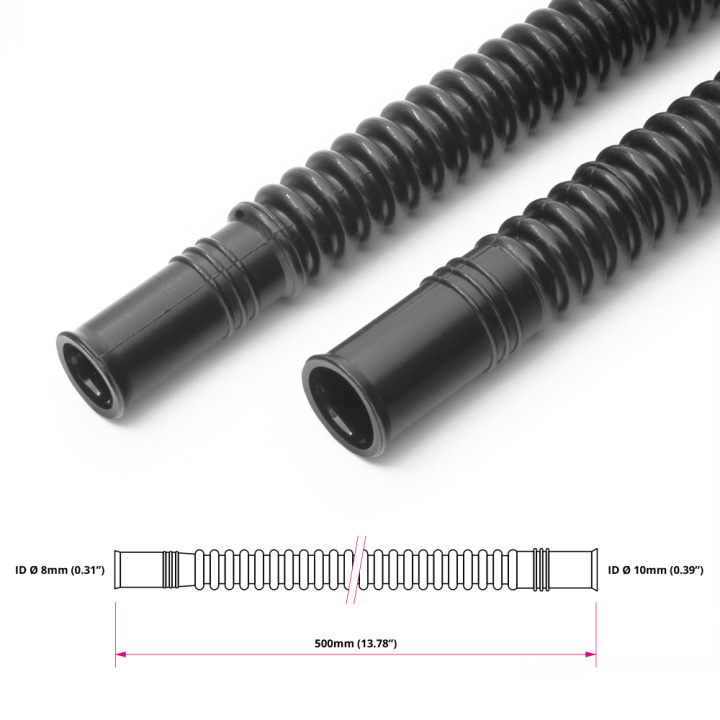

In-tank convoluted black nylon fuel hose, the internal diameter of 8mm in one end and 10mm in the other end. Made to be used together with the Nuke Performance fuel upgrade range or with custom installations.
The circular corrugation leaves you with a very flexible, yet sturdy fuel hose that fits within tight spaces. The nylon hose has high mechanical strength but still minimum wall thickness. Safe for all type of fuels, including alcoholic fuels such as ethanol and methanol. Our custom-designed fuel hose has an ID of 8mm in one end and 10mm in the other end.

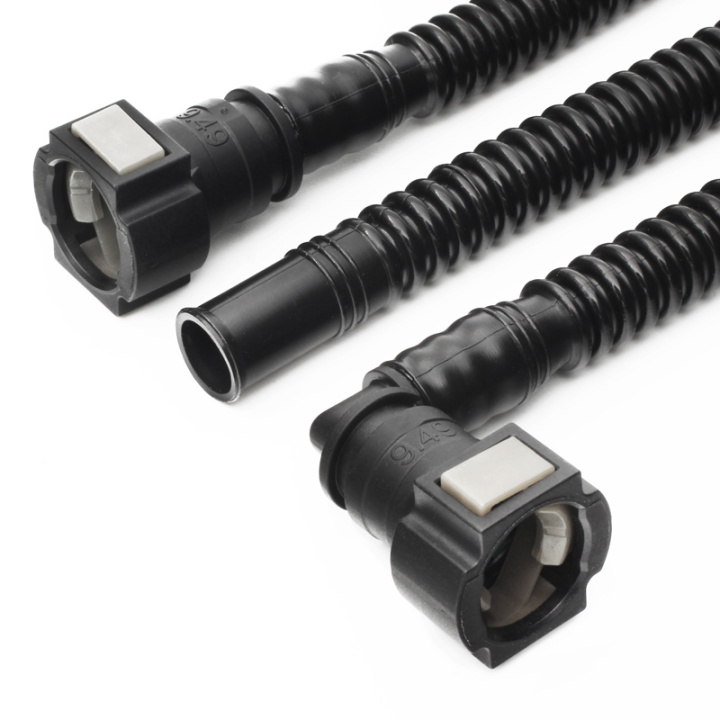

The SAE quick connect fittings come in a wide variation and is manufactured from PA12 and is set to SAE J2044 standards. Equipped with Viton O-Ring seals, that is safe for all type of fuels, including alcoholic fuels such as ethanol and methanol. Operating pressure range -40°C up to +115°C.
The in-tank fuel hoses are available in 350mm and 500mm length and are used together with barb fittings, fuel pumps or SAE fittings.
Use together with a Stainless Steel single ear hose clamp 10.3-12.8mm (Part # : 150-20-304) to connect to fuel pump or fitting of choice.
Available pre-assembled setups:
In-Tank 350mm fuel hose : SAE 9.49 90° to ID8 Part # : 150-20-305
In-Tank 350mm fuel hose : SAE 9.49 90° to ID10 Part # : 150-20-306
In-Tank 350mm fuel hose : SAE 9.49 Straight to ID8 Part # : 150-20-307
In-Tank 350mm fuel hose : SAE 9.49 Straight to ID10 Part # : 150-20-308
In-Tank 350mm fuel hose : SAE 7.89 90° to ID8 Part # : 150-20-309
In-Tank 350mm fuel hose : SAE 7.89 90° to ID10 Part # : 150-20-310
Use together with SAE fittings:
1/4 BSPP to SAE 9.49 Fitting Part # : 300-10-115
SAE J2044 Ø9.49 to ID8 Straight Part # : 150-20-202
SAE J2044 Ø9.49 to ID8 90° Part # : 150-20-203
SAE J2044 Ø9.49 to ID10 Straight Part # : 150-20-204
SAE J2044 Ø9.49 to ID10 90° Part # : 150-20-205
SAE J2044 Ø9.49 to Ø9.49 / Ø7.89 3-way fitting Part # : 150-20-206
SAE J2044 Ø7.89 ID8 90° Part # : 150-20-207
SAE J2044 Ø7.89 ID10 90° Part # : 150-20-208
Quantity: 1pc
