If your truck is a 2016 or newer with stamped steel upper control arms, this kit will work but we advise that you include an aftermarket upper control arm OR purchase the aluminum factory upper control arms. The stamped steel control arms have known issues with the ball joints popping out when leveling or lifting the suspension.
Run your stock wheels or most 17" or larger aftermarket wheels: Wheel Width: Stock Wheels Ok or 9" wheel w/ 4.75" - 5.5" BS
ReadyLIFT® now offers the best comprehensive off road lift kit designed specifically for 2014-2018 Chevy Silverado/GMC Sierra 1500 2WD/4WD trucks. If you want a great Lift solution for your 2014-2018 GM 1500 2WD/4WD that allows you to retain use of your OEM wheels if you need to - This is the kit you have been waiting for!

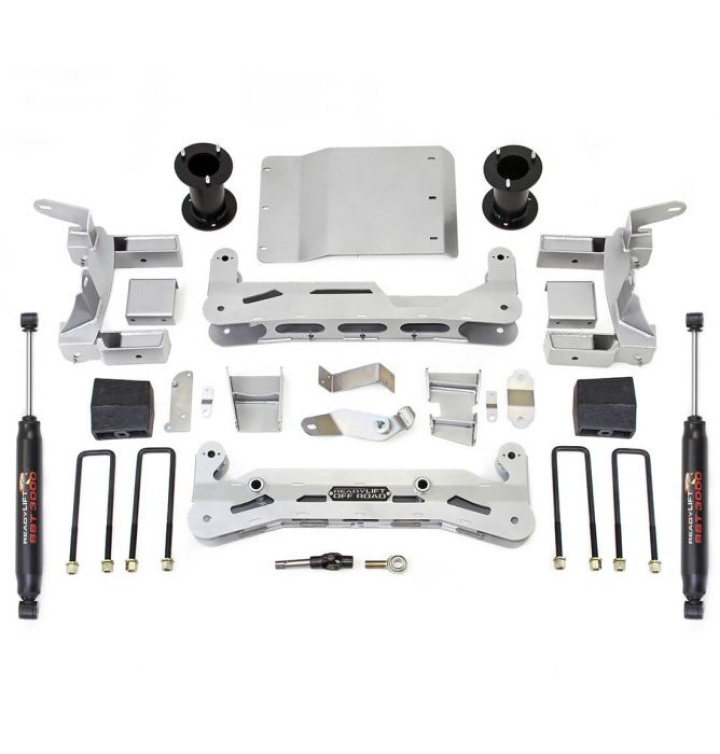

Made In U.S.A. - The Premium complete 6.5" front/ 4.0" rear 2014-2018 Chevy Silverado/GMC Sierra 1500 2WD/4WD System kit is specifically designed to give you a quality lift and rugged off-road strength while maintaining the factory ride on the street. The Complete kit 44-3359 6.5" Lift Kit - Includes SST3000 Rear Shocks - features precision designed laser cut and CNC formed subframe assemblies that directly bolt in. Includes patent-pending rack and pinion steering drop correction system (U.S. Pat. App. No. 14/531,073) and an integrated differential drop bracket system to ensure correct CV axle angles and maximum performance in 4WD mode. Patent Pending fabricated steel strut extensions (U.S. Pat. App. No. 14/532,783) provides the Maximum 6.5" of front lift while 5.0 tall OEM-style rear blocks provide a quality 4.0" rear lift that doesn''t sacrifice the ride. Total rear lift equals 4.0" of lift when installed.This kit even includes a Patent Pending steering extension to keep your steering performance like factory.
(RCS) Rack Correction System - that works with the relocated steering rack to retain the stock steering geometry. That means No Cutting or replacing the tie rod ends like on some other kits on the market. Why is no cutting the tie rods important? Because of the owner or mechanic replacing a tie rod down the road doesn''t know a tie rod has been cut and shortened, they will install the OE replacement tie rod which will not work and the vehicle cannot be properly aligned. That is just one reason why a dropped rack and pinion is far superior.
Benefits of ReadyLIFT Rack Correction System - By dropping the steering rack the truck retains full OEM alignment specs, features a stock vehicle turning radius and retains the stock track width! This system can be aligned to within factory specifications. We also include details on the ideal alignment specs to prolong tire life and increase the performance and handling both on and off-road.
Bonus - No need to cut your steering rods like on other kits which requires the tie rods to be shortened. This results in reduced steering radius. Our steering rack drop down system allows you to retain your stock tie rods without modifying them.
Bonus - The ReadyLIFT lift kits are the only lift kits that will allow you to use your factory spare wheel and tire in case of a flat.
The subframe and other components are powder coated with a unique and improved Plascoat finish. The Plascoating on the components is a performance polymer alloy coating specifically designed to provide a long-lasting, tough coating for exterior applications. The Plascoat finish is especially resistant to stress cracking with improved abrasion and impact resistance as well as a great way to protect against adverse weather conditions, detergents, salt spray and other typical airborne pollutants.
Includes SST3000 Rear Shocks
Features and Benefits:
*There are many different variations of manufacturer aftermarket tire and wheel combinations in both widths, actual diameter, tread pattern, etc. It is up to the installer to determine wheel and tire fitment on the vehicle and guarantee that there is no rubbing of the tire on any components, both inside, and outside surfaces. The above guide is for reference only.
20" x 9" Aftermarket Wheel with 4.75-5.5" BS - 35x12.50 x 20" with no trimming* at 6.5" ride height
18" x 9" Aftermarket Wheel with 4.75-5.5" BS - 35x12.50 x 18" with no trimming* at 6.5" ride height
17" x 8" Aftermarket Wheel with 4.75-5.5" BS - 35x12.50 x 17" with no trimming at 6.5" ride height
Factory Aluminum Wheel with 5.75" BS - 35x12.50 x 17" with no trimming* at 6.5" ride height
Wheel Width: Stock Wheels Ok or 9" wheel w/ 4.75" - 5.5" BS
Does NOT increase front track width - Allows for use of OEM wheels
Max Tire: 35 x 12.50"
Install time: 6-10 hours.
The 44-3359 6.5" kit has been tested and meets the rigorous FVMSS certification standards for safety and quality.
Includes SST3000 Rear Shocks
OEM style 5.0" tall rear block provides 4.0" of rear lift.
Patent Pending rack and pinion steering drop system - first of its kind!
Fabricated heavy-duty steel 6.5" lift strut extensions allow you to retain your factory front struts.
Exclusive integrated differential drop bracket system to ensure correct CV angles on 4WD vehicles.
Special Plascoat performance polymer alloy long lasting and tough crack and scratch resistant finish.
Patent Pending steering extension to retain factory steering quality.
CNC formed steel sub-frame assemblies - bolt-on installation.
Covered under the ReadyGuard Powertrain Warranty
