Carbon Oil Catch Can 0.75 liter, Matte carbon Nuke Performance

Nuke Performance universal 0.75 liter Oil Catch Can with a real lightweight carbon composite canister. Available in Glossy Carbon, Matte Carbon, and Carbon Kevlar.

Universal dual-inlet Catch Can with internal baffling and a unique 300-micron filtered outlet port. Equipped with dual AN-10 ORB inlet ports for easy adaptation and installation. Designed for competition, motorsport, and high-performance street applications, the dual-filtration breather system makes it suitable for virtually any vehicle in need of an efficient crankcase ventilation catch can.

• Real-Carbon Oil Catch Can
• Available in glossy, matte, and carbon kevlar finish
• Save an incredible -25% in weight
• Made in Sweden
• 300-micron filter and stainless steel internal baffling
• AN-10 ORB threads, for the highest possible flow

The Carbon Oil Catch Can 0.75 liters features AN-10 ORB threads on both the dual inlet ports and the single outlet port, providing maximum flexibility when selecting fittings and configuring your setup. Designed for both atmospheric and recirculating installations, it includes an aluminum trumpet for atmospheric use, combining excellent flow characteristics with a clean, motorsport-inspired appearance.

• World-class dual filtration with maximized functionality through the filtered outlet port.
The unique dual-stage filtration system prevents oil particles and contaminants from escaping through the breather by utilizing a 300-micron filter disc, both in atmospheric and recirculating configurations. This advanced filtration design efficiently separates crankcase vapors, helping to protect your engine and maintain long-term performance and reliability.

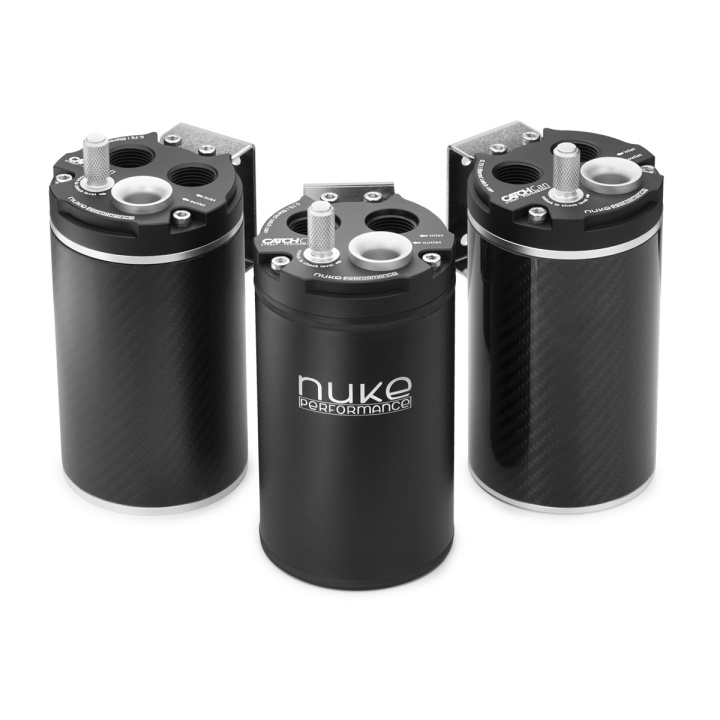

• Real lightweight Carbon Composite Oil Catch Can – available in Glossy Carbon, Matte Carbon, and Carbon Kevlar.
The Nuke Performance Oil Catch Can series is trusted worldwide across all forms of motorsport and performance tuning. To take it one step further, we developed a lightweight carbon composite version of our proven 0.75-liter Performance Catch Can (available here). With a weight reduction of up to 25% compared to the standard aluminum version, it combines uncompromising functionality with an exclusive appearance. Available in Glossy Carbon, Matte Carbon, and Carbon Kevlar finishes to complement any engine bay style.
Make sure to select the preferred finish of the catch can when placing your order.
Carbon Oil Catch Can 0.75 liter, Glossy Carbon Part # : 265-01-202
Carbon Oil Catch Can 0.75 liter, Matte Carbon Part # : 265-01-203
Carbon Oil Catch Can 0.75 liter, Carbon Kevlar Part # : 265-01-204

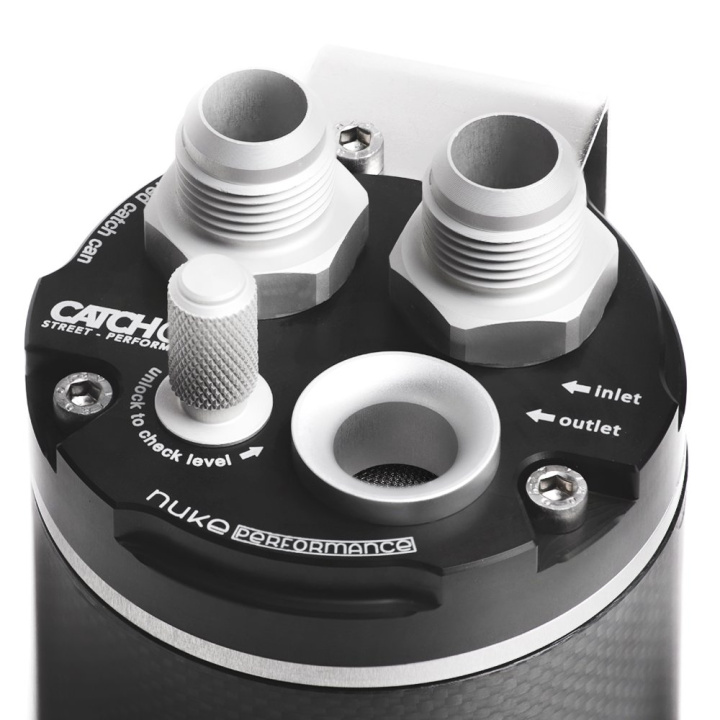

• Dipstick for quick and easy oil level inspection, combined with AN-10 ORB ports that offer exceptional flexibility when choosing fittings and adapters.
An easily accessible anodized dipstick allows for quick and accurate oil level checks. Whether between sessions at the race track or during routine vehicle inspections, monitoring the catch can level is fast and convenient. Draining is equally simple with the optional petcock valve that connects to the integrated 1/4" drain port at the bottom of the canister. Both the dual inlet ports and the single outlet port utilize AN-10 ORB threads, providing maximum flow capacity and exceptional installation flexibility. A wide range of AN-10 ORB fittings and adapters is available separately as accessories.
AN-10 ORB Plug Part # : 700-04-117 *
AN-10 ORB to BQL 22 Female Part # : 290-22-102 **
AN-10 ORB to AN-8 Male Part # : 700-01-109
AN-10 ORB to AN-10 Male Part # : 700-01-110
AN-10 ORB to AN-12 Male Part # : 700-01-111
AN-10 ORB swivel banjo to AN-8 Male Part # : 710-01-110
AN-10 ORB swivel banjo to AN-10 Male Part # : 710-01-111
* used for a single inlet setup, blocks the additional inlet port.
** for Nuke Performance Breather Quick Lock system integration "BQL".

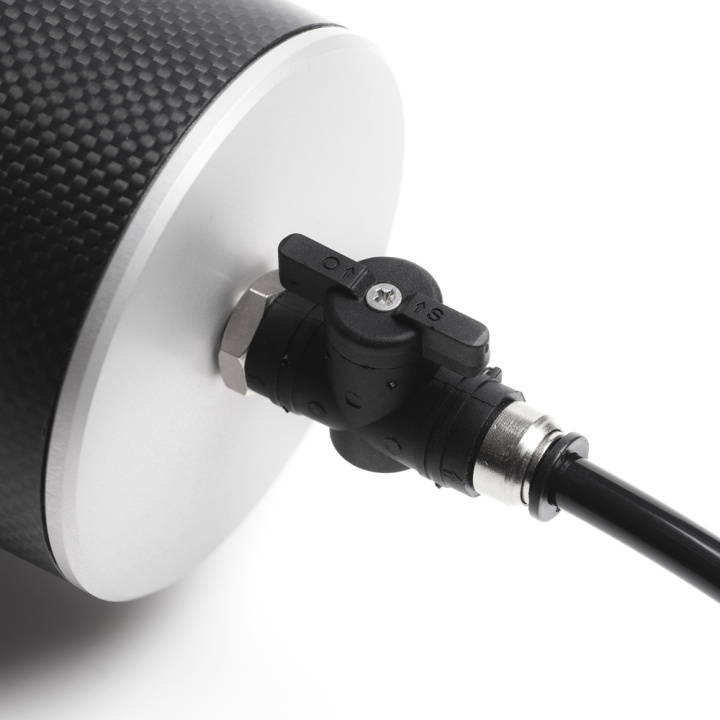

• Drainage is made easy with the optional drainage kit.
The optional drainage kit makes servicing quick and convenient. It includes a 1/4" petcock valve that threads directly into the drain port at the bottom of the catch can, along with a 2 m (6 ft) hose. Route the hose to an easily accessible location, such as the wheel well, allowing the catch can to be drained without removing it from the vehicle. This simplifies maintenance and makes collecting residual fluids fast and hassle-free.
Catch Can Drainage Kit Part # : 265-10-101

• Made in Sweden, guarantees the highest possible quality.
Developed, designed, and manufactured in Sweden by Nuke Performance. Built to the same uncompromising standards as the rest of our motorsport product range, every detail is engineered for maximum performance, durability, and reliability.

When it comes to quality, there is no substitute for Nuke Performance.

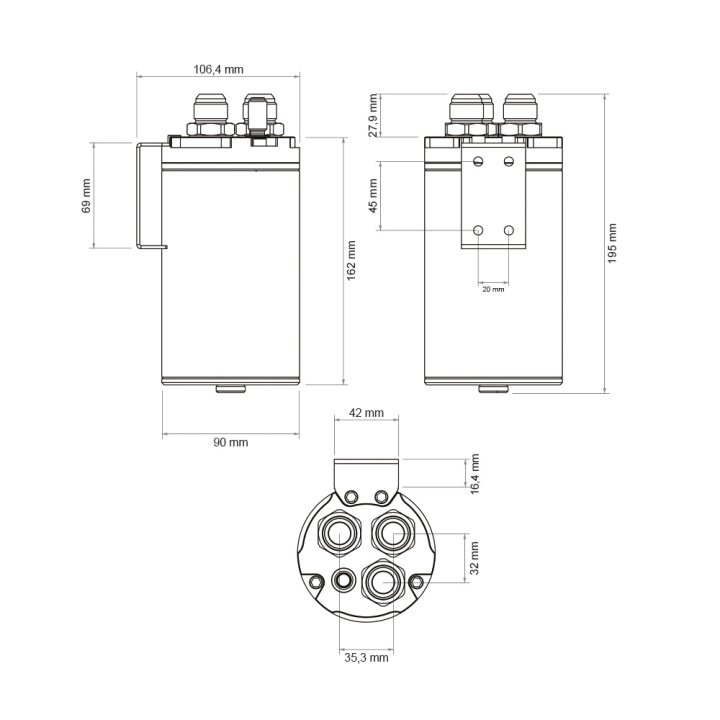

• Carbon Oil Catch Can 0.75 liter Specifications:
For more information about specifications, contact us directly.

* without included / additional fittings

• Download Product Sheet (.pdf)
• Accessories / Spare Parts

• Nuke Performance Carbon Oil Catch Can 0.75 liter Includes:
1 x 0.75 liter capacity carbon catch can

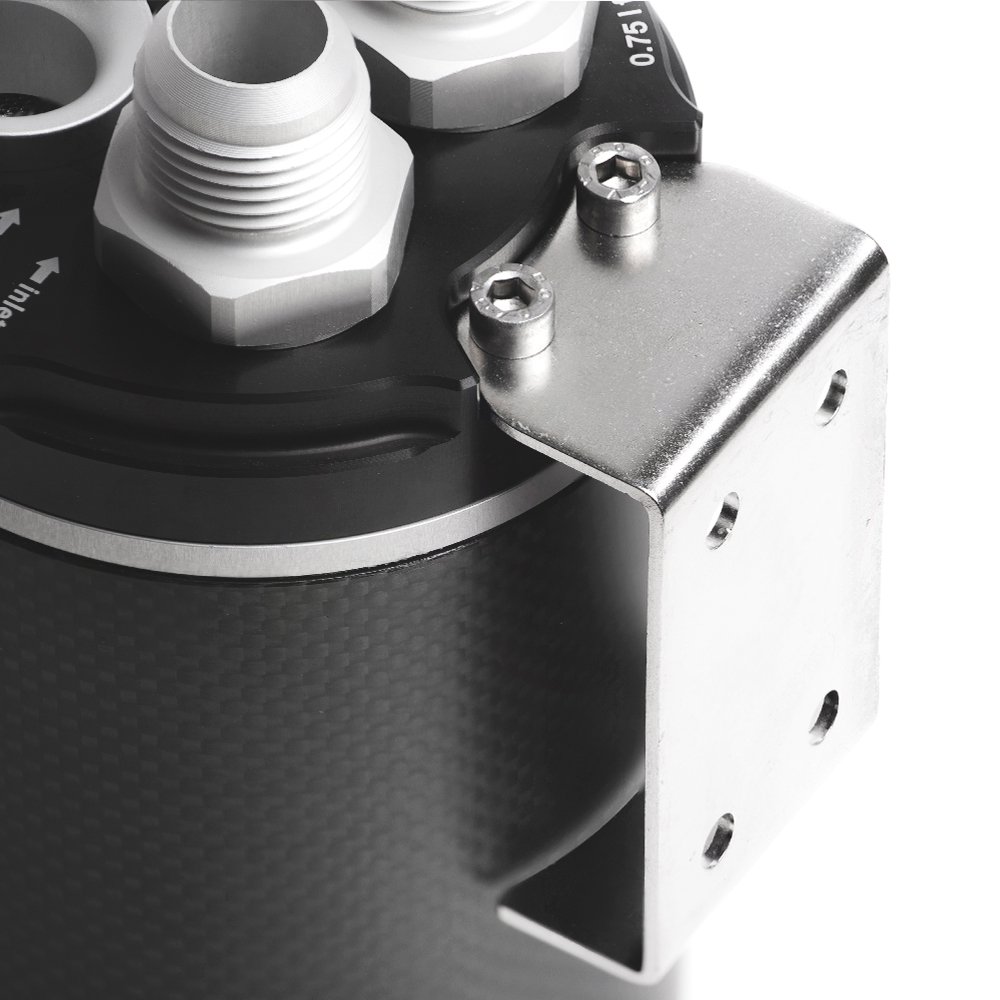

1 x Stainless steel bracket
1 x AN-10 (7/8 UNF) Atmospheric trumpet, for atmospheric use
1 x 300-micron filter disc for the outlet port
1 x Aluminum dipstick
1 x 1/4 BSPP Plug

• Product update 2022 :
To satisfy our customers´ wishes, our oil catch cans are now delivered with AN-10 ORB threads. Large range of fittings (view AN-10 ORB range) and even higher flow.
