Flow matched Bosch 980cc injector, high impedance - adapted to 65mm (EV14L) to fit the Nuke Performance range of 4cyl fuel rails.

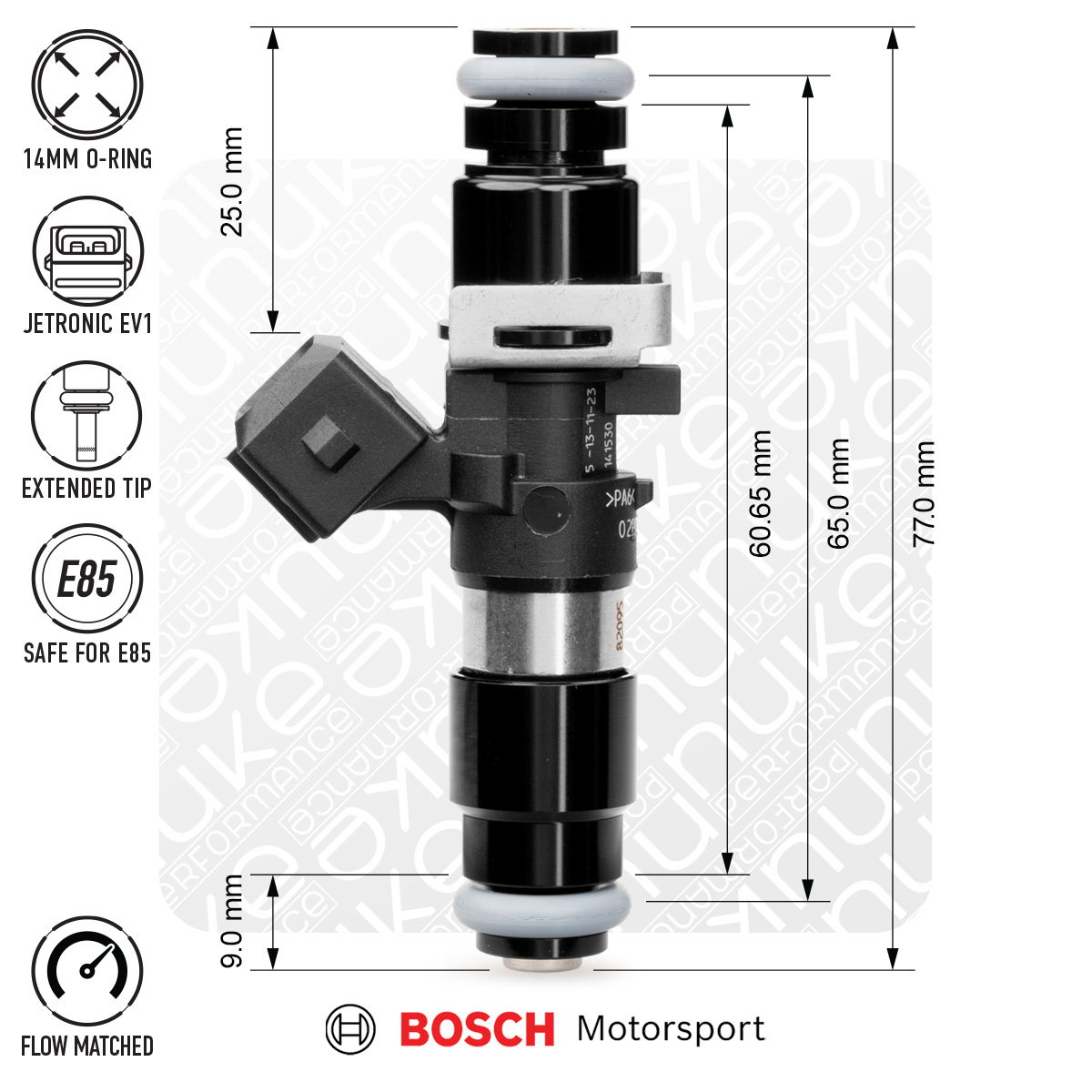

This injector is equipped with the needed accessories according to a Bosch EV14L injector (60,65mm between O-rings / 65mm center to center of the O-rings).
• High impedance 980cc injector from Bosch Motorsport
• Corresponding to a Bosch EV14 L injector length
• Kit of x4 flow matched 980cc injectors
• Filtered top adapter for additional protection
When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.
• Bosch Motorsport 980cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.
| Bosch part number | 0280158040 / Bosch -040 |
| OEM part number | 0 280 158 040 |
| Type - w/o included adapters | 39mm EV14K (Compact) |
| Type - with included adapters | 65mm EV14L (Long) |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 12 ohm |
| Volume at 3 BAR | 980cc/min = 670g/min = 89lb/hr @ 3bar |
| Fuel compatibility | Petrol / Gasoline / E85 / M100 * |
| Nozzle / Spray pattern | Extended tip / Single cone spray |
| For motorsports use | YES |
| Part # / EAN | 130-04-098 / 7340209508338 |
* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.
• Bosch 980cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
• Learn more : Visit our FAQ / Injector calculator
| Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | 720cc / min = 69 lb / h |
| 3 BAR (43.5 PSI) | 900cc / min = 86 lb / h |
| 4 BAR (58 PSI) | 1038cc / min = 99 lb / h |
| 5 BAR (78.5 PSI) | 1170cc / min = 111 lb / h |
| 6 BAR (88 PSI) | 1284cc / min = 122 Ib / h |
| 7 BAR (101.5 PSI) | 1344cc / min = 128 lb / h |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x129 = 129hp | 1x168 = 168hp |
| 4 cyl | 4x129 = 516hp | 4x168 = 672hp |
| 5 cyl | 5x129 = 645hp | 5x168 = 840hp |
| 6 cyl | 6x129 = 774hp | 6x168 = 1008hp |
| 8 cyl | 8x129 = 1032hp | 8x168 = 1344hp |
| E85 (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x112 = 112hp | 1x140 = 140hp |
| 4 cyl | 4x112 = 448hp | 4x140 = 560hp |
| 5 cyl | 5x112 = 560hp | 5x140 = 700hp |
| 6 cyl | 6x112 = 672hp | 6x140 = 840hp |
| 8 cyl | 8x112 = 896hp | 8x140 = 1120hp |
Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).

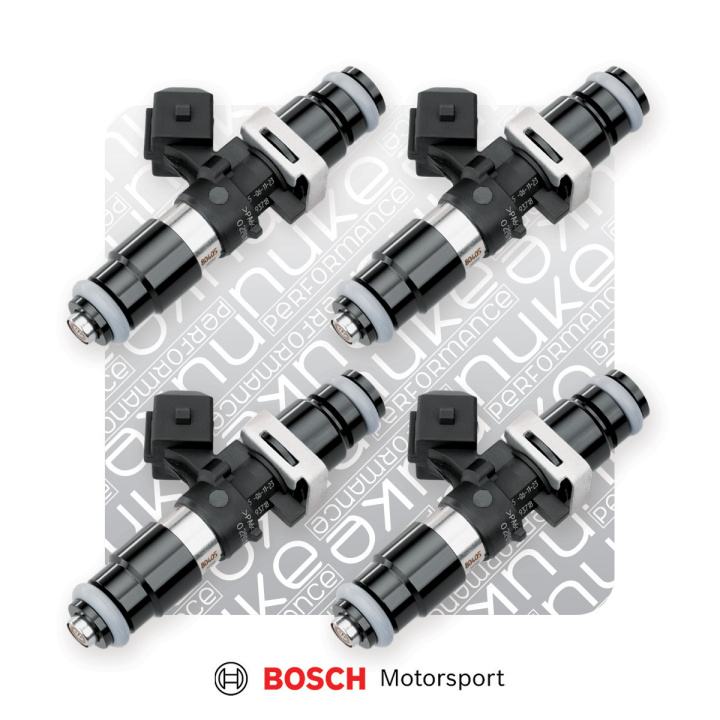

• Bosch injector 980cc, 65mm (EV14L), 4pcs flow matched includes:
4 x Bosch Motorsport injector (# 0280158040)
4 x Injector adapter 14mm short - with filter (# 135-01-101)
4 x Injector adapter 14mm short - without filter (# 135-01-102)
4 x Bosch injector clip (# 135-01-005)
1 x Flow match certificate
• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical. We deliver most injectors within a 1% difference, with a top difference of 2% for smaller batch injectors.
Bosch injector 980cc, 65mm (EV14L), 4pcs flow matched Part # : 130-04-098
Bosch injector 980cc, 65mm (EV14L), 5pcs flow matched Part # : 130-05-098
Bosch injector 980cc, 65mm (EV14L), 6pcs flow matched Part # : 130-06-098
Bosch injector 980cc, 65mm (EV14L), 8pcs flow matched Part # : 130-08-098
