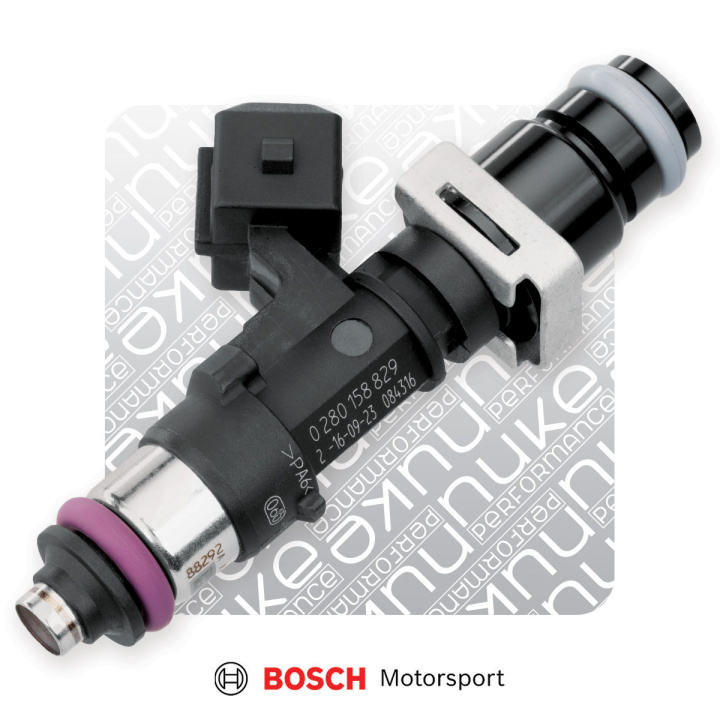

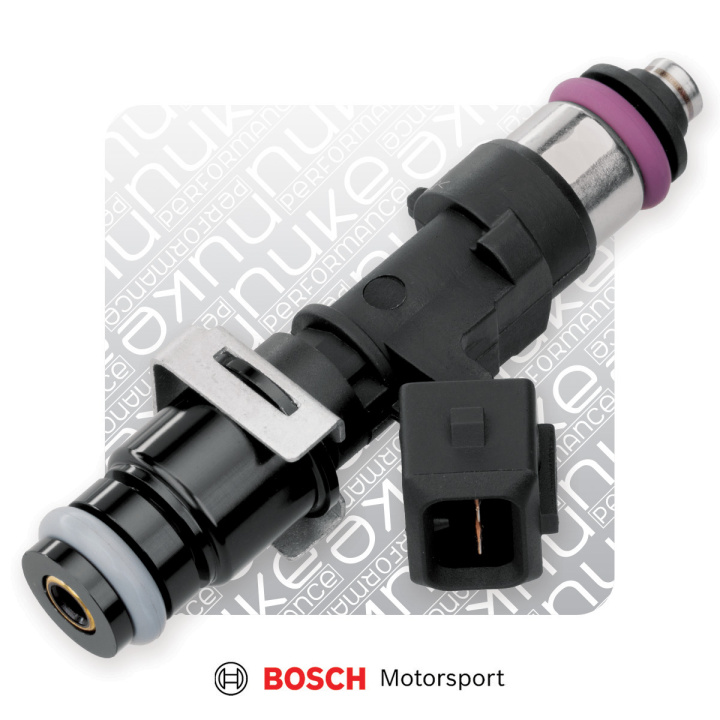

Flow matched Bosch 2200cc NGI2 injector, high impedance - adapted to 65mm (EV14L) to fit the Nuke Performance range of 8cyl fuel rails.

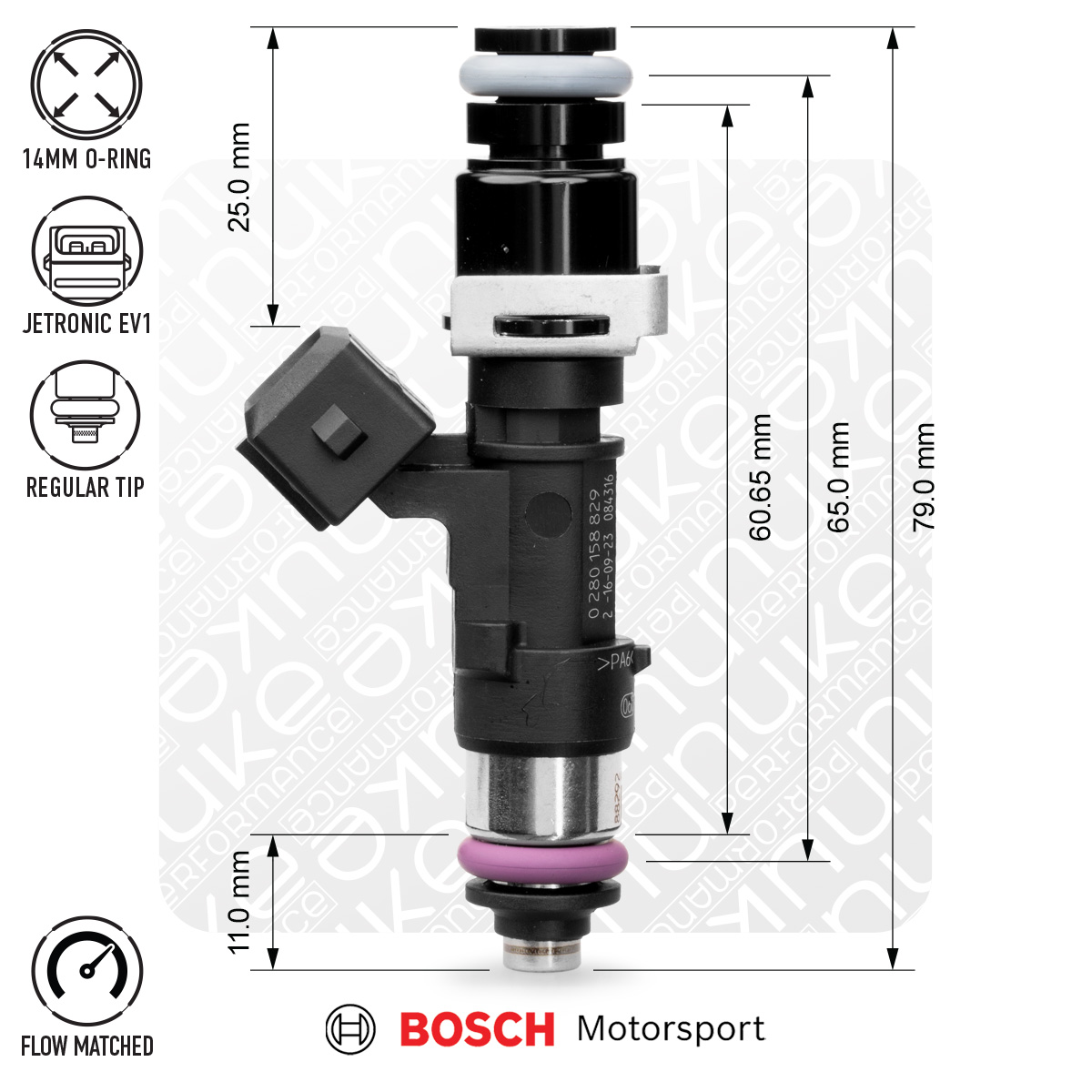

This injector is equipped with the needed accessories according to a Bosch EV14L injector (60,65mm between O-rings / 65mm center to center of the O-rings).
• High impedance 2200cc injector from Bosch Motorsport
• Corresponding to a Bosch EV14 L injector length

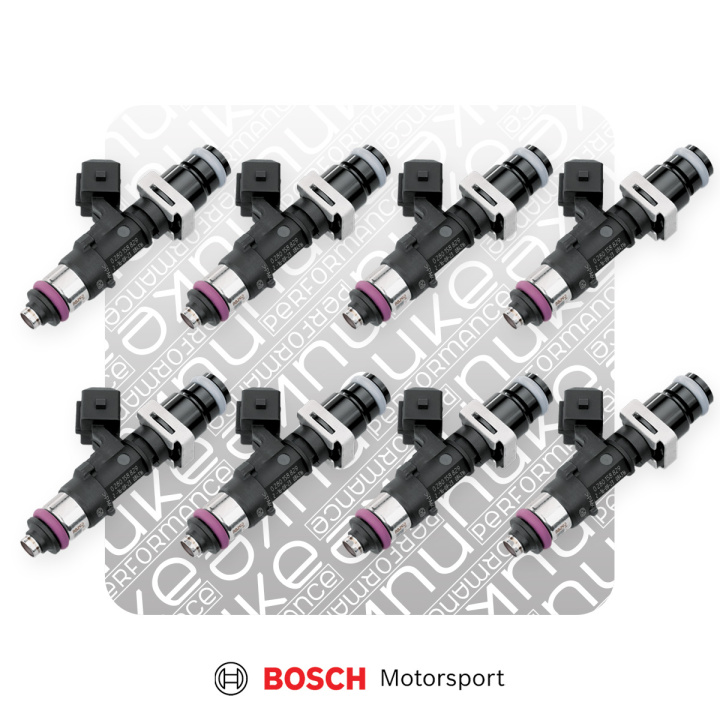

• Kit of x8 flow matched 2200cc NGI2 injectors
• Filtered top adapter for additional protection
When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.
• Bosch Motorsport 2200cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.
| Bosch part number | 0280158829 / Bosch -829 |
| OEM part number | 0 280 158 829 / 2200cc NGI2 |
| Type - w/o included adapters | 53mm EV14S (Standard) |
| Type - with included adapters | 65mm EV14L (Long) |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 8.5 ohm |
| Volume at 3 BAR | 980cc/min = 670g/min = 89lb/hr @ 3bar |
| Fuel compatibility | Petrol / Gasoline * |
| Nozzle / Spray pattern | Regular tip / Single cone spray |
| For motorsports use | YES |
| Part # / EAN | 130-08-220 / 7340209508543 |
* Note: This injector is made for natural gas (CNG) fuel and is not compatible with E85 or other alcoholic fuel.
• Bosch 2200cc NGI2 Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
• Learn more : Visit our FAQ / Injector calculator
| Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | 1800cc / min = 171.4 lb / h |
| 3 BAR (43.5 PSI) | 2200cc / min = 209.5 lb / h |
| 4 BAR (58 PSI) | 2550cc / min = 242.8 lb / h |
| 5 BAR (78.5 PSI) | 2865cc / min = 272.8 lb / h |
| 6 BAR (88 PSI) | 3155cc / min = 300.5 lb / h |
| 7 BAR (101.5 PSI) | 3350cc / min = 319 lb / h |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x314 = 314hp | 1x377 = 377hp |
| 4 cyl | 4x314 = 1256hp | 4x377 = 1508hp |
| 5 cyl | 5x314 = 1570hp | 5x377 = 1885hp |
| 6 cyl | 6x314 = 1884hp | 6x377 = 2262hp |
| 8 cyl | 8x314 = 2512hp | 8x377 = 3016hp |
| E85 (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x241 = 241hp | 1x290 = 290hp |
| 4 cyl | 4x241 = 964hp | 4x290 = 1160hp |
| 5 cyl | 5x241 = 1205hp | 5x290 = 1450hp |
| 6 cyl | 6x241 = 1446hp | 6x290 = 1740hp |
| 8 cyl | 8x241 = 1928hp | 8x290 = 2320hp |
Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).
• Bosch injector 2200cc NGI2, 65mm (EV14L), 8pcs flow matched includes:
8 x Bosch Motorsport injector (# Bosch -829)
8 x Injector adapter 14mm short - with filter (# 135-01-101)
8 x Bosch injector clip (# 135-01-005)
1 x Flow match certificate
• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical. We deliver most injectors within a 1% difference, with a top difference of 2% for smaller batch injectors.
Bosch injector 2200cc, 65mm (EV14L), 4pcs flow matched Part # : 130-04-220
Bosch injector 2200cc, 65mm (EV14L), 5pcs flow matched Part # : 130-05-220
Bosch injector 2200cc, 65mm (EV14L), 6pcs flow matched Part # : 130-06-220
Bosch injector 2200cc, 65mm (EV14L), 8pcs flow matched Part # : 130-08-220
