Flow matched Bosch 1462cc / 1500cc injectors, high impedance - adapted to 53mm (EV14S) to fit the Nuke Performance range of 4cyl fuel rails.

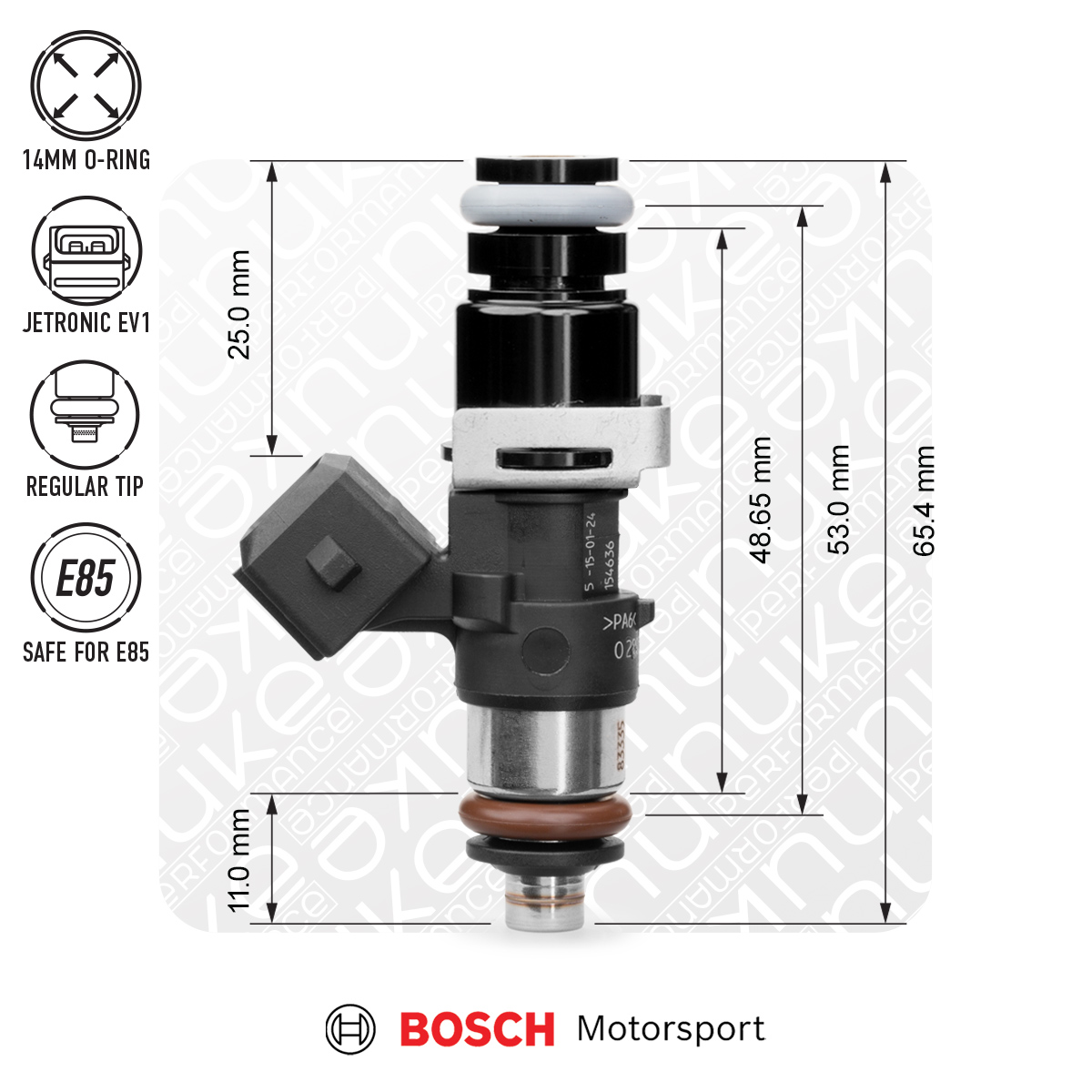

These injectors is equipped with the needed accessories according to Bosch EV14S injectors (48.65mm between O-rings / 53mm center to center of the O-rings).
• High impedance 1462cc injector from Bosch Motorsport
• Commonly referred to as the Bosch 1500cc injector
• Corresponding to a Bosch EV14 S injector length
• Kit of x4 flow matched 1462cc injectors
• Filtered top adapter for additional protection
When ordering injectors, always check the specifications of your fuel rail to ensure the injector type is compatible. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.
• Bosch Motorsport 1462cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.
| Bosch part number | 0280158333 / Bosch -333 |
| OEM part number | 0 280 158 333 |
| Type - w/o included adapters | 39mm EV14K (Compact) |
| Type - with included adapters | 53mm EV14S (Standard) |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 8.5 ohm |
| Volume at 3 BAR | 1462cc/min = 1000g/min = 132lb/hr @ 3bar |
| Fuel compatibility | Petrol / Gasoline / E85 / M100 * |
| Nozzle / Spray pattern | Regular tip / Single cone spray |
| For motorsports use | YES |
| Part # / EAN | 132-04-150 / 7340209510515 |
* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.
• Bosch 1462cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
• Learn more : Visit our FAQ / Injector calculator
| Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | N/A |
| 3 BAR (43.5 PSI) | 1450cc / min = 138.1 lb / h |
| 4 BAR (58 PSI) | 1690cc / min = 160.9 lb / h |
| 5 BAR (78.5 PSI) | 1900cc / min = 180.9 lb / h |
| 6 BAR (88 PSI) | N/A |
| 7 BAR (101.5 PSI) | N/A |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x197 = 197hp | 1x257 = 257hp |
| 4 cyl | 4x197 = 788hp | 4x257 = 1028hp |
| 5 cyl | 5x197 = 985hp | 5x257 = 1285hp |
| 6 cyl | 6x197 = 1182hp | 6x257 = 1542hp |
| 8 cyl | 8x197 = 1576hp | 8x257 = 2056hp |
| E85 (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x171 = 171hp | 1x214 = 214hp |
| 4 cyl | 4x171 = 684hp | 4x214 = 856hp |
| 5 cyl | 5x171 = 855hp | 5x214 = 1070hp |
| 6 cyl | 6x171 = 1026hp | 6x214 = 1284hp |
| 8 cyl | 8x171 = 1368hp | 8x214 = 1712hp |
Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).
• Bosch injector 1462cc, 53mm (EV14S), 4pcs flow matched includes:
4 x Bosch Motorsport injector (# 0280158333)
4 x Injector adapter 14mm short - with filter (# 135-01-101)
4 x Bosch injector clip (# 135-01-005)
1 x Flow match certificate
• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical.
Bosch injector 1462cc, 53mm (EV14S), 4pcs flow matched Part # : 132-04-150
Bosch injector 1462cc, 53mm (EV14S), 5pcs flow matched Part # : 132-05-150
Bosch injector 1462cc, 53mm (EV14S), 6pcs flow matched Part # : 132-06-150
Bosch injector 1462cc, 53mm (EV14S), 8pcs flow matched Part # : 132-08-150
