Bosch 1200cc modified injector, high impedance - EV14K Compact 38mm injector selected to fit the Nuke Performance range of fuel rails.

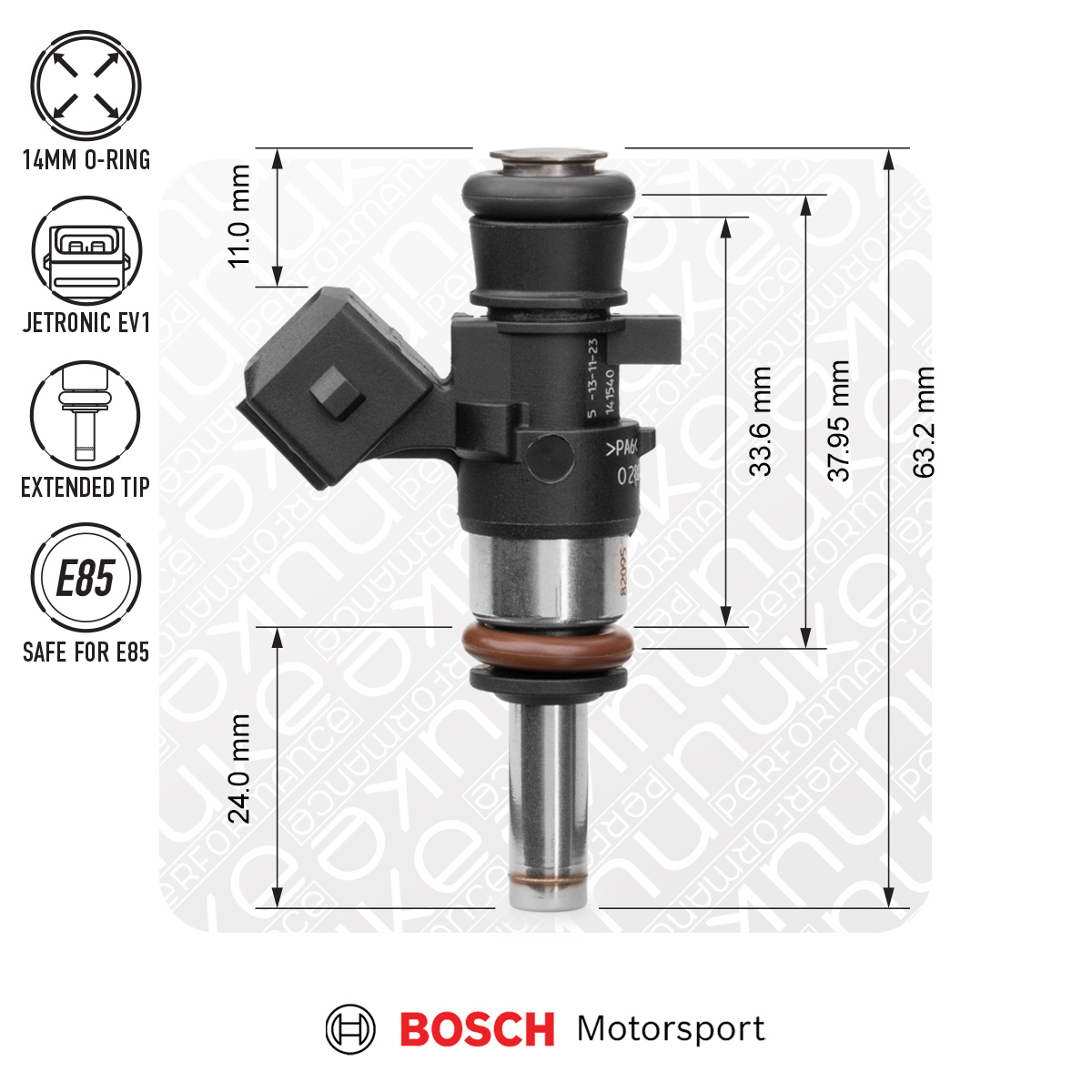

This injector is a Bosch EV14K Compact injector (33.60mm between O-rings / 37.95mm center to center of the O-rings).
• High impedance 1200cc injector from Bosch Motorsport
• Extended tip, Bosch EV14 K injector length
• Delivered without additional adapters
When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.
• Bosch Motorsport 1200cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.
| Bosch part number | 1280158xxx (modified) |
| OEM part number | N/A |
| Type - w/o included adapters | 39mm EV14K (Compact) |
| Type - with included adapters | No included adapters |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 12 ohm |
| Volume at 3 BAR | N/A |
| Fuel compatibility | Petrol / Gasoline / E85 / M100 * |
| Nozzle / Spray pattern | Extended tip / Single cone spray |
| For motorsports use | YES |
| Part # / EAN | 131-01-120 / 7340209508710 |
* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.
• Bosch 1200cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
• Learn more : Visit our FAQ / Injector calculator
| Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | N/A |
| 3 BAR (43.5 PSI) | N/A |
| 4 BAR (58 PSI) | N/A |
| 5 BAR (78.5 PSI) | N/A |
| 6 BAR (88 PSI) | N/A |
| 7 BAR (101.5 PSI) | N/A |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x157 = 157hp | 1x205 = 205hp |
| 4 cyl | 4x157 = 628hp | 4x205 = 820hp |
| 5 cyl | 5x157 = 785hp | 5x205 = 1025hp |
| 6 cyl | 6x157 = 942hp | 6x205 = 1230hp |
| 8 cyl | 8x157 = 1256hp | 8x205 = 1640hp |
| E85 (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x137 = 137hp | 1x171 = 171hp |
| 4 cyl | 4x137 = 548hp | 4x171 = 684hp |
| 5 cyl | 5x137 = 685hp | 5x171 = 855hp |
| 6 cyl | 6x137 = 822hp | 6x171 = 1026hp |
| 8 cyl | 8x137 = 1096hp | 8x171 = 1368hp |
Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).
• Bosch injector 1200cc, 65mm (EV14L) includes:
1 x Bosch Motorsport modified injector (# 0280158xxx modified)
• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical.
Bosch injector 1200cc, 65mm (EV14L), 4pcs flow matched Part # : 130-04-120
Bosch injector 1200cc, 65mm (EV14L), 5pcs flow matched Part # : 130-05-120
Bosch injector 1200cc, 65mm (EV14L), 6pcs flow matched Part # : 130-06-120
Bosch injector 1200cc, 65mm (EV14L), 8pcs flow matched Part # : 130-08-120
• Injectors - Everything you need to know (FAQ)
• Accessories / Spare Parts
