BMW 1 & 3 Series Diesel N47/M47 E8X/E9X (116D/118D/120D) Intercooler AirTec
Comes in black without logo if not specified!

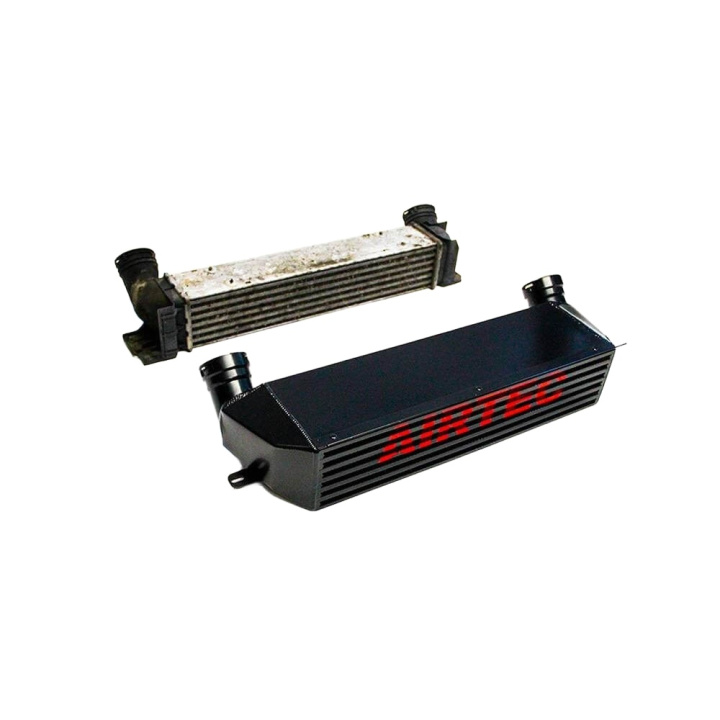

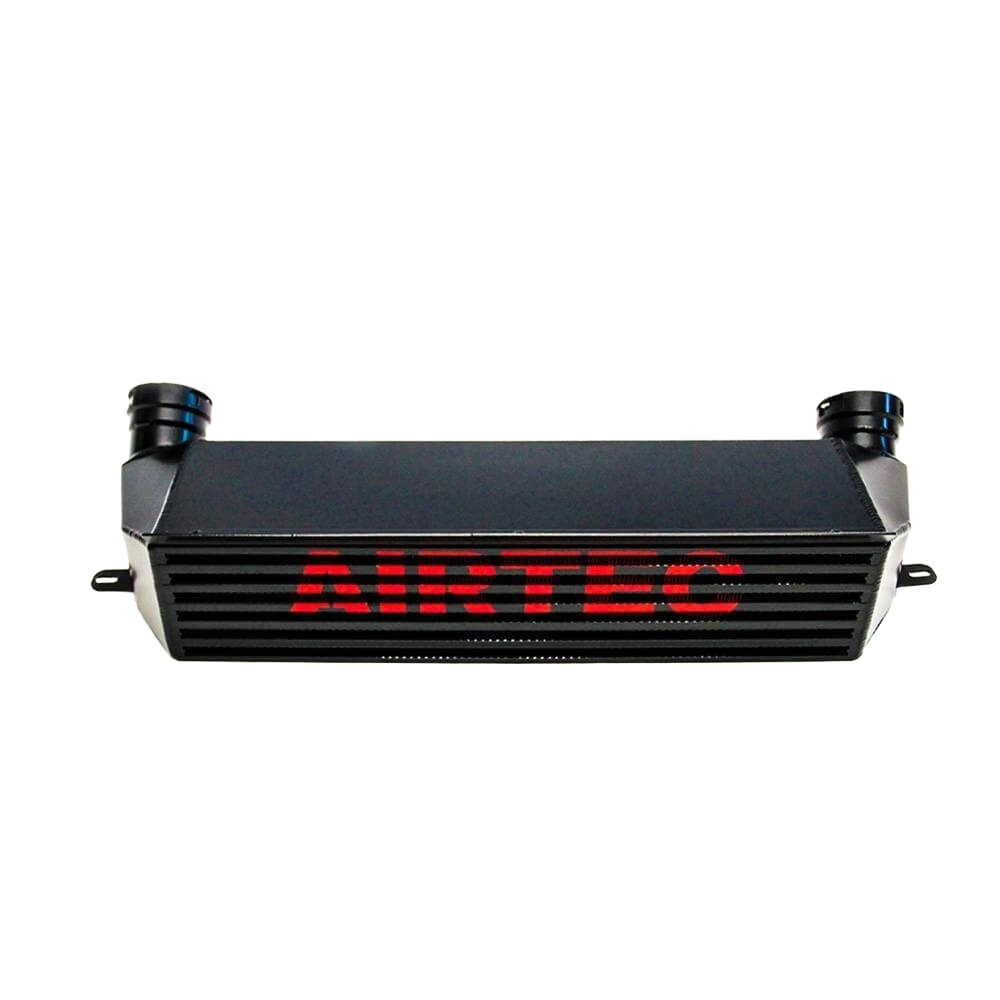

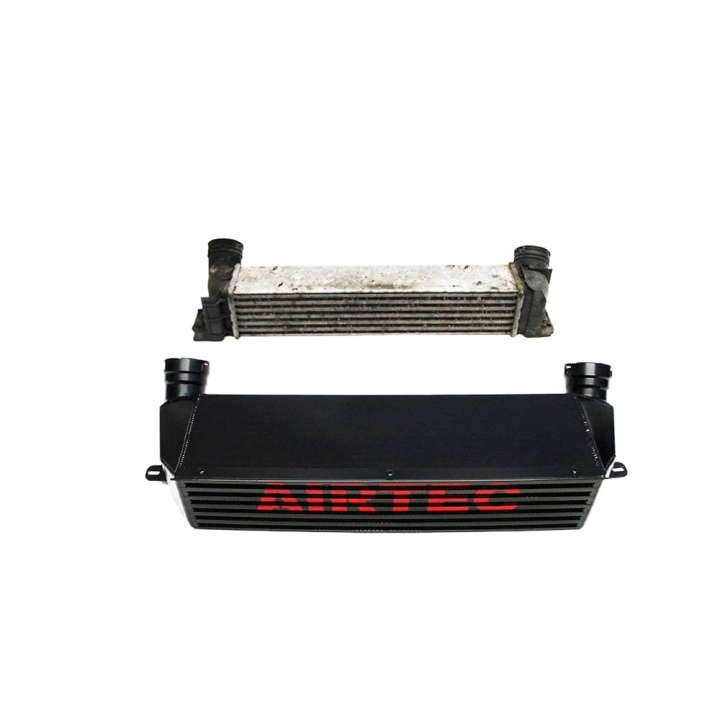

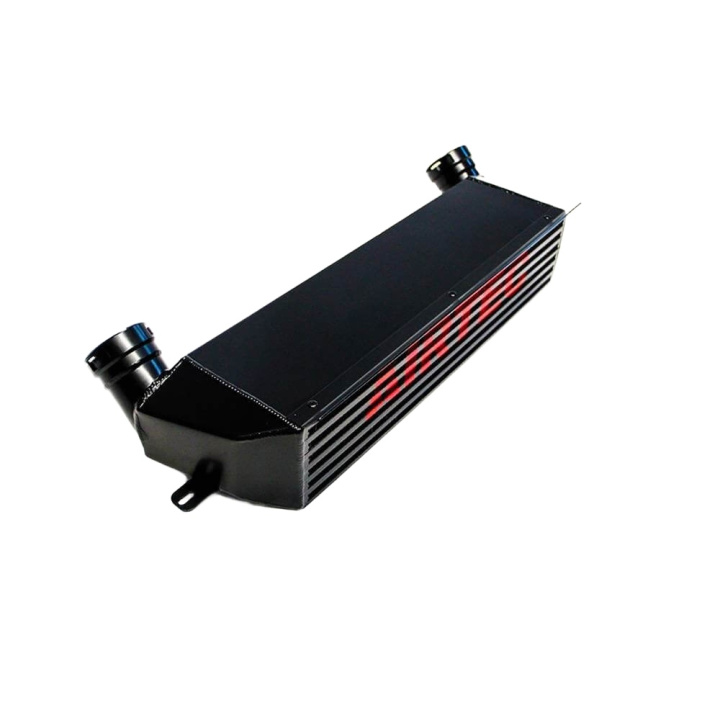

AIRTEC Motorsport front mount intercooler for the BMW 1 and 3 Series Diesel
Direct replacement of the standard intercooler, no drilling or cutting required! Designed to reduce air charge temperatures found on tuned diesel BMWs, with having an AIRTEC intercooler fitting and keeping temperatures low means a proven increase in power.
Features:
- AIRTEC huge 150mm thick core
- AIRTEC logo cast end tanks for improved air flow and unbeatable strength
- Lower intake temps meaning a safer engine and more power
- AIRTEC 3 year unlimited mileage warranty
- Available in Pro-Series Black only
- AIRTEC Logo at no extra cost
Specifications: BMW intercooler
- Width: 520mm
- Height: 100mm
- Thickness: 90mm
- Volume: 4.7 litres
- Frontal area: 47cm²
AIRTEC Motorsport intercooler:
- Width: 550mm
- Height: 110mm
- Thickness: 150mm
- Volume: 9.1 litres
- Frontal area: 61cm²
PLEASE NOTE – THIS INTERCOOLER IS A DIRECT REPLACEMENT FOR BMW PART NUMBER: 17517524916
Fits the following models only:
- 1-series E81 3-door (09/2006 — 12/2011)
- 1-series E81, 116d, 3 doors, N47
- 1-series E81, 118d, 3 doors, N47
- 1-series E87 Pre-facelift 5-door (02/2003 — 02/2007)
- 1-series E87, 118d, 5 doors, M47
- 1′-series E87, 120d, 5 doors, M47
- 1-series E87 LCI Facelift 5-door (01/2006 — 06/2011)
- 1-series E87 LCI, 116d, 5 doors, N47
- 1-series E87 LCI, 118d, 5 doors, N47
- 1-series E88 Cabriolet (03/2008 — 10/2013)
- 1-series E88, 118d, Convertible, N47
- 1-series E82 Coupe (06/2009 — 10/2013)
- 1-series E82, 118d, Coupe, N47
- 3-series E90 Pre-Facelift Saloon (02/2004 — 08/2008)
- 3-series E90, 318d, Saloon, M47
- 3-series E90, 318d, Saloon, N47 3-series E90, 320d, Saloon, M47
- 3-series E90 LCI Facelift Saloon (11/2007 — 10/2011)
- 3-series E90 LCI, 316d, Saloon, N47
- 3-series E90 LCI, 318d, Saloon, N47
- 3-series E91 Pre-facelift Touring (02/2004 — 08/2008)
- 3-series E91, 318d, Touring, M47
- 3-series E91, 318d, Touring, N47 3-series E91, 320d, Touring, M47
- 3-series E91 LCI Facelift Touring (02/2008 — 05/2012)
- 3-series E91, 316d, Touring, N47
- 3-series E91, 318d, Touring, N47
- X1 E84 (09/2008 — 06/2015)
- X1 E84, X1 16d, N47
- X1 E84, X1 18d, N47
- X1 E84, X1 18dX, N47
If in doubt, please measure the inlet and outlet or check the part number of your current intercooler.
This intercooler is suited for models with matching 62mm inlet and outlets. Later models have a 62mm inlet and 70mm outlet (this intercooler does not fit these).
AIRTEC part no: ATINTBMW3
