Nuke Performance fuel pump hanger for the classic BMW E36. This kit replaces the original fuel pump plate and enables an easy upgrade to a single- or dual-pump setup with high-flow aftermarket fuel pumps.
Precision-machined from high-quality materials and engineered for long-term reliability, this kit provides the perfect foundation for upgrading the fuel system on your BMW E36 while fully retaining the OEM fuel-level senders.
• Motorsports fuel pump hanger for BMW E36 1990-1999
• Fits 1-2 x high-pressure in-tank aftermarket fuel pumps
• Upgraded venturi jet pump included for higher flow rates
• Retains OEM fuel lever senders and filler hose
• Oversized AN-10 ORB outlet port ensuring sufficient fuel
• Approved for use with alcoholic fuels, such as E85
Designed for high-performance applications requiring increased fuel flow, this fuel pump hanger delivers a modern, service-friendly solution for both street and motorsport use. It retains the OEM fuel level senders for full factory fuel gauge functionality, features an upgraded saddle tank crossover system for improved fuel transfer, and installs without any cutting or modification to the vehicle.

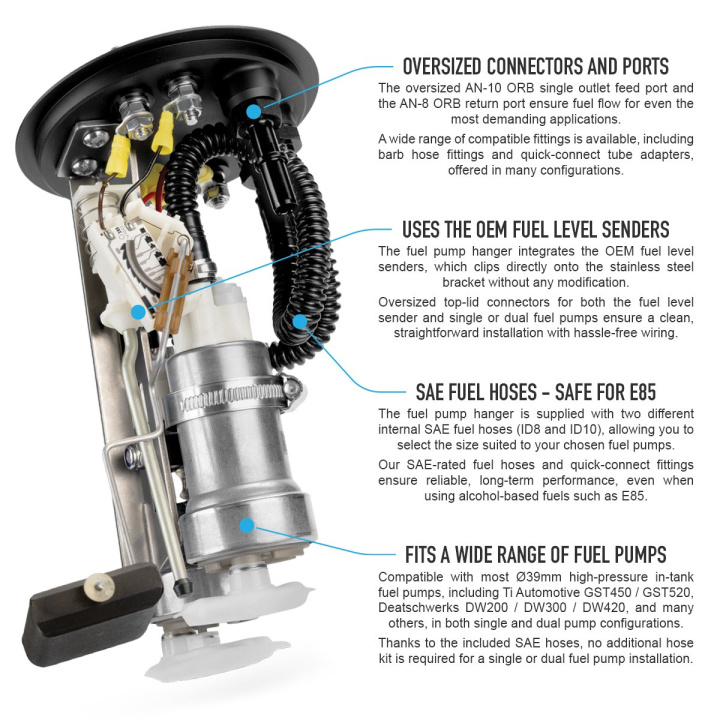

• Fuel pump compatibility of the BMW E36 Fuel Pump Hanger from Nuke Performance.
The BMW E36 Fuel Pump Hanger is delivered with internal SAE fuel hoses (both ID8 and ID10), allowing you to select the hose that best matches your chosen fuel pump. High-quality fuel hoses and connectors ensure reliable operation, even when used with demanding fuels such as ethanol (E85).

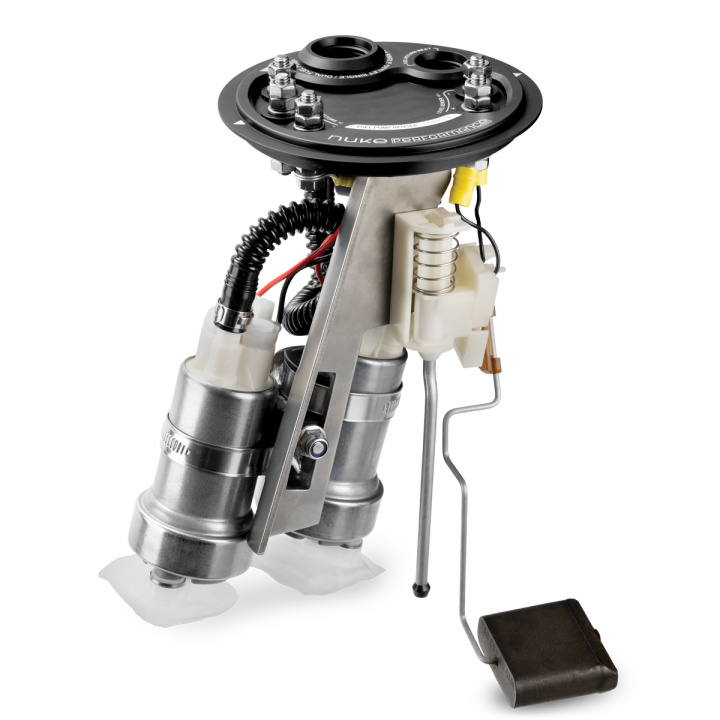

• Fuel pump hanger for 1-2x high-pressure fuel pumps
• Enables fuel flow sufficient for 1200hp on E85
• Enables fuel flow sufficient for 1600hp on Petrol
The fuel pump hanger is designed to support popular high-pressure in-tank aftermarket fuel pumps with an outer diameter of 39mm, such as Walbro (Ti Automotive) GSS340, GST450, and GST520, Deatschwerks DW200, DW300, and DW420, and many more. With the included internal fuel hoses and fittings, no additional hose kit is required when running either a single or dual fuel pump setup. We´ve got you covered.
• The BMW E36 Fuel Pump Hanger enables easy conversion to AN fuel lines for fuel system upgrades.
Designed for aftermarket AN fuel lines, it replaces one of the factory fuel pump lids and requires the return line to be rerouted to the new hanger. The hanger features a single oversized AN-10 ORB outlet and an AN-8 ORB return port, which also feeds the included high-flow venturi kit that transfers fuel between both sides of the tank. The factory venturi is replaced to support the increased flow demands of high-performance fuel systems. The OEM filler hose and fuel tank ventilation remain unchanged and can be retained.
Outlet port AN-10 ORB fittings:
AN-10 ORB swivel banjo to AN-6 Female Part # : 710-01-112
AN-10 ORB swivel banjo to AN-6 Male Part # : 710-01-109
AN-10 ORB swivel banjo to AN-8 Male Part # : 710-01-110
AN-10 ORB swivel banjo to AN-10 Male Part # : 710-01-111
Return port AN-8 ORB fittings:
AN-8 ORB swivel banjo to AN-6 Female Part # : 710-01-104
AN-8 ORB swivel banjo to AN-6 Male Part # : 710-01-101
AN-8 ORB swivel banjo to AN-8 Male Part # : 710-01-102
AN-8 ORB swivel banjo to AN-10 Male Part # : 710-01-103
• OEM fuel level sender integration, ensuring full function of the factory fuel gauge.

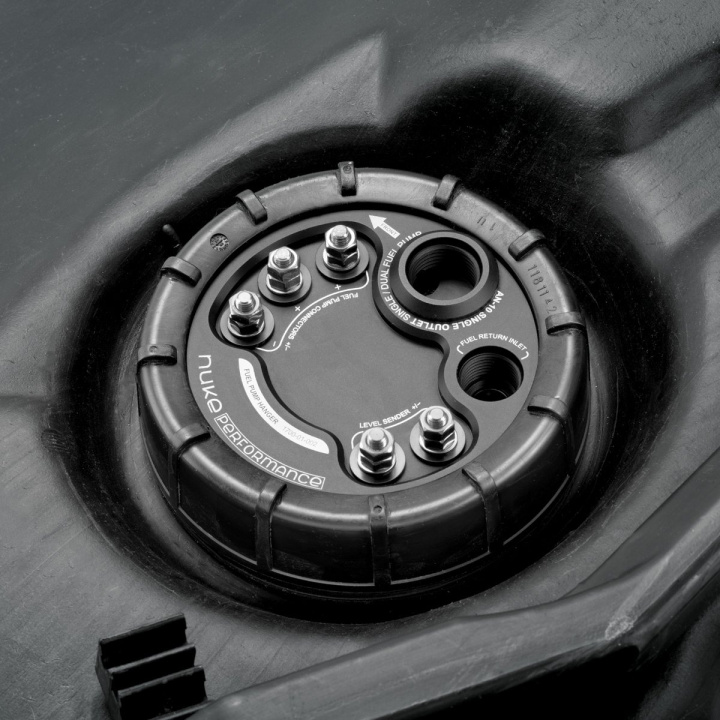

The fuel pump hanger replaces the LH factory fuel tank lid while retaining full functionality of the OEM fuel level system. Both factory fuel level senders remain in use without modification, including the secondary sender located on the RH side. Electrical connectors for the fuel pump and fuel level sender are integrated into the replacement LH lid, providing a clean installation and hassle-free wiring for high-performance fuel system upgrades.
Replacing only the LH top lid saves time on installation and cost, and is sufficient with all the needed features of a high-performance fuel system in the classic BMW E36.
• Upgraded venturi jet pump system for increased fuel flow capacity.
The BMW E36 Fuel Pump Hanger includes a high-flow venturi jet pump system that replaces the factory crossover components, ensuring reliable fuel transfer between both sides of the saddle-style fuel tank at higher fuel flow rates. The return line is rerouted to the replacement lid, while the factory crossover unit on the opposite tank lid is removed during installation. Two interchangeable flow adapters are included to optimize fuel transfer for different fuel pump setups and flow requirements.
• Designed and developed in Sweden, guaranteeing the highest possible finish, functionality, and quality.
Developed and designed in Sweden by Nuke Performance, the BMW E36 Fuel Pump Hanger is engineered to meet the demands of modern high-performance fuel systems while maintaining OEM functionality where it matters most. Built with the same attention to detail and uncompromising quality as all Nuke Performance lightweight motorsport products, every component is developed in close cooperation with motorsport teams worldwide to ensure proven performance, reliability, and ease of installation.
There is no substitute for the quality of Nuke Performance.
• BMW E36 Fuel Pump Hanger Specifications:
For more information about specifications, view the product manual.
| Compatibility | BMW E36 316i 1990-1999BMW E36 318i 1990-1998BMW E36 318is 1992-1998BMW E36 320i 1991-1998BMW E36 323i 1995-1998BMW E36 328i 1995-1998BMW E36 M3 1992-1999 |
| Electrical connectors | x 5 (max 125 ampere / each *) |
| - Connector points | M6 bolt connectors |
| Level sender compatibility | Reuses OEM LH / RH level senders |
| Vent port / Filler hose | Uses OEM fuel tank vent / filler hose |
| Fuel pump compatibility | 1 or 2 x 39mm outer diameter fuel pumps |
| Venturi/saddle tank functionality | YES, includes upgraded venturi jet pump |
| For motorsports use | YES, only for motorsports use |
| Outlet port, thread | AN-10 ORB, view assortment ** |
| Return port, thread | AN-8 ORB, view assortment ** |
| Fuel compatibility | Gasoline, Petrol, Methanol, Ethanol, E85 |
| Part # | 170-02-101 |
| EAN | 7340209512601 |
* for reference only
** not included, needs to be added as accessories
• Download Parts List (.pdf)
• Download Installation Manual (.pdf)
• Fuel pumps / Accessories

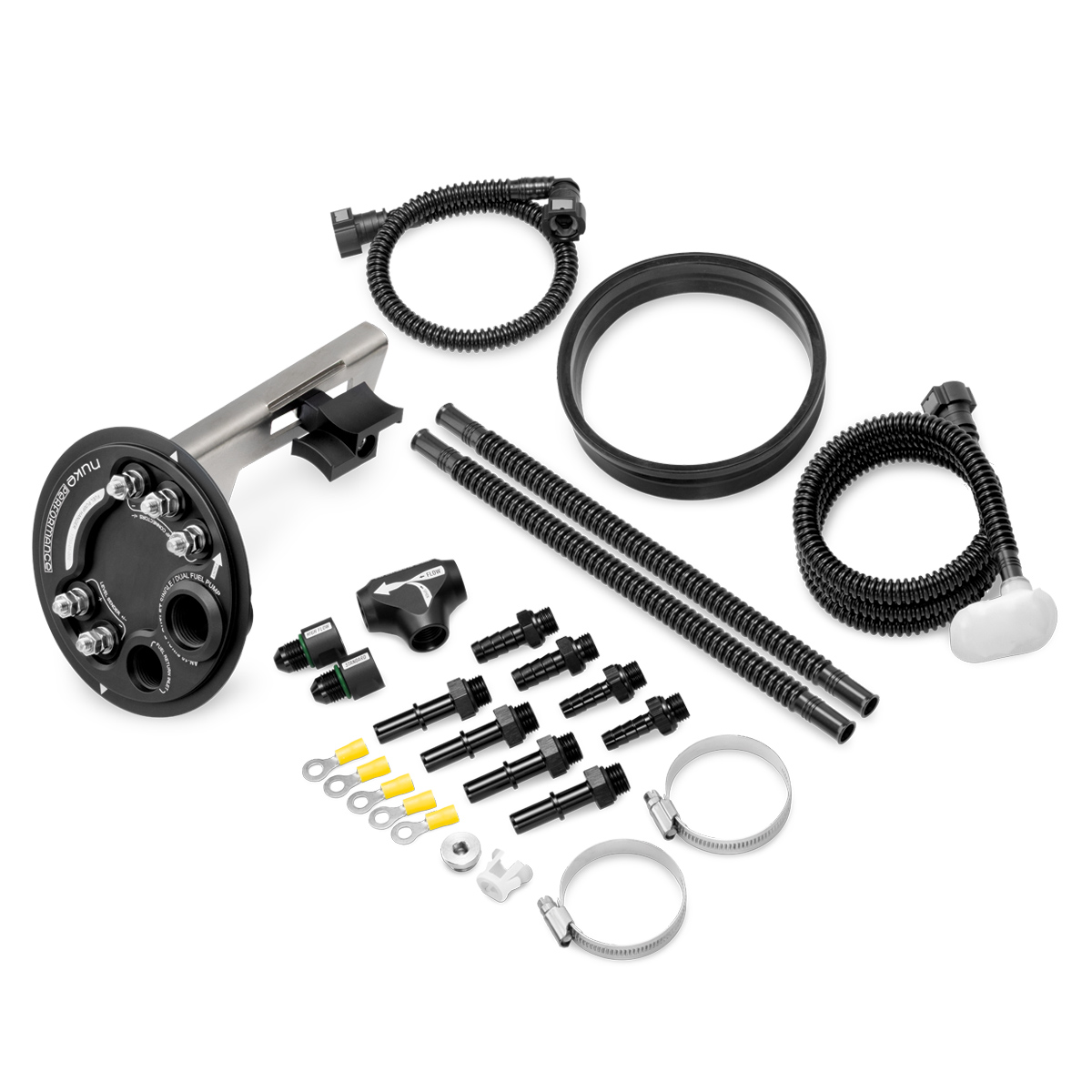

• BMW E36 Fuel Pump Hanger includes:

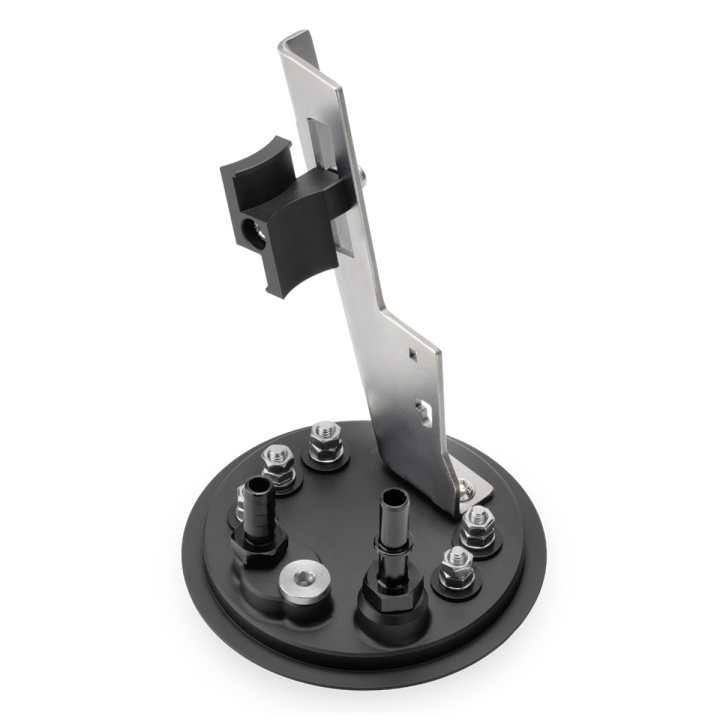

1 x Fuel pump hanger top lid for BMW E36 (LH side)
5 x M6 bolt electrical connectors
2 x Top lid rubber gasket (for both LH and RH sides)
4 x 1/4 BSPP to SAE 9.49 fittings
1 x SAE 9.49 spare plastic insert
1 x Block-off silicone cap for OEM return line fitting
1 x 1/4 BSPP Plug *
2 x SAE 250mm fuel hose for fuel pump with OD 8mm connector *
2 x SAE 250mm fuel hoses for fuel pump with OD 10mm connector *
2 x 1/4 BSPP to 8mm fittings *
2 x 1/4 BSPP to 10mm fittings *
1 x Upgrade venturi jet pump kit with standard flow / high flow adapters **
1 x SAE 9.49 1000mm fuel hose for venturi jet pump kit **
1 x SAE 9.49 400mm fuel hose for venturi jet pump kit **
4 x SAE single ear hose clamp for SAE fuel hose
2 x Stainless steel 44-56mm hose clamp
* Hoses and fittings for both single and dual setups of both 8 mm and 10 mm outlet fuel pumps are included; use only the one that fits your selected fuel pumps.
** The kit includes an upgrade saddle-tank crossover kit that replaces the OEM venturi system.
• No fuel pumps are included with the fuel pump hanger.
The BMW E36 Fuel Pump Hanger is supplied without fuel pumps. Select compatible pumps separately to suit your application.
