BMW B58 F2X/F3X LCI Chargecooler Uppgrade AirTec
We’re proud to launch our front mount chargecooler radiator upgrade aimed at BMW B58 models for fast road or track use.
The Issue As the performance of chargecooled-engines depends on the temperature of the coolant inside the system, it’s very important to ensure it runs as cool as possible for as long as possible. As the standard system can struggle to maintain temperature, especially on a tuned application, the keys to ensuring a consistently lower running temperature are to increase the capacity of the system and its ability to cool it.

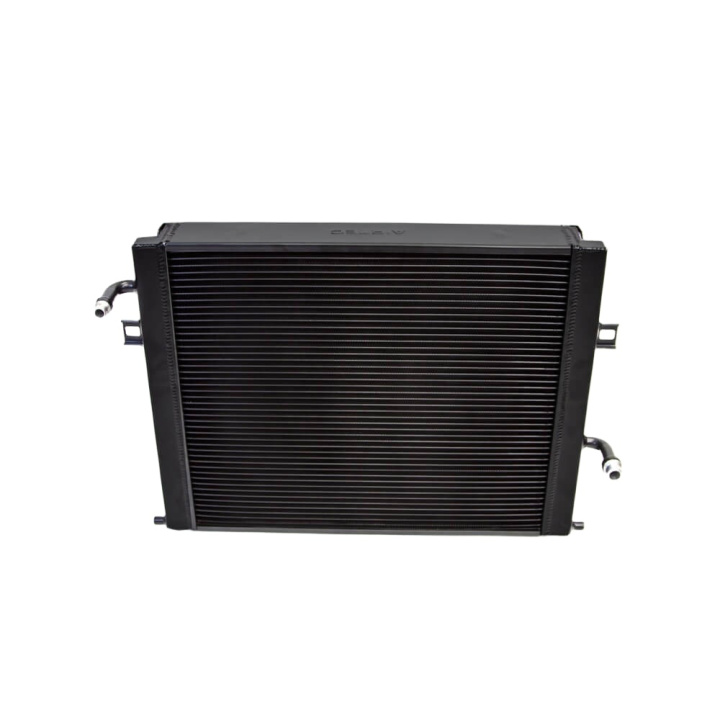

The Solution AIRTEC Motorsport’s solution to improving the original set up with the limited space available behind the bumper to make it any wider or taller was to instead extend it forwards by introducing a core that’s nearly 60mm thicker, at 90mm in depth. This allowed the use of a triple pass core design to allow the coolant to pass through the radiator three times before it exits, with capacity increased to a huge 23.3 litres, compared to the original 7.7 litres; a gain of 203%.

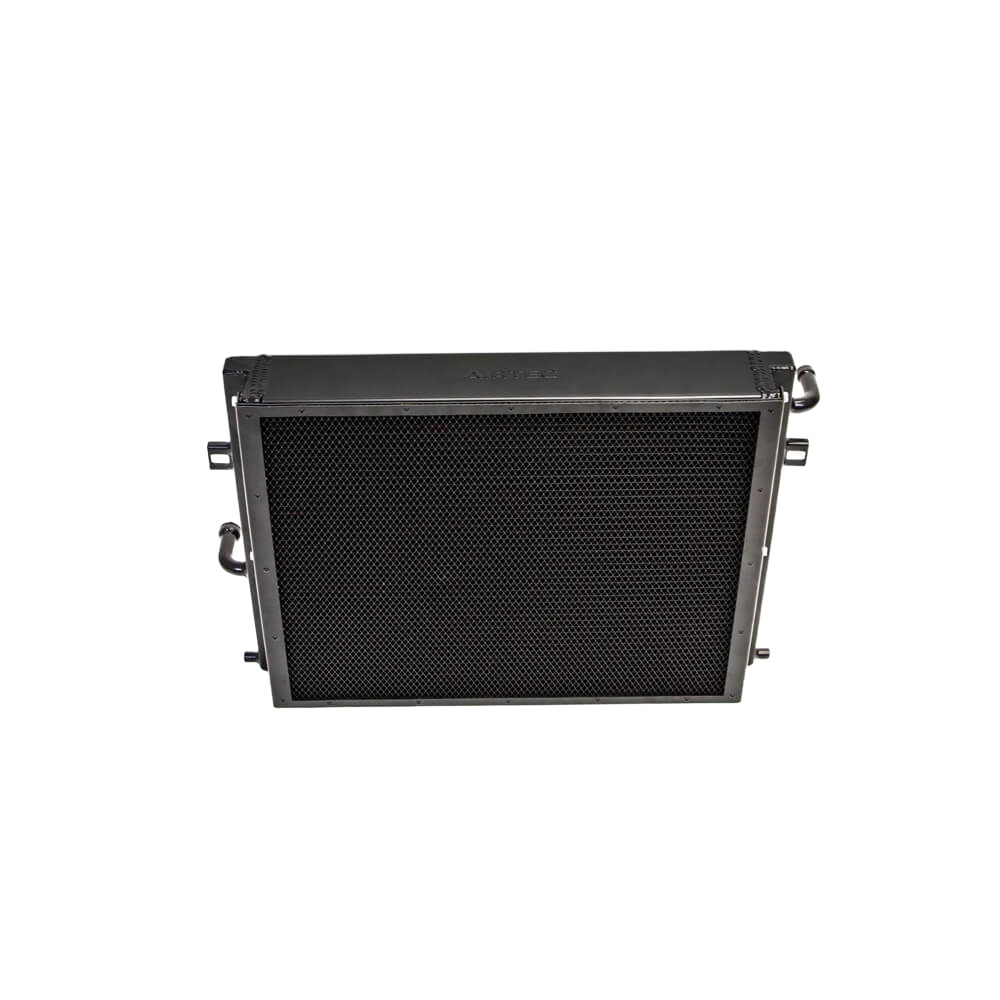

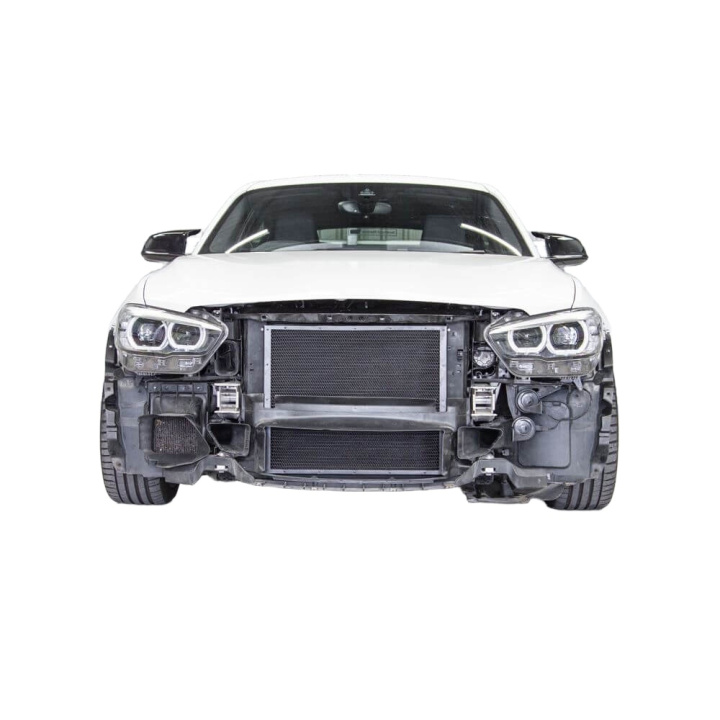

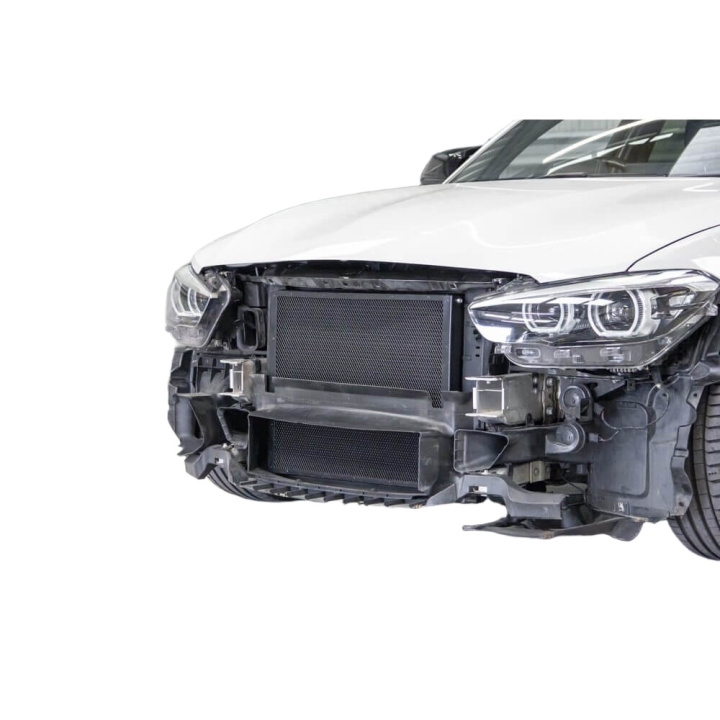

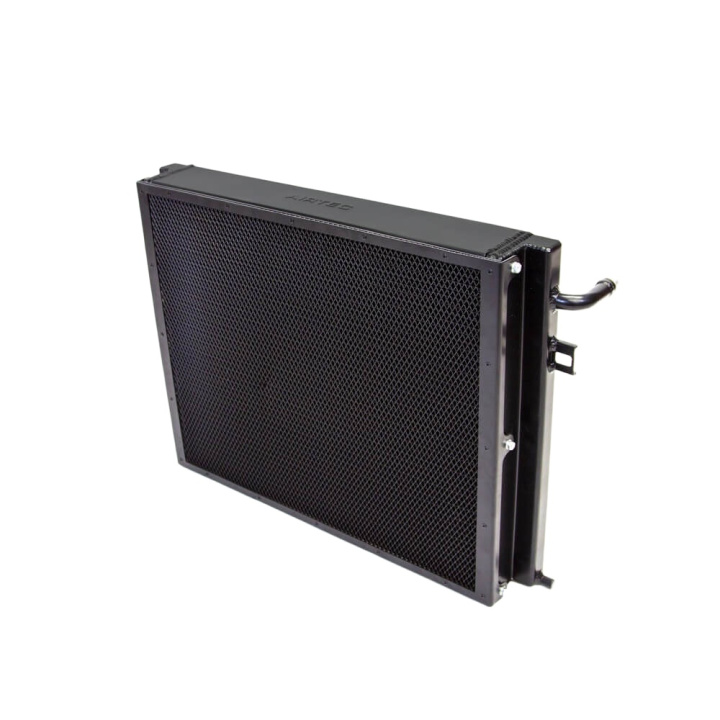

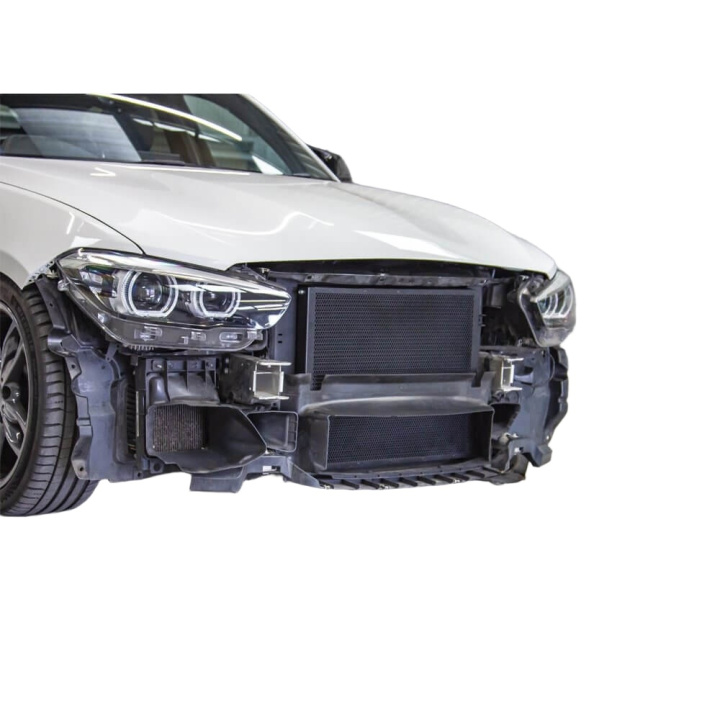

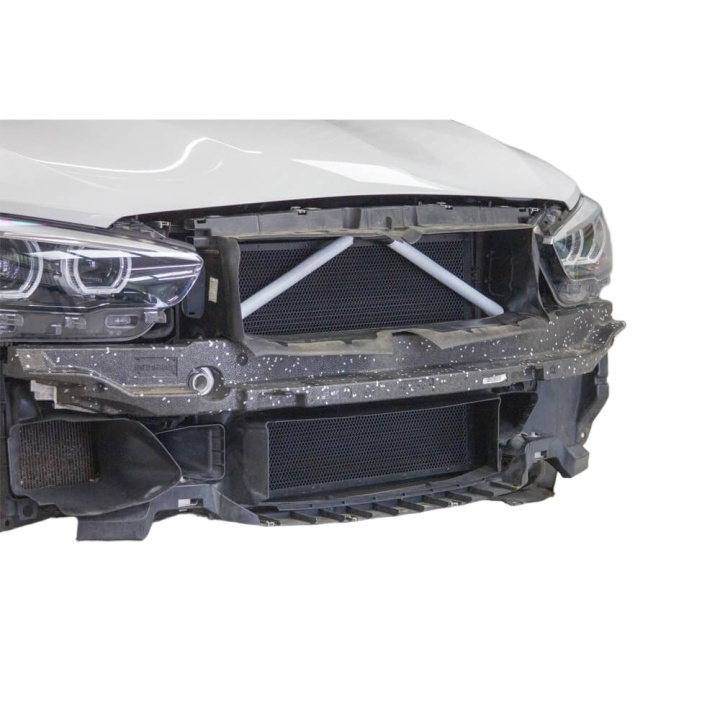

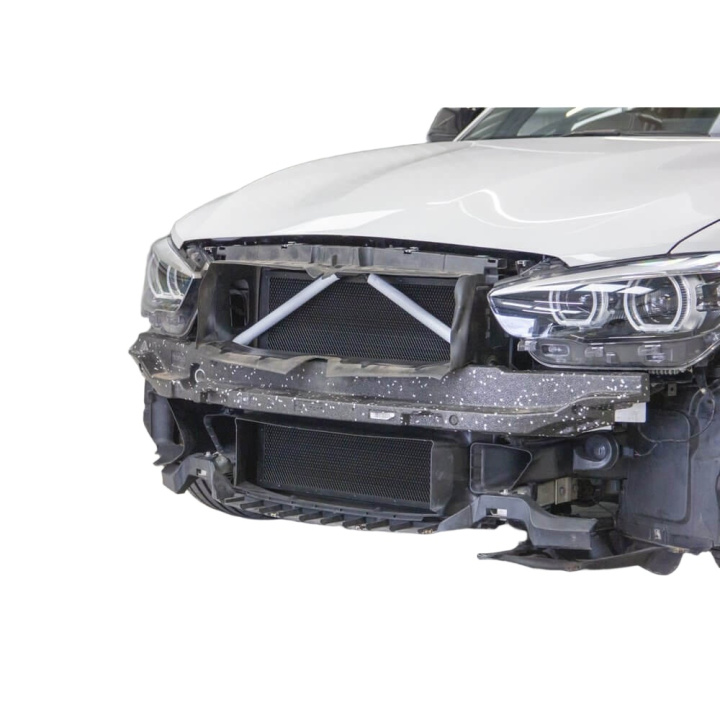

Despite the huge cooling capacity increase that allows the chargecooler system to run cooler for longer, the radiator fits neatly behind the bumper and requires no modifications to fit, using the OEM mounts and the original coolant connectors. To protect the larger core in its vulnerable position at the front of the car, there is also a stone guard.
Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes all fixtures and a detailed instruction fitting guide.
Dimensions:
OEM chargecooler radiator:
- Width: 576mm
- Height: 495mm
- Depth: 27mm
- Capacity: 7.7 litres

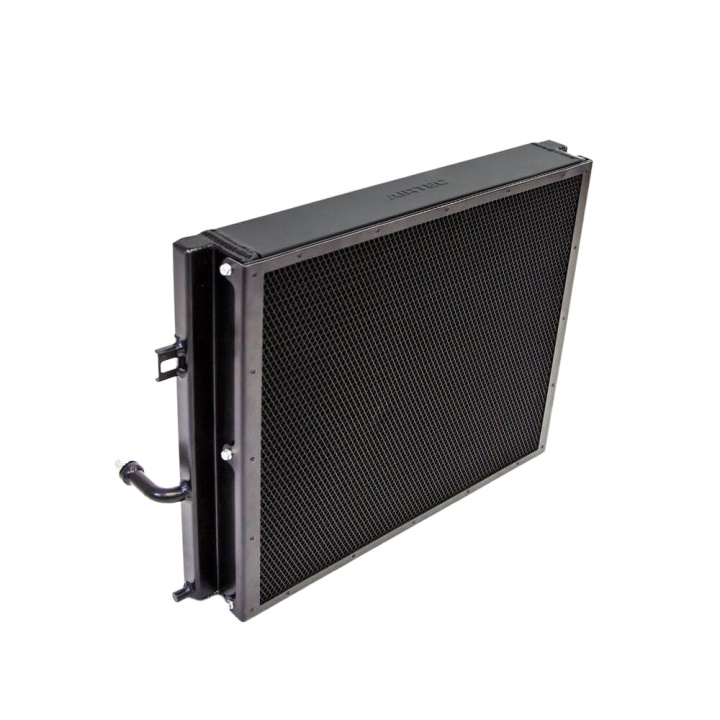

AIRTEC Motorsport chargecooler radiator:
- Width: 550mm
- Height: 470mm
- Depth: 90mm
- Capacity: 23.3 litres
Fitment:
- 2015 to 2019 – BMW 120i/125i/M140i (F20/F21 LCI)
- 2016 to 2019 – BMW 220i/230i/M240i (F22/F23 LCI)
- 2014 to 2019 – BMW 320i/330i/340i (F30/F31/F34/F35 LCI)
- 2016 to 2019 – BMW 420i/430i/440i (F32/F33/F36 LCI)
Features:
- Specifically designed for the B58 platform
- 203% increase in overall capacity in comparison to original
- Triple-pass design for improved cooling
- Huge increase in cooling ability
- Protective stone guard to shield the core
- Powder coated black finish
- Direct fit with no cutting or trimming
- Includes fittings and fixtures
- Detailed fitting guide included
