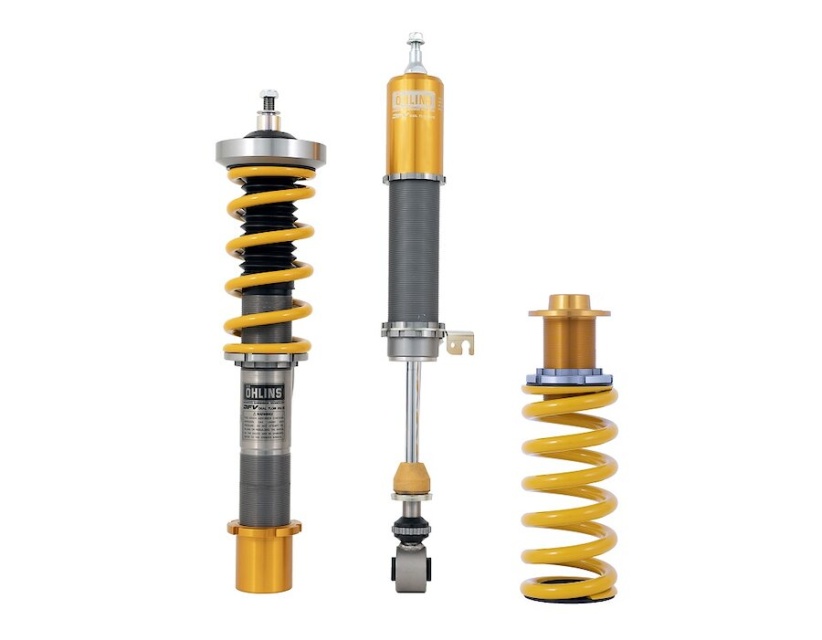

BMW 1-/2-/3-/4-Serie (F & G) 2012+ Road & Track Coilover Kit Öhlins
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:
- DFV technology (Dual Flow Valve)
- Individual height adjustment
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty

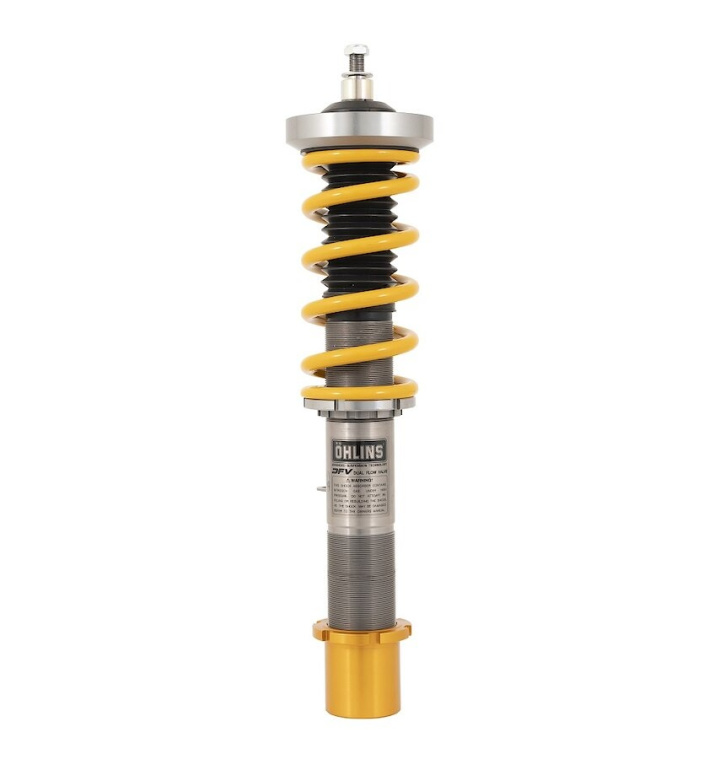

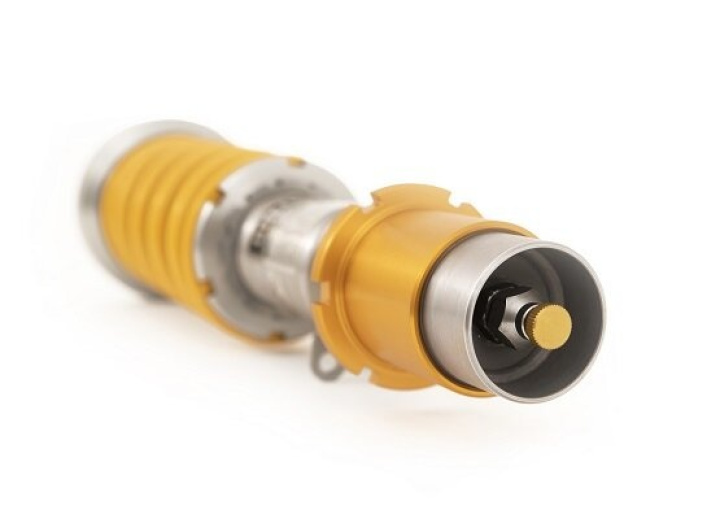

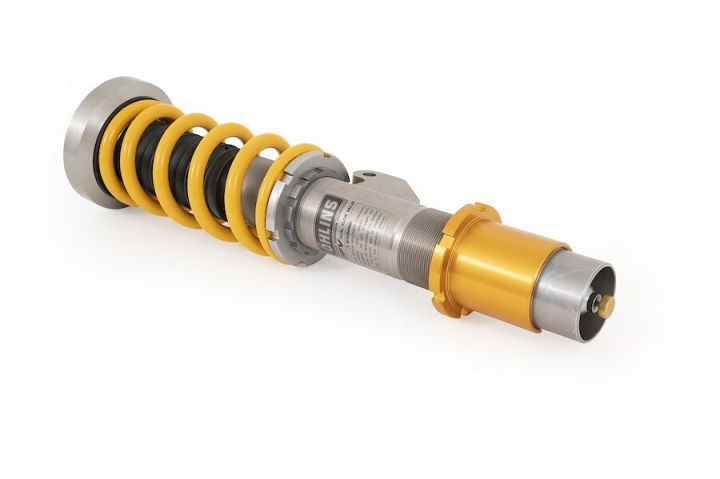

Features Front:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 20 - 30 mm lower than standard with recommended setup
- Spring rate 80 N/mm
- Use with original top mounts

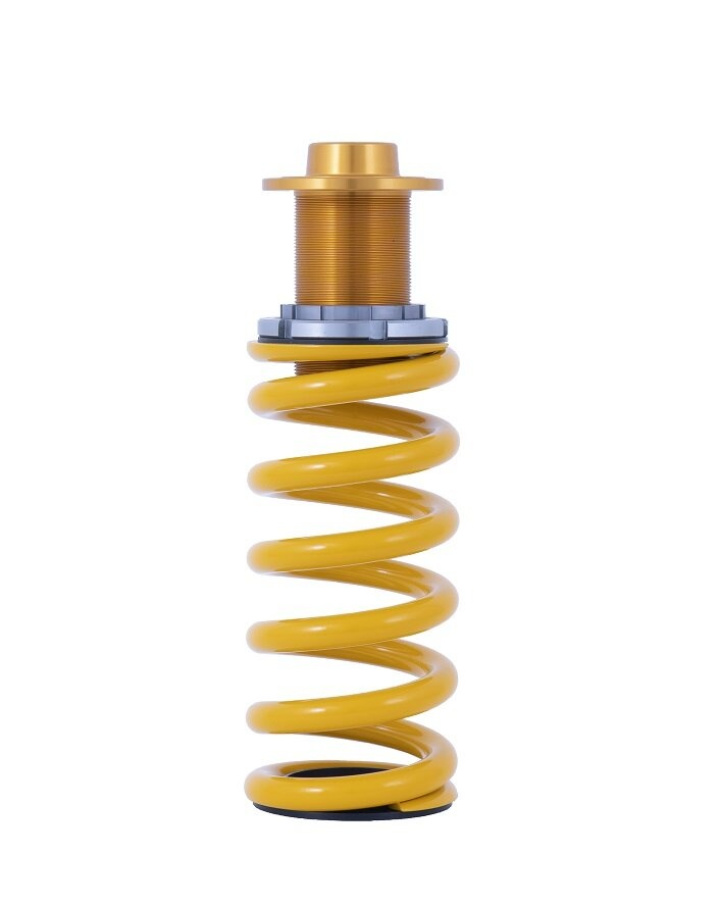

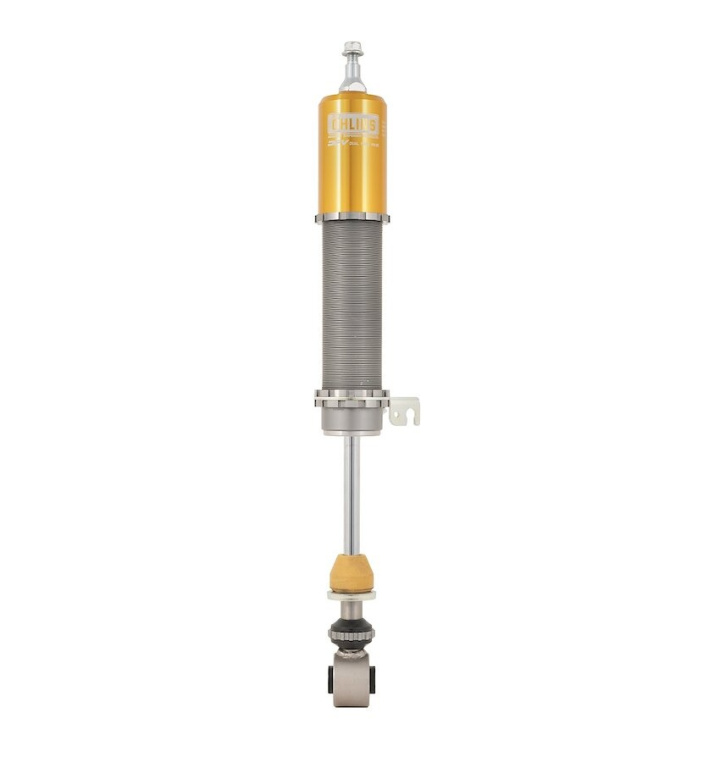

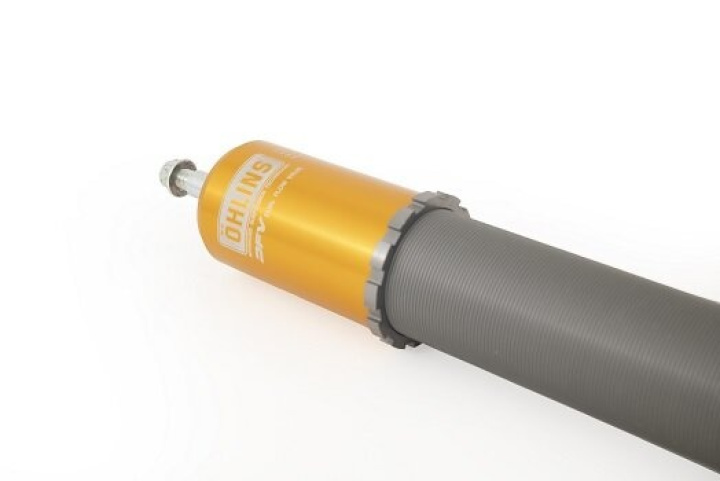

Features Rear:
- Conventional Shock Absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 20 - 30 mm lower than standard with recommended setup
- Spring rate 140 N/mm
- Use with original top mounts
Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
Fits the following vehicles
BMW 1-Series (F20, F21) incl. xDrive, 2011 – 2019
BMW 2-Series (F22, F23) incl. xDrive, 2013 –
BMW 3-Series (F30) incl. xDrive, 2012 – 2017
BMW 3-Series (G20) incl. xDrive, 2019 –
BMW 4-Series (F32, F33, F36) incl. xDrive, 2013 – 2020
