APR 17-24 Audi RS3/18-22 Audi TT RS Quattro 980cc Multiport Injection (MPI) Injector Kit

Name: APR 17-24 Audi RS3/18-22 Audi TT RS Quattro 980cc Multiport Injection (MPI) Injector Kit
Brand: APR
SKU: aprMS100195
Price: 240 EUR
Availability: InStock

Article nr:

aprMS100195

APR 980cc MPI Injector Kit

Delivery: Special order

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description

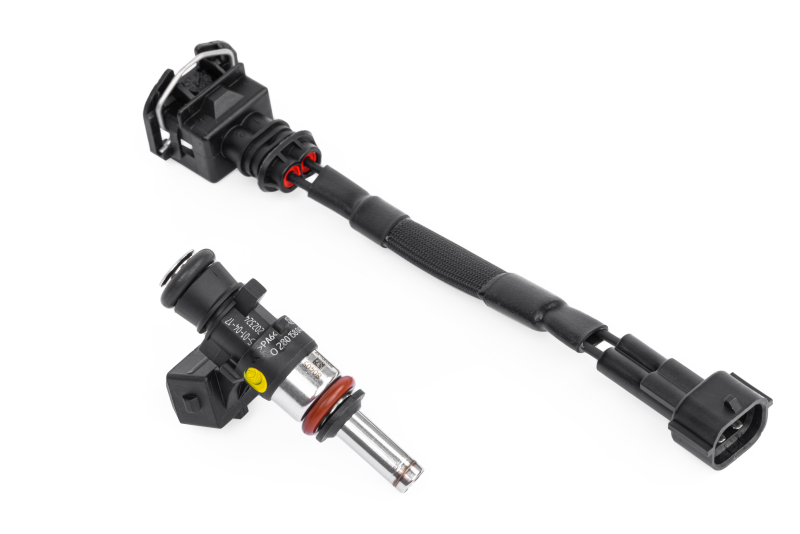

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.
30° single cone spray angle with 0° bent angle and 0° gamma angle
Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3
where supported
Supports up to 8 bar of use in motorsport configurations
980cc/min
670g/min
or 89lb/hr @ 3 bar (n-heptane)
150 mm long harness with braided wire sheathing

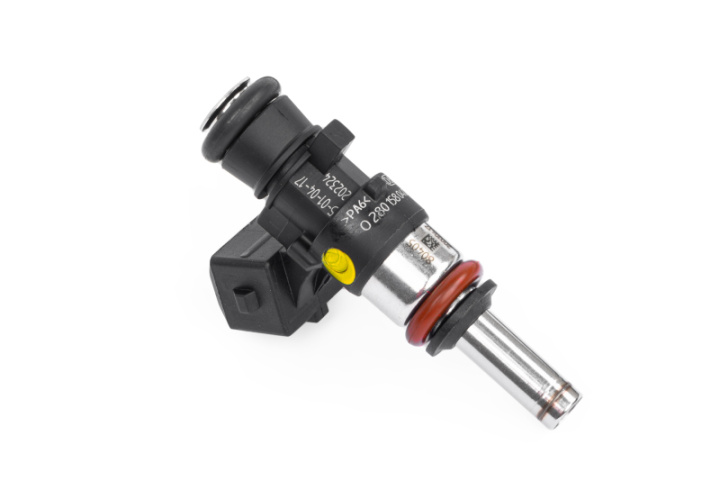

Bosch EV 14 CKxT MPI injector (0280 158 040)

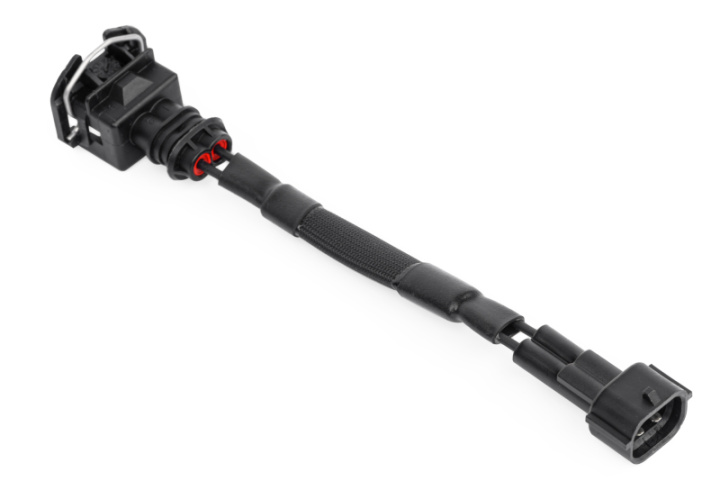

APR Bosch Jetronic to OEM 2 pin harness
ECU software required for use

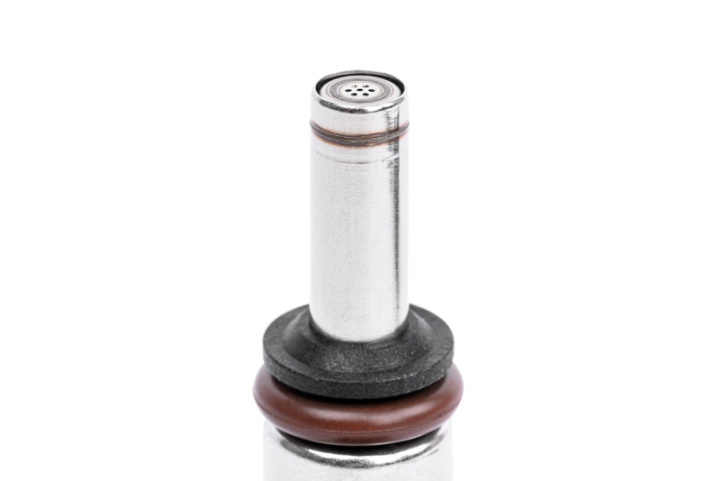

24mm extended tip nozzle
E85 and M100 compatible
12 ohm coil resistance
33.6mm compact body
Top-feed injector
On the 2.5 TFSI EA855 EVO the injector is plug-and-play with software. On the EA888 Gen 3, the injector is plug-and-play, with software, on models that include factory MPI injection. On models without factory MPI injection, more components are required. If used for methanol injection, the valves must be flushed with standard gasoline after use.

Product video

Technical specification

Article nr:
aprMS100195

Manufacture Partnumber: MS100195
