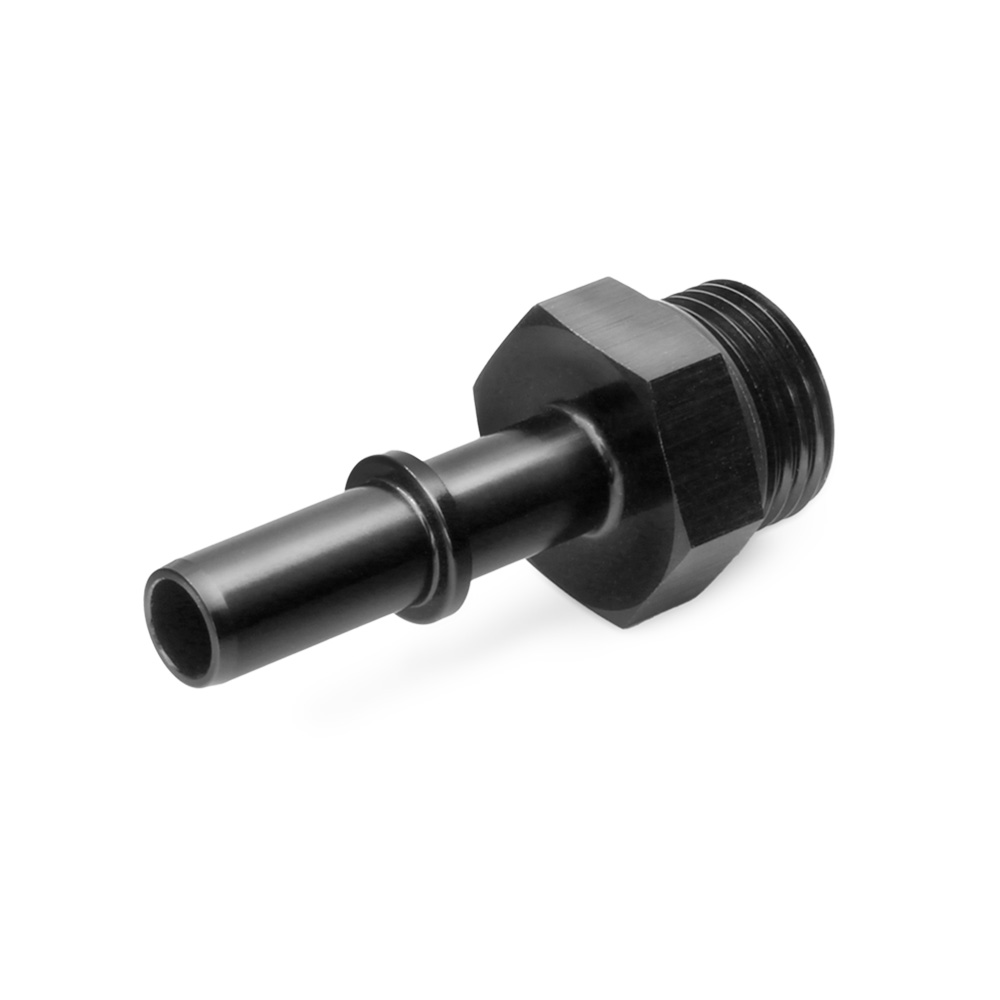

High-flow sealed ORB to SAE J2044 Male fittings. Safe for all fuels, including alcoholic fuels such as ethanol.
Use together with the in-tank ethanol-proof and pre-assembled fuel hoses. The SAE line-up is a standardized fuel line system, used within motorsports and sports car manufacturers. Enable easy mounting and quick service possibilities thanks to its quick-connect fittings.
Equipped with Viton O-rings, safe for all types of fuels, including alcoholic fuels such as E85. Available with AN6, AN8, and AN-10 ORB thread and SAE J2044 Male ends of 7.89 (5/16") and 9.49 (3/8").

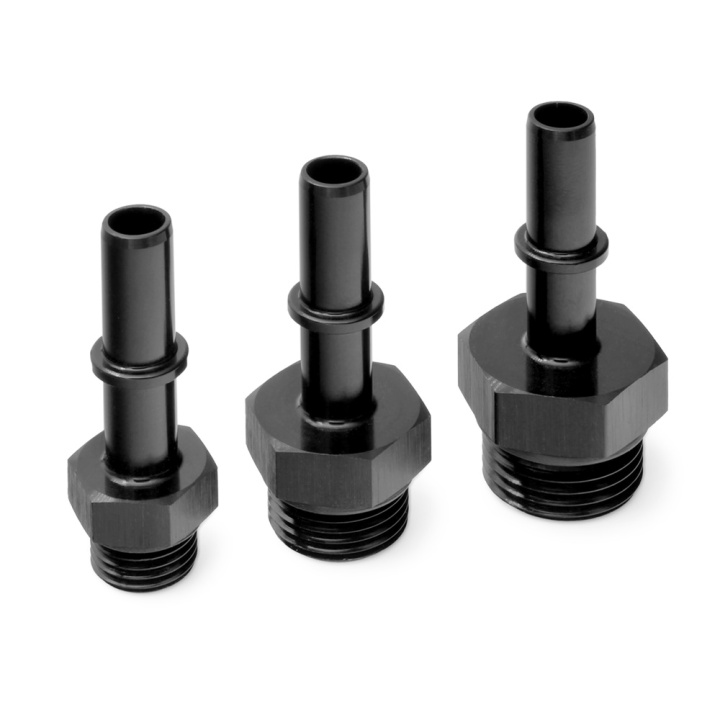

Available in different sizes :
AN-6 ORB to SAE J2044 Ø7.89 (5/16") Male Part # : 150-20-421
AN-8 ORB to SAE J2044 Ø7.89 (5/16") Male Part # : 150-20-422
AN-10 ORB to SAE J2044 Ø7.89 (5/16") Male Part # : 150-20-423
AN-6 ORB to SAE J2044 Ø9.49 (3/8") Male Part # : 150-20-424
AN-8 ORB to SAE J2044 Ø9.49 (3/8") Male Part # : 150-20-425
AN-10 ORB to SAE J2044 Ø9.49 (3/8") Male Part # : 150-20-426
AN-10 ORB to SAE J2044 Ø15.82 (5/8") Male Part # : 150-20-429
Used on Nuke Performance products:
- Fuel Surge Tanks for internal fuel pumps
- CFC Unit, Competition Fuel Cell Unit
- Fuel rails
- In-line fuel filters
- Fuel pressure regulators
- Fuel sensors
If you wish to change or complement the use of fittings of the highest quality, we recommend that you use our fittings which are designed to withstand high power and excessive wear and in the right combination with the products they were intended for.
Available in several sizes, make sure to choose the preferred size when placing an order.
Quantity : 1pc
