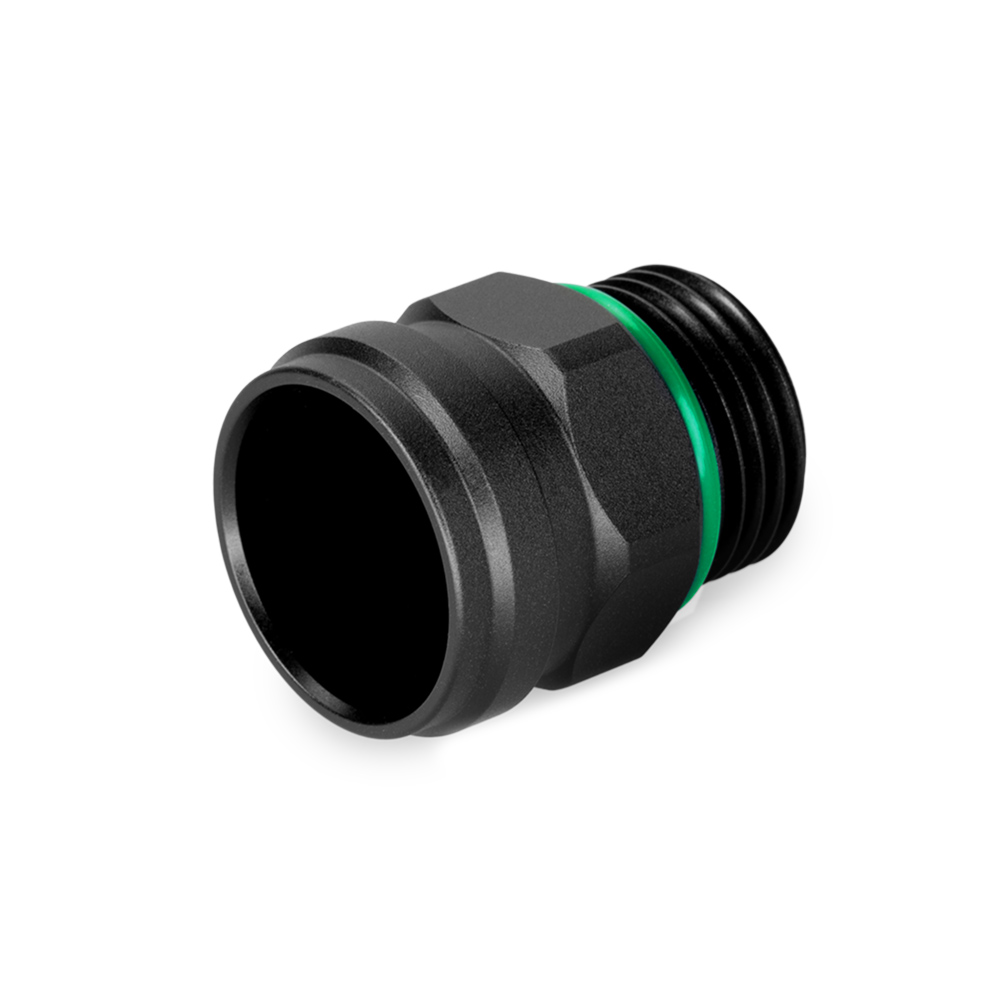

AN-10 ORB Male to BQL 22 Female fitting, combines a wide range of fittings to the BQL system from Nuke Performance.
The AN-10 ORB Male thread suits the Nuke Performance range of universal oil catch cans (available here) and lets you attach the BQL lines to your catch can installation. The BQL 22 Female port connects to the BQL Male hose ends, available as straight (available here) and 90-degree (available here).
• Nuke Performance BQL adapter
• AN-10 ORB male to BQL 22 female adapter
• Maximized flow thanks to its oversized internals
• Works with all Nuke Performance Oil Catch Cans
• Used as the BQL fitting for your oil catch can
The AN-10 ORB Male to BQL 22 Female fitting lets you mount your BQL line to your oil catch can equipped with AN-10 ORB threads, such as the range of Nuke Performance universal oil catch cans available in various versions and sizes (available here). The fitting mounts straight to the catch can inlet and outlet ports and converts your catch can to a BQL quick-connect connection. When running a recirculating setup you need two or three of these adapters, and if running an atmospheric setup you need one or two of these adapters depending on your setup and selection of catch can.
• View the range of universal oil catch cans
• View the full range of BQL system parts
• The Nuke Performance BQL system is the ideal solution for your oil catch can installation, a flexible and lightweight full-flow solution.

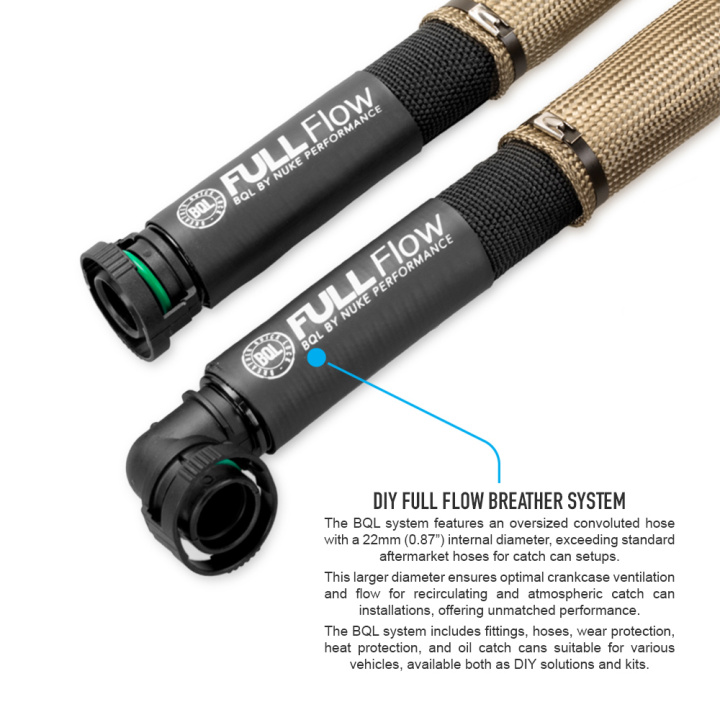

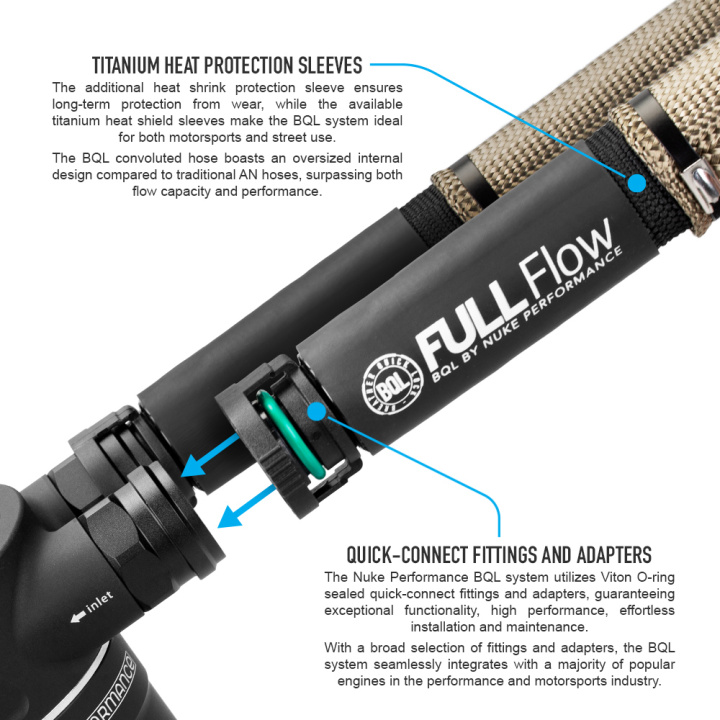

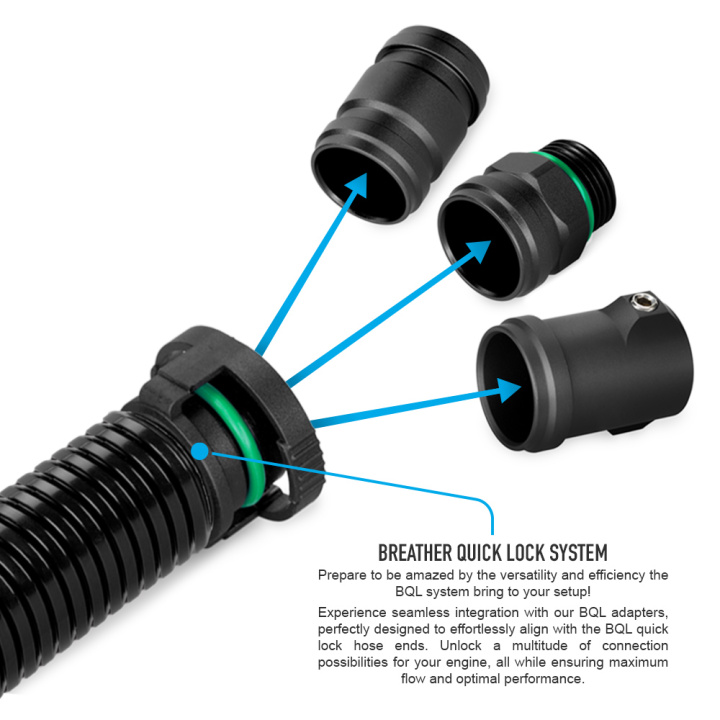

The BQL (Breather Quick Lock) system from Nuke Performance offers a full-flow breather hose solution with minimized flow loss thanks to its oversized internals. The lightweight and flexible convoluted BQL hose combines with the BQL male hose ends. It connects to your manifold, catch can, and valves thanks to the wide range of adapters and fittings available (available here).
When paired with Nuke Performance's range of oil catch cans (available here), or those from other manufacturers, the BQL system emerges as the optimal choice for both street and motorsport oil catch can installations.
Quantity : 1pc
• AN-10 ORB to BQL 22 Female fitting Specification :
For more information about the product, contact us directly.
| End port # 1 | BQL 22 Female |
| End port # 2 | AN-10 ORB Male |
| Model adapted | Fits straight to all Nuke oil catch cans * |
| Length | 34.0mm (1.34") |
| Diameter | 28.0mm (1.10") |
| Weight | 14.0g (0.49oz) |
| Part # / EAN | 290-22-102 / 7340209506181 |
* this fitting is not model adapted, universal fitment within the BQL system
