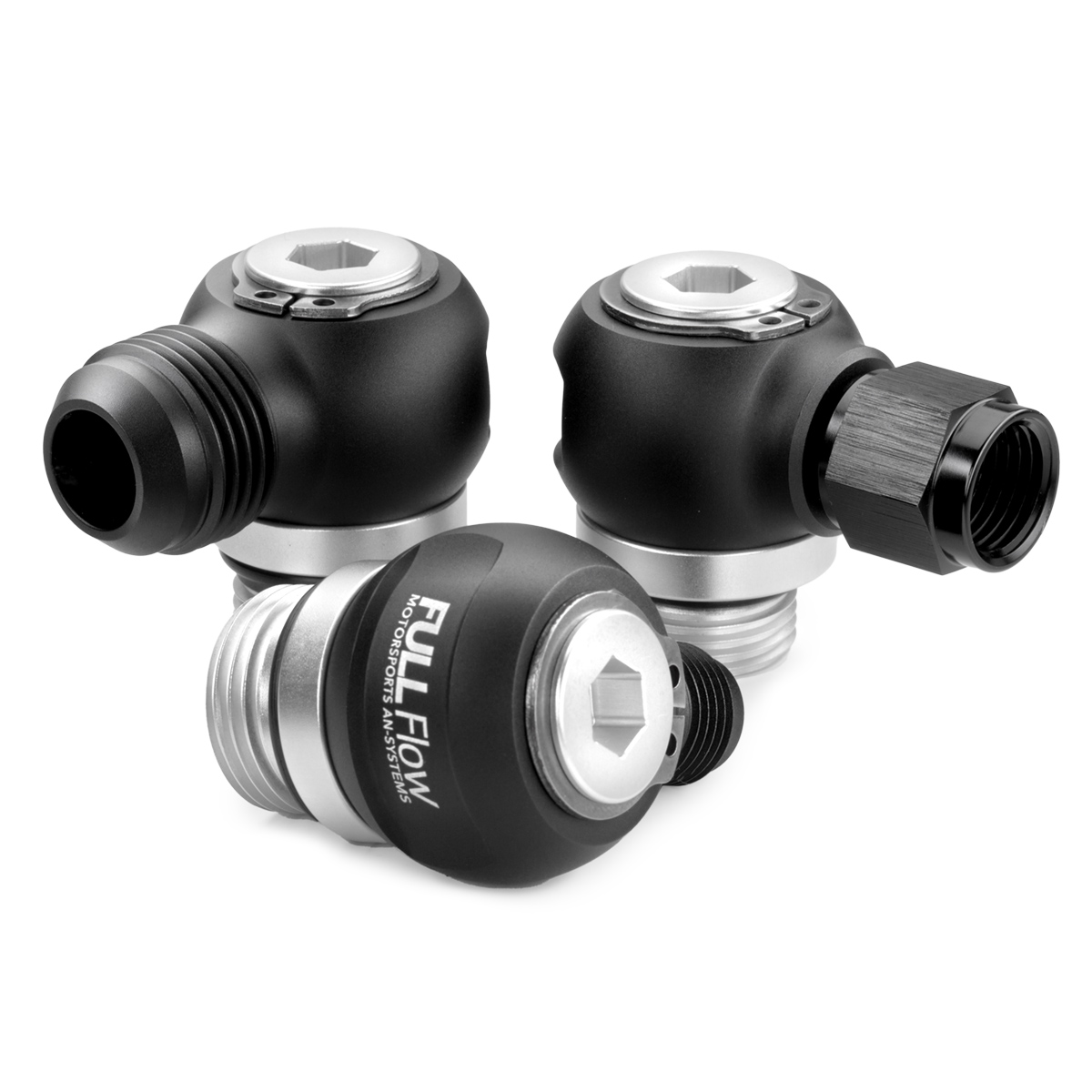

Nuke Performance Full Flow Swivel Banjo fittings are available in many sizes, and versions, and both with male and female output.
The AN-10 ORB full flow swivel banjo fittings allow for a space-efficient installation with minimal flow loss, thanks to the oversized full-flow internal design. The fitting provides 360-degree rotation even when tightened and is safe for use with all types of fuels, including alcoholic fuels.
• Swivel design, 360° rotation even when tightened
• Oversized internal full-flow design, minimal flow loss
• A low-profile banjo fitting enables space-efficient installations
• Safe for all types of fuels, including alcoholic fuels such as E85
• Leak proof for both low and high-pressure installations

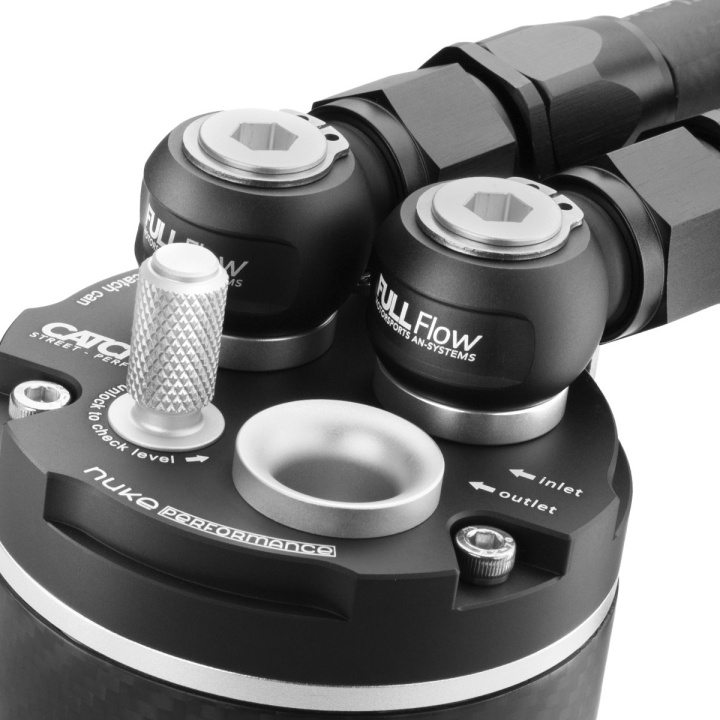

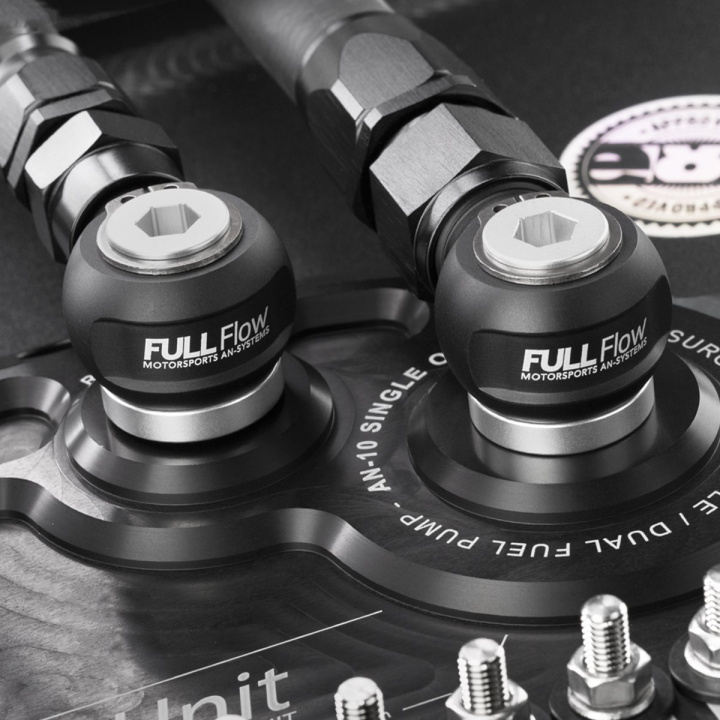

The Nuke Performance banjo fittings are available in numerous versions, making them ideal for various applications in your fuel system, oil system, vacuum, and crankcase catch can installations. They are safe for all fuels, thanks to their dual Viton O-rings setup. The Nuke Performance Full Flow Swivel Banjo fittings represent the next level of engineering for a 90-degree banjo fitting.

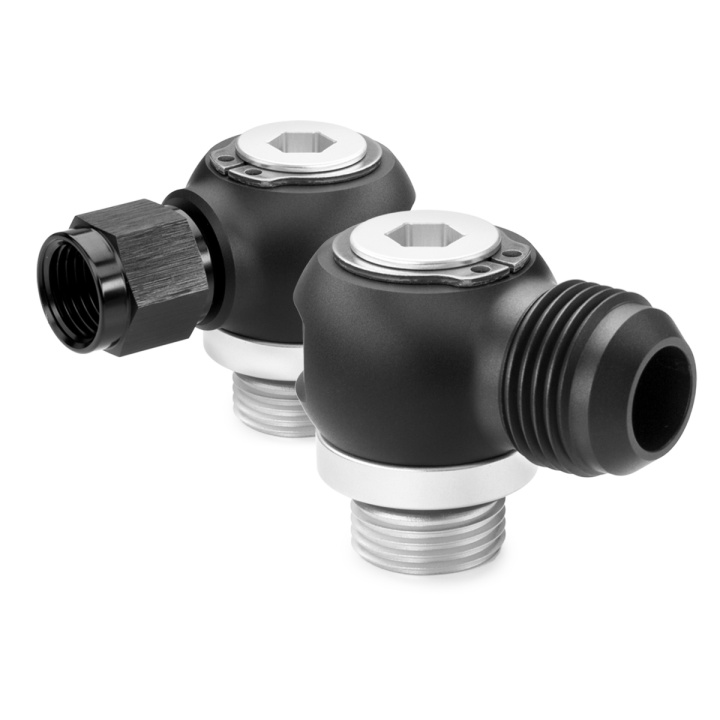

• The female outlet swivel banjos give you endless possibilities and installation options.
Offered with both male and female outlets, the female port provides flexibility to adapt Nuke Performance Full Flow banjos into different setups, including SAE quick connect, barb fittings for rubber hoses, and more.
AN-6 Male to SAE J2044 Ø7.89 5/16" Male Part #: 150-20-411
AN-6 Male to SAE J2044 Ø9.49 3/8" Male Part #: 150-20-412
AN-6 Male to AN-6 Male 1/8 NPT gauge adapter Part #: 310-02-201
AN-6 Male to Barb 8mm Male Part #: 700-07-101
AN-6 Male to Barb 10mm Male Part #: 700-07-102
• Choose between different sizes when placing an order :
AN-6 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-101
AN-6 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-102
AN-6 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-103
AN-6 ORB to AN-6 Female Full Flow Banjo Part # : 710-01-104
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB to AN-6 Female Full Flow Banjo Part # : 710-01-108
AN-8 (3/4 UNF) to AN-6 Male Full Flow Banjo Part # : 710-01-113
AN-8 (3/4 UNF) to AN-8 Male Full Flow Banjo Part # : 710-01-114
AN-8 (3/4 UNF) to AN-10 Male Full Flow Banjo Part # : 710-01-115
AN-8 (3/4 UNF) to AN-6 Female Full Flow Banjo Part # : 710-01-116
AN-10 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-109
AN-10 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-110
AN-10 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-111
AN-10 ORB to AN-6 Female Full Flow Banjo Part # : 710-01-112
If you wish to change or complement the use of fittings of the highest quality, we recommend that you use our fittings which are designed to withstand high power and excessive wear and in the right combination with the products they were intended for.
• AN-10 ORB Full Flow Banjo Specifications:
For more information about specifications, view the product sheet.
| Bolt thread (clear) | AN-10 ORB |
| Outlet thread (black) | AN6, AN8, AN10, AN6 Female * |
| Swivel rotation | 360 degrees, also when it is installed |
| Compatibility | Gasoline, Ethanol, Diesel, Coolant, Air |
| Diameter bolt (clear) | 27mm (1.06") |
| Diameter banjo (black) | 34mm (1.34") |
| Height, when installed | 30mm (1.18") |
* Choose the outlet thread version when placing an order

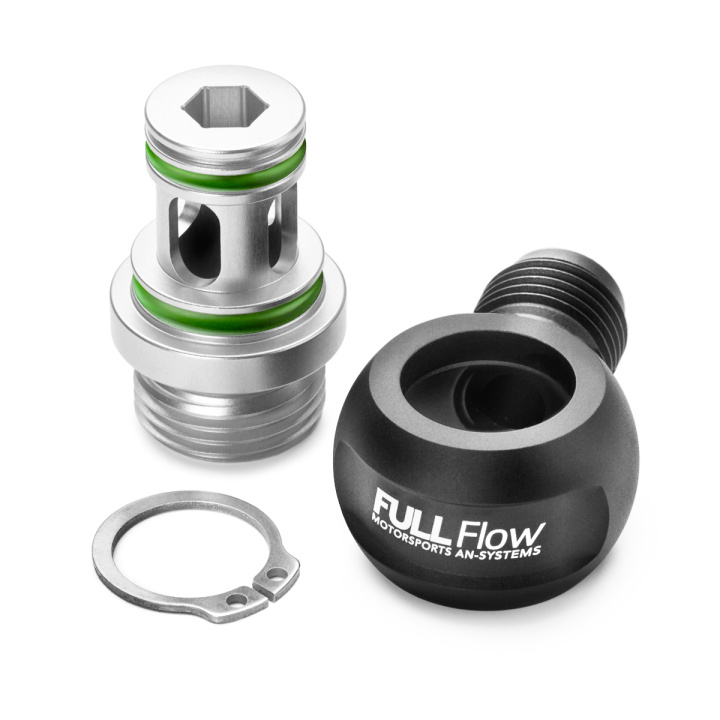

• Nuke Performance Full Flow Banjo includes:
1 x AN10 ORB threaded full-flow bolt
1 x AN6 Male, AN8 Male, AN10 Male, AN6 Female banjo
1 x Stainless steel C-clip
2 x Viton O-ring, safe for all types of fuels, including E85
• Download Product Sheet (.pdf)
