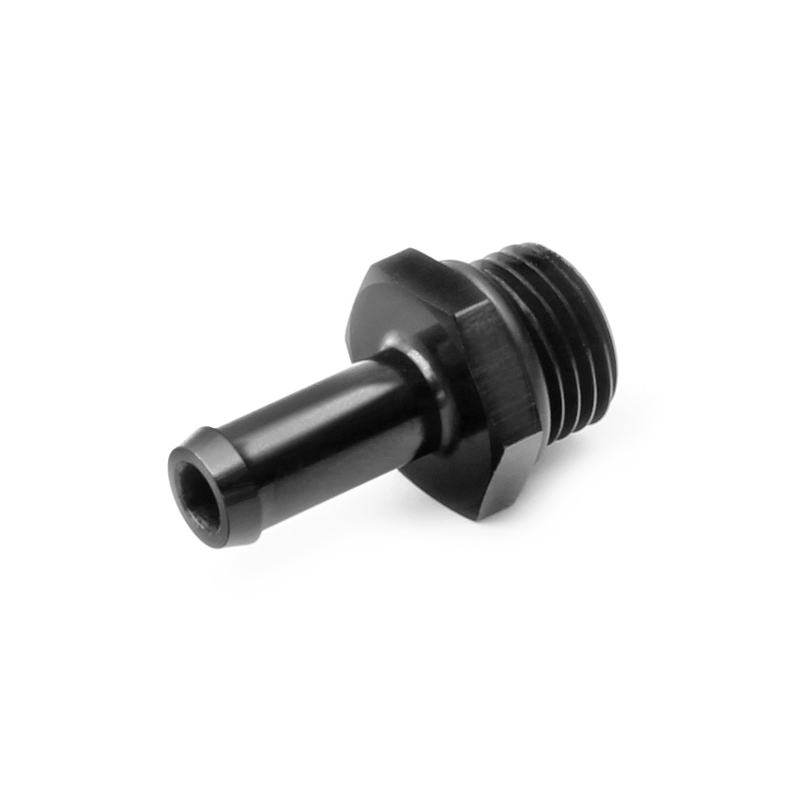

High flow AN-6, AN-8, and AN-10 ORB to Barb male adapters for vacuum, fuel, oil, and water hose. With a Viton O-Ring safe for all fuels, including alcoholic fuels such as ethanol.
Use with Nuke Performance products to adapt the common ORB thread into a barbed male fitting for 8/10/13/16mm ID fuel/oil/water hose. Suits many applications, for example, aftermarket fuel filter installations without changing the OEM rubber hose to an AN fuel line.
Used on Nuke Performance products:
- FPR100-series fuel pressure regulators
- CFC Unit for ATL fuel cells
- CFC Unit for brushless fuel pumps
- 2G Fuel Surge Tanks with ORB threads
- Oil Catch Cans
Available in different sizes and options:
AN-6 ORB to 8mm Male Part # : 700-04-122
AN-6 ORB to 10mm Male Part # : 700-04-145
AN-6 ORB to 14mm Male Part # : 300-10-136
AN-8 ORB to 8mm Male Part # : 700-04-123
AN-10 ORB to 8mm Male Part # : 700-04-124
AN-10 ORB to 10mm Male Part # : 700-04-125
AN-10 ORB to 13mm Male Part # : 700-04-126
AN-10 ORB to 16mm Male Part # : 700-04-127
If you wish to change or complement the use of fittings of the highest quality, we recommend that you use our fittings, which are designed to withstand high power and excessive wear, and in the right combination with the products they were intended for.
Quantity : 1pc
