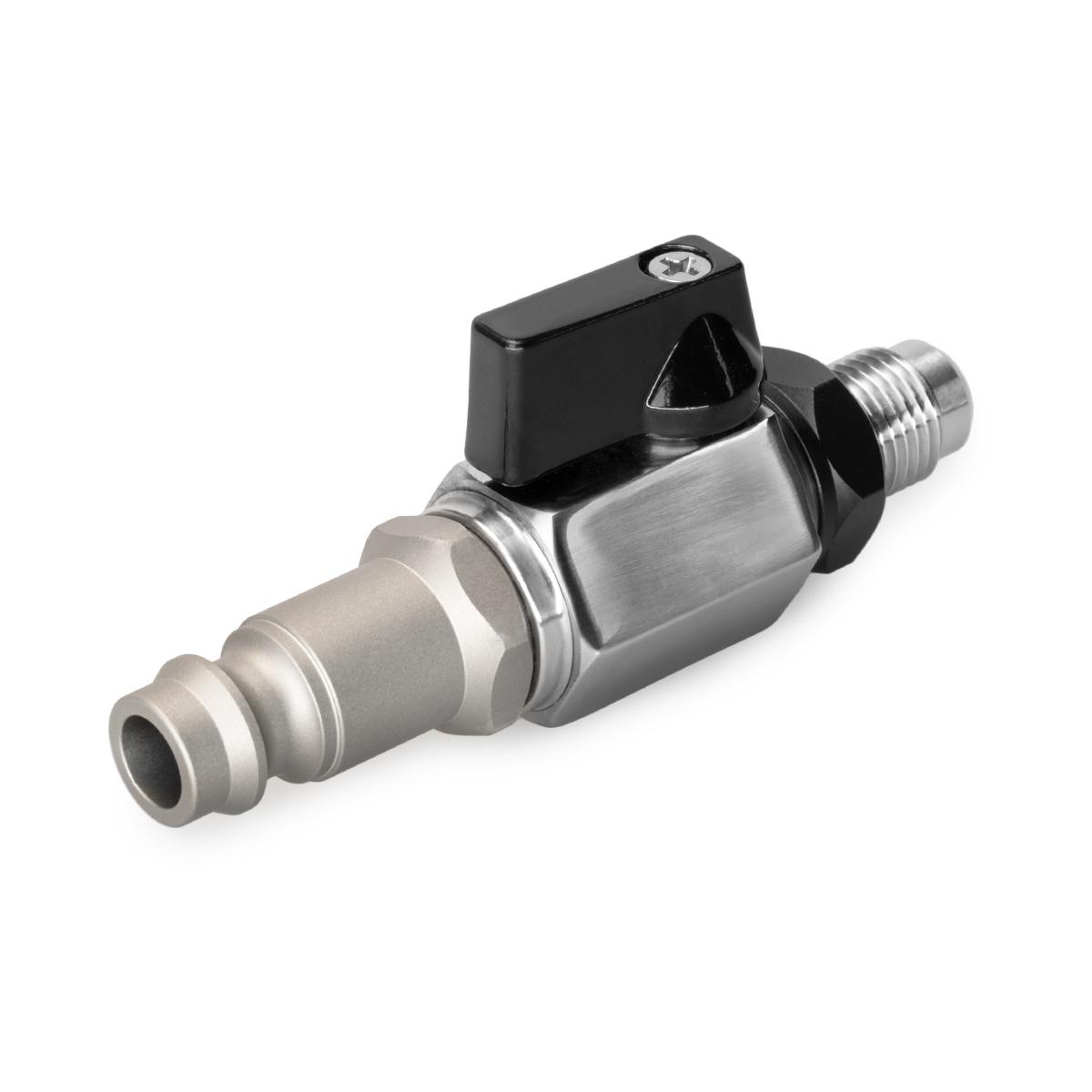

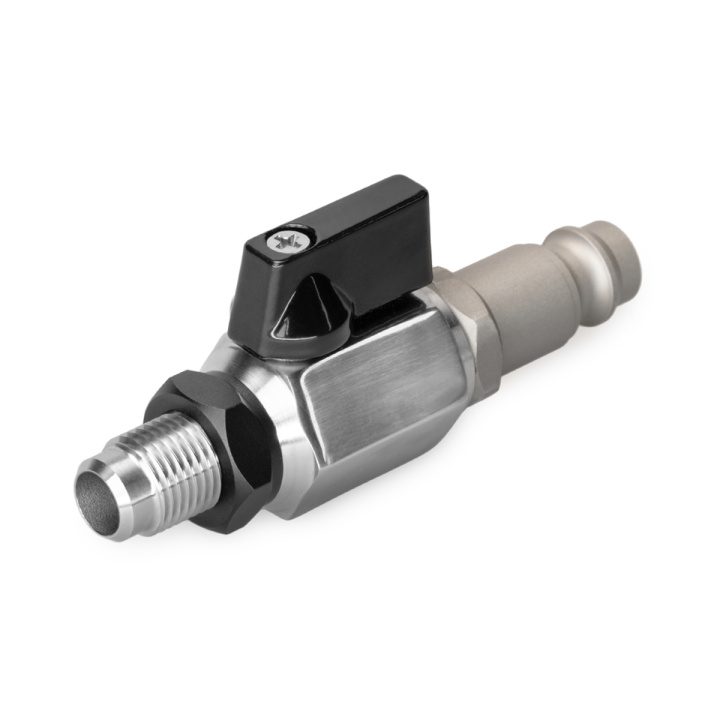

The Air Jack Petcock Ball Valve Male Connector, AN-6, is a versatile quick-connect valve. It is fully compatible with the Nuke Performance air jack lance and also works seamlessly with lances from other manufacturers.
Quick-connect valve with optional shut-off functionality. The ball valve allows the system to remain pressurized even when the air jack lance is removed. Slowly opening the valve enables controlled lowering of the air jack system if needed. When the ball valve is open and the lance is removed, the lift will disengage immediately upon pressure release.
• AN-6 Male thread connection
• Maximum operating pressure of 40 BAR (580 PSI)
• Quick-connect valve with shut-off functionality
• Works with both high and low-pressure air jacks
• Low friction threaded connector body
Use the Air Jack Petcock Ball Valve Male Connector, AN-6 in combination with one of the Nuke Performance connector kits, available in aluminum hardline and PTFE hose options. The AN-6 male thread connects directly to the 90-degree AN-6 female adapter included in the connector kits, ensuring a secure and reliable fit.
Air Jack 60 C Hardline Kit Part # : 580-10-101
Air Jack 60 C PTFE Hose Kit Part # : 580-10-910
• Seamless and Reliable Connection for Nuke Performance Air Jacks: Durable, Quick-Connect AN-6 Male Air Connector.

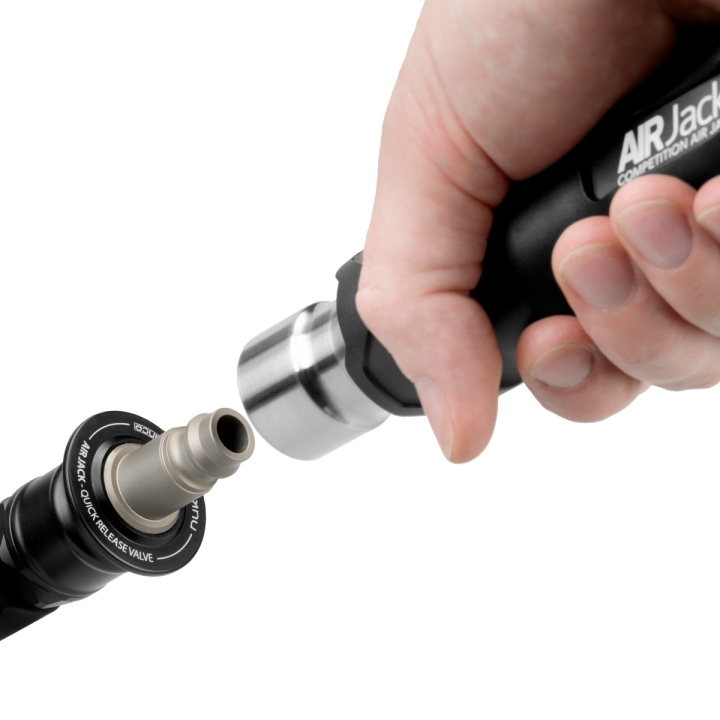

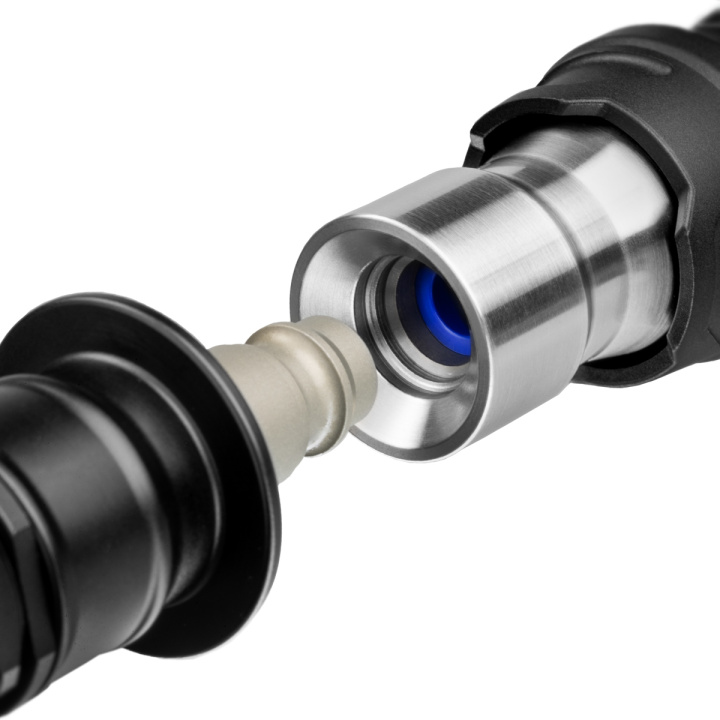

The male air connector end fits directly with the Nuke Performance Air Jack Lance, AN-6 (available here). The quick-connect lance instantly activates pressure upon attachment to the connector, securely locking it in place for reliable operation. When the sleeve is pulled out, the lance disengages from the connector, simultaneously releasing the pressure. Built with a lightweight aluminum body and stainless steel internals, this connector ensures durable and safe performance under demanding conditions.
Air Jack Lance AN-6 Part # : 570-10-001
Air Jack Lance High Pressure Hose 2m (6.5ft) Part # : 570-01-201
• Air Jack Male Connector, AN-6 Specifications:
For more information about specifications, view the product sheet.
| Connection | AN-6 Male / Air Jack Lance, AN-6 |
| Shut-off functionality | YES - Ball Valve |
| Max operating pressure | 40 BAR (580 PSI) |
| Length | 97 mm (3.81") |
| Weight | 133 g (0.29 lb) |
| For motorsports use | YES |
| Part # | 570-20-102 |
| EAN | 7340209507843 |
• Download Product Sheet (.pdf)
• Accessories / Spare Parts
