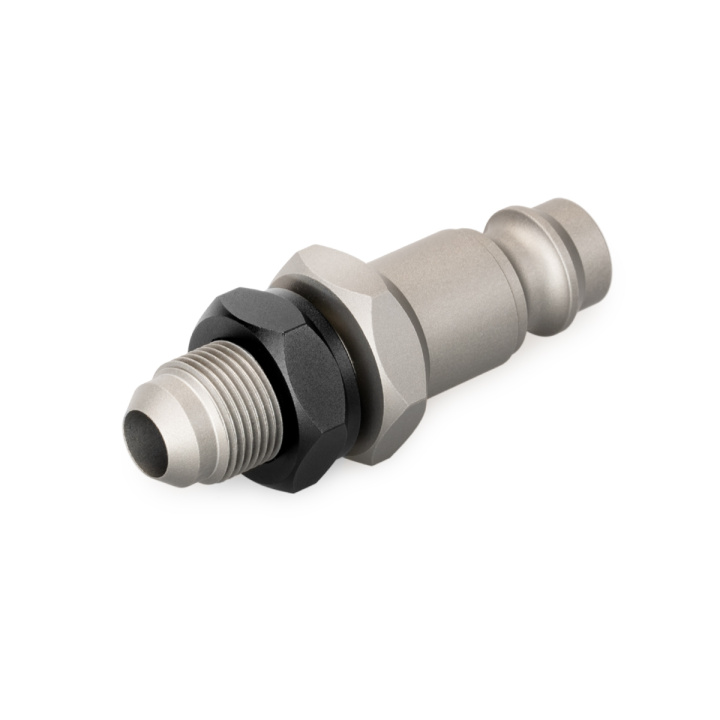

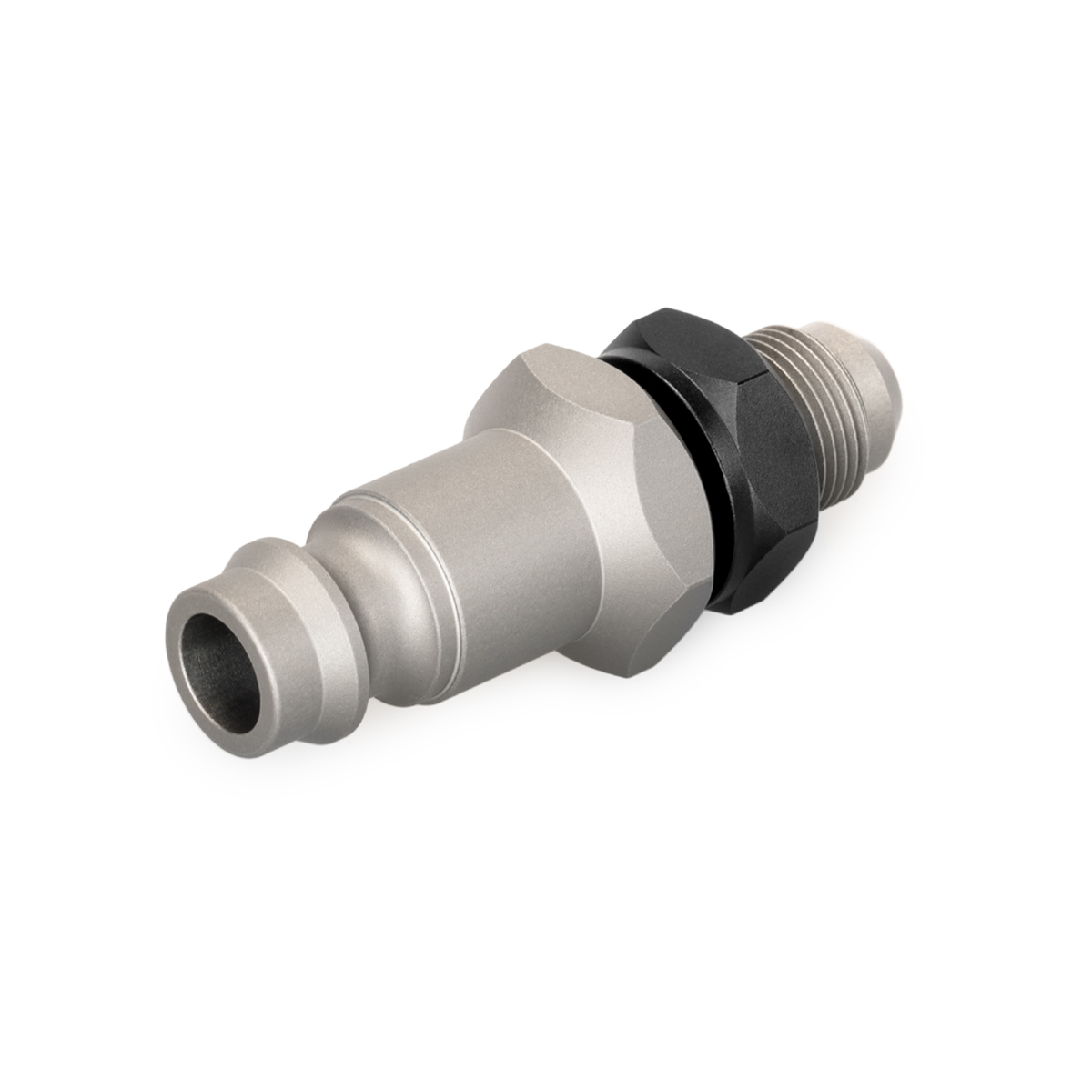

The Air Jack Male Connector, AN-6, is a versatile quick-connect valve. It is fully compatible with the Nuke Performance air jack lance and also works seamlessly with lances from other manufacturers.
The quick-connect valve is designed without shut-off functionality. The AN-6 male thread allows for effortless connection to Nuke Performance hose or tube kits (available here). This connector activates the lift instantly upon pressure application and disengages the lift immediately when the air jack lance is removed, releasing the pressure.
• AN-6 Male thread connection
• Maximum operating pressure of 40 BAR (580 PSI)
• Quick-connect valve without shut-off functionality
• Works with both high and low-pressure air jacks
• Low friction threaded connector body
Use the Air Jack Male Connector in combination with one of the Nuke Performance connector kits, available in aluminum hardline and PTFE hose options. The AN-6 male thread connects directly to the 90-degree AN-6 female adapter included in the connector kits, ensuring a secure and reliable fit.
Air Jack 60 C Hardline Kit Part # : 580-10-101
Air Jack 60 C PTFE Hose Kit Part # : 580-10-910
• Seamless and Reliable Connection for Nuke Performance Air Jacks: Durable, Quick-Connect AN-6 Male Air Connector.

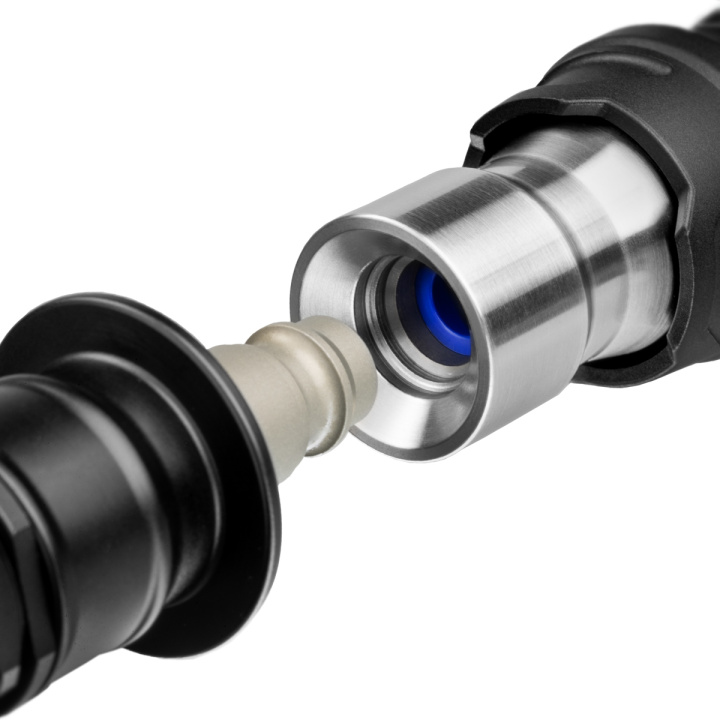

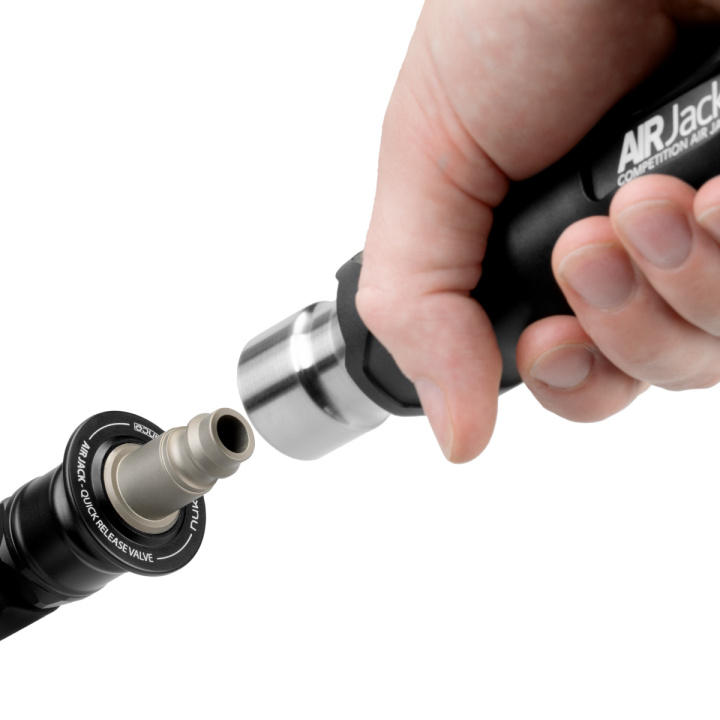

The male air connector end fits directly with the Nuke Performance Air Jack Lance, AN-6 (available here). The quick-connect lance instantly activates pressure upon attachment to the connector, securely locking in place for reliable operation. When the sleeve is pulled out, the lance disengages from the connector, simultaneously releasing the pressure. Built with a lightweight aluminum body and stainless steel internals, this connector ensures durable and safe performance under demanding conditions.
Air Jack Lance AN-6 Part # : 570-10-001
Air Jack Lance High Pressure Hose 2m (6.5ft) Part # : 570-01-201
• Optimal Installation and Protection: Mount and Safeguard Your Air Jack Connector with Ease.
The most convenient way to install the Air Jack Male Connector, AN-6 is by using the aluminum Air Jack Valve Enclosure (available here). This handy enclosure mounts directly to your vehicle's body, securing the valve/connector in an easily accessible yet protected location, safe from the harsh conditions of the racetrack. Pair it with the Air Jack Valve Protection Cap, with wire (available here), to prevent debris from entering your high-pressure system, ensuring optimal performance and longevity.
Air Jack Valve Enclosure Part # : 570-20-201
Air Jack Valve Protection Cap Part # : 570-20-202
• Air Jack Male Connector, AN-6 Specifications:
For more information about specifications, view the product sheet.
| Connection | AN-6 Male / Air Jack Lance, AN-6 |
| Shut-off functionality | NO |
| Max operating pressure | 40 BAR (580 PSI) |
| Length | 68 mm (2.67") |
| Weight | 27 g (0.06 lb) |
| For motorsports use | YES |
| Part # | 570-20-101 |
| EAN | 7340209507836 |
