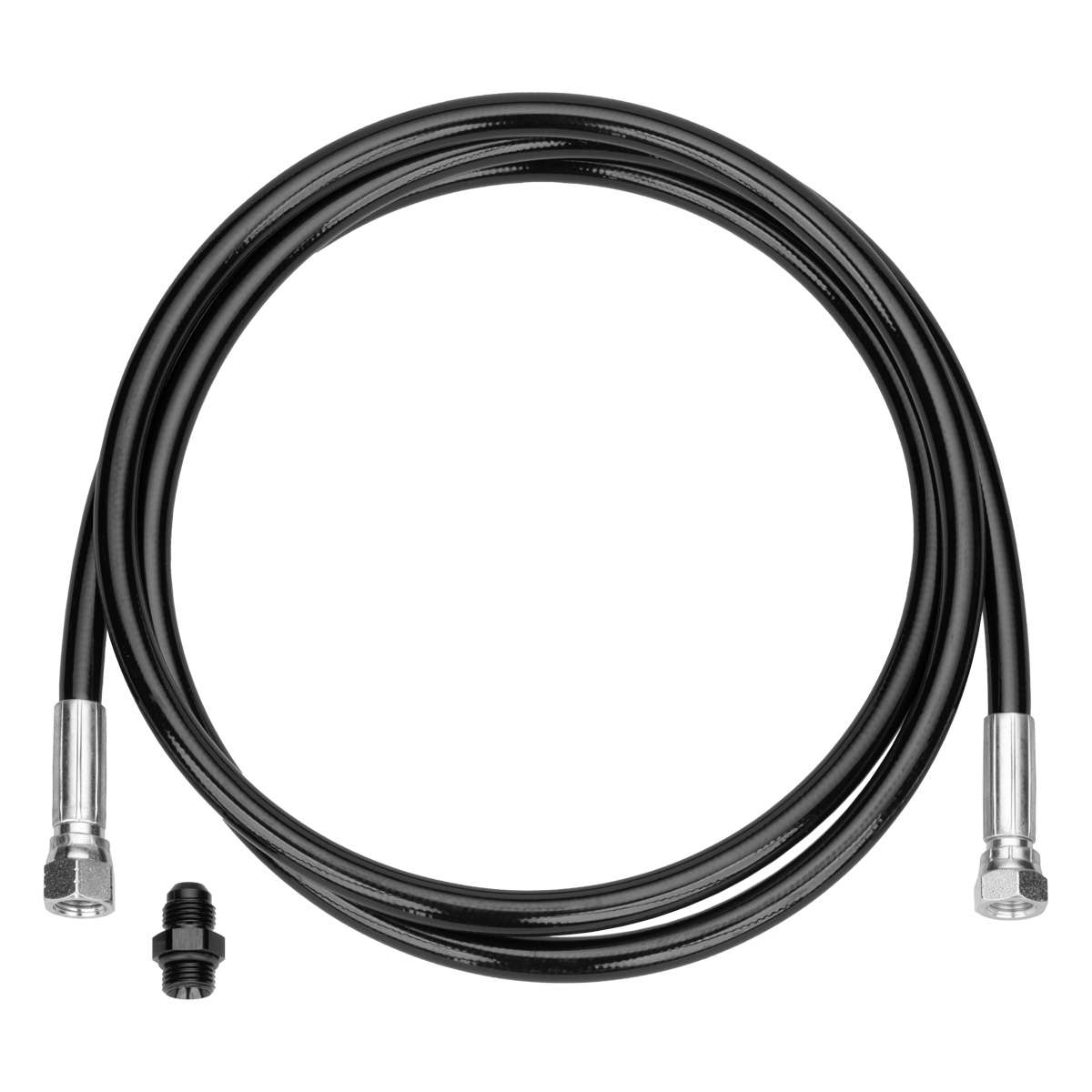

A high-pressure hose for the Nuke Performance Air Jack Lance is a flexible and reliable connection for your Nuke Performance Air Jack system.

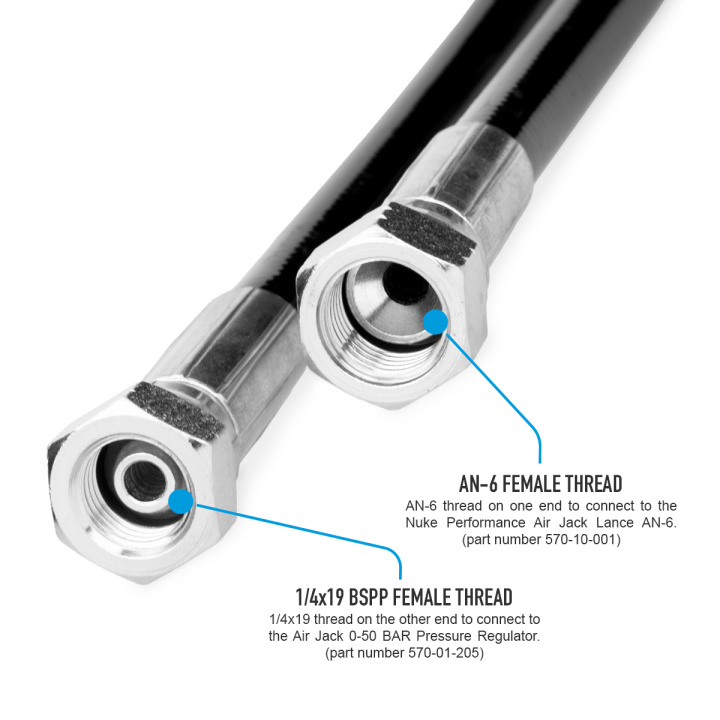

The Air Jack Lance High Pressure Hose 2m (6.5ft) is the perfect hose to connect your compressed air bottle to your air jack lance. The AN-6 female thread on one end fits the Nuke Performance lance, and the G1/4x19 fits straight to the available pressure regulator.
• Max operating pressure of 50 BAR (725 PSI)
• High flexibility and high endurance pressure hose
• AN-6 ORB thread to connect to air jack lance
• Extensive length of 2m / 6.5ft

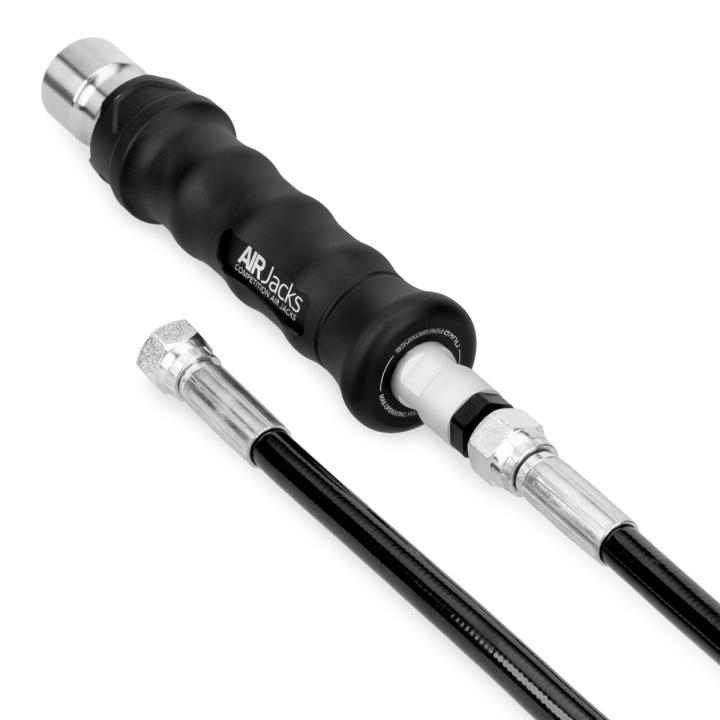

Use the AIr Jack Lance High Pressure Hose 2m (6.5ft) in combination with the Nuke Performance Air Jack Lance, AN-6 (available here) to source the perfect hose that connects your compressed air bottle regulator (available here) to your air jack lance.
• Reliable high-pressure hose for effortless air jack operation.
The connection between your air source and vehicle is critical, especially when dealing with high-pressure systems. The Nuke Performance Air Jack Lance High-Pressure Hose is engineered to provide exceptional flexibility and durability, ensuring reliable performance even at pressures up to 40 BAR (580 PSI). With a generous length of 2 meters (6.5 feet), this hose allows you to effortlessly reach your vehicle, whether you're in a cramped pit lane or your workshop. The AN-6 connection offers a simple and secure attachment between your air source and the air jack lance, delivering the precise pressure your air jack system requires when it matters most.
Air Jack Lance, AN-6 Part # : 570-10-001
Air Jack 0-50 BAR Pressure Regulator Part # : 570-01-205
• Seamless and Reliable Connection for Nuke Performance Air Jacks: Durable, Quick-Connect AN-6 Male Air Connector.
The Air Jack Lance from Nuke Performance connects seamlessly to one of the available connectors that is mounted to your vehicle. The quick-connect lance instantly activates pressure upon attachment to the connector securely locking into place for reliable operation. When the air jack lance sleeve is pulled out, the lance disengages from the connector, simultaneously releasing the pressure. Built with a lightweight aluminum body and stainless steel internals, this connector ensures durable and safe performance under demanding conditions.
Air Jack Male Connector, AN-6 Part # : 570-20-101
Air Jack Petcock Ball Valve Male Connector, AN-6 Part # : 570-20-102
Air Jack Quick Release Connector Valve, AN-6 Part # : 570-20-103
Air Jack Valve Enclosure Part # : 570-20-201
• Air Jack Lance High Pressure Hose 2m (6.5ft) Specifications:
For more information about specifications, contact us directly.
| Regulator Connection | 1/4x19 BSPP Female |
| Lance Connection | AN-6 Female (JIC 9/16x18 UNF) * |
| Included adapter | AN-6 ORB to AN-6 Male fitting * |
| Min operating pressure | 8 BAR (120 PSI) |
| Max operating pressure | 50 BAR (725 PSI) |
| Length | 2m (6.5ft) |
| Weight | 450 g (0.99 lb) |
| For motorsports use | YES |
| Part # | 570-01-201 |
| EAN | 7340209501094 |

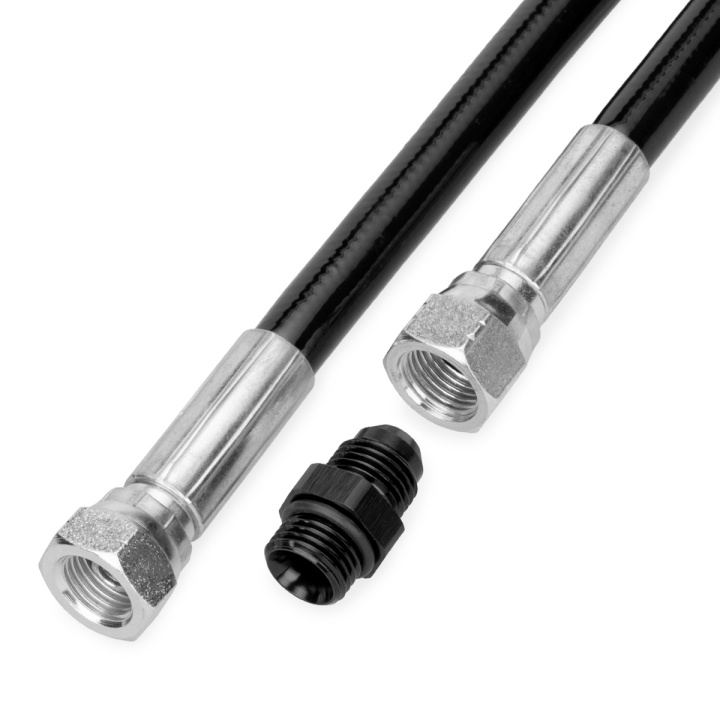

* AN-6 ORB to AN-6 Male fitting (part number 700-04-101) is included, used to connect to Nuke Performance Air Jack Lance, AN-6 part number 570-10-001.
• Accessories / Spare Parts
Air Jack Lance High Pressure Hose 2m (6.5ft) includes:
1 x 2m (6.5ft) high pressure hose
1 x AN-6 ORB to AN-6 Male adapter fitting
