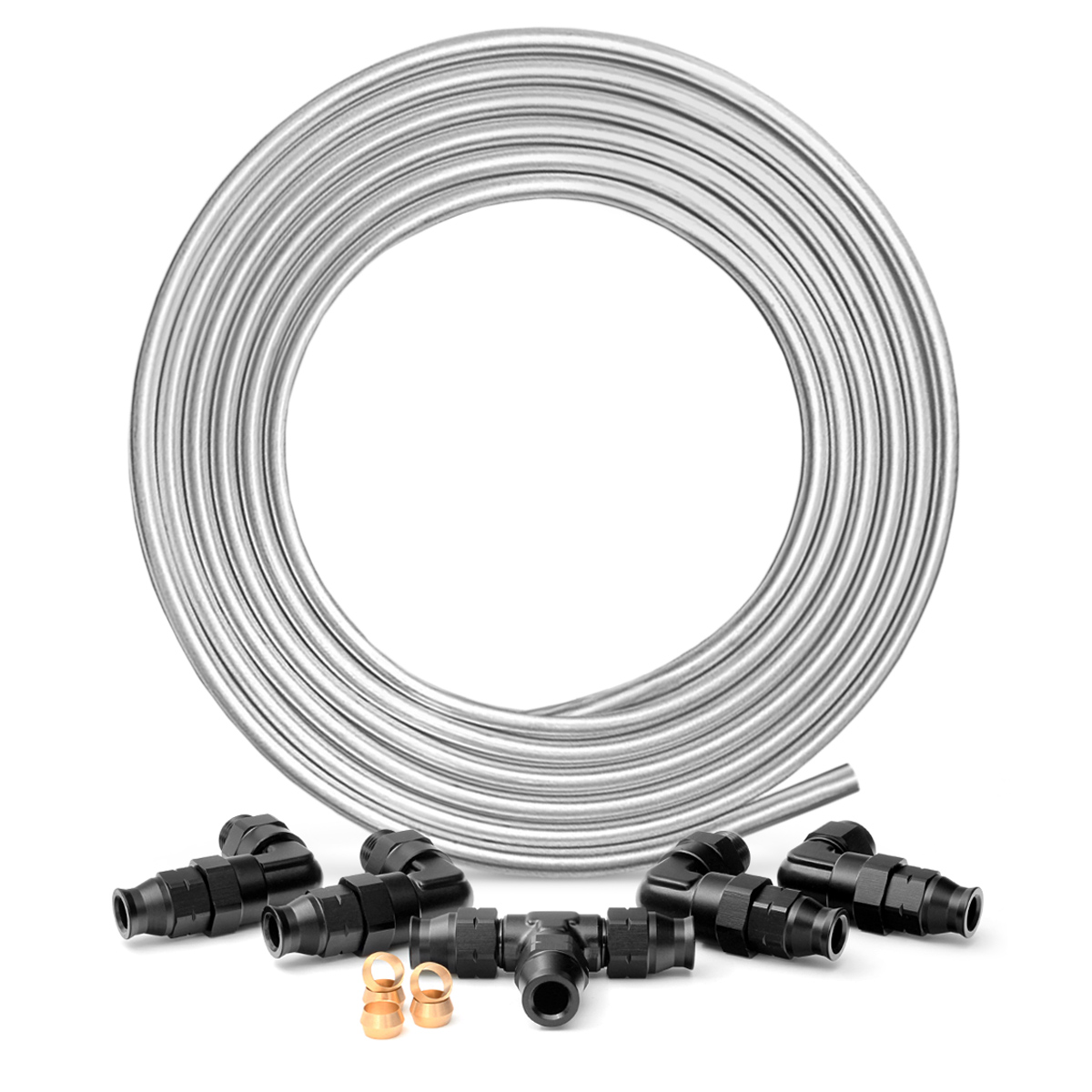

A premium hardline kit featuring durable aluminum tubing and precision-engineered hose ends, designed to create a reliable and efficient hardline system for the Nuke Performance Air Jack 60C and 90C.
Installing the Nuke Performance high-pressure Air Jack 60C and low-pressure Air Jack 90C air jacks is made simple with this hardline kit, designed for 8-30 BAR (120-435 PSI). It includes everything you need for a 3 or 4-piece air jack setup, allowing a seamless connection between your chosen valve and the air jacks.
• Works for both 8 BAR (120 PSI) and 20 BAR (290 PSI)
• Includes 10m / 32.8ft 8mm aluminum hardline tube
• Fits 3 / 4pc Air Jack 60C / 90C setups for motorsports
• Quick and easy plumbing with the included hose ends
• Connects with 90-degree hose ends at all 5 connections
This Nuke Performance kit includes all necessary AN-6 fittings to connect the air jacks to your chosen valve. Easy to install, it comes with OD 7.92mm (5/16") aluminum hardline tubing and the required fittings for a 3-piece or 4-piece air jack setup.
• Delivered with all the needed fittings to connect your connection valve to your air jacks.

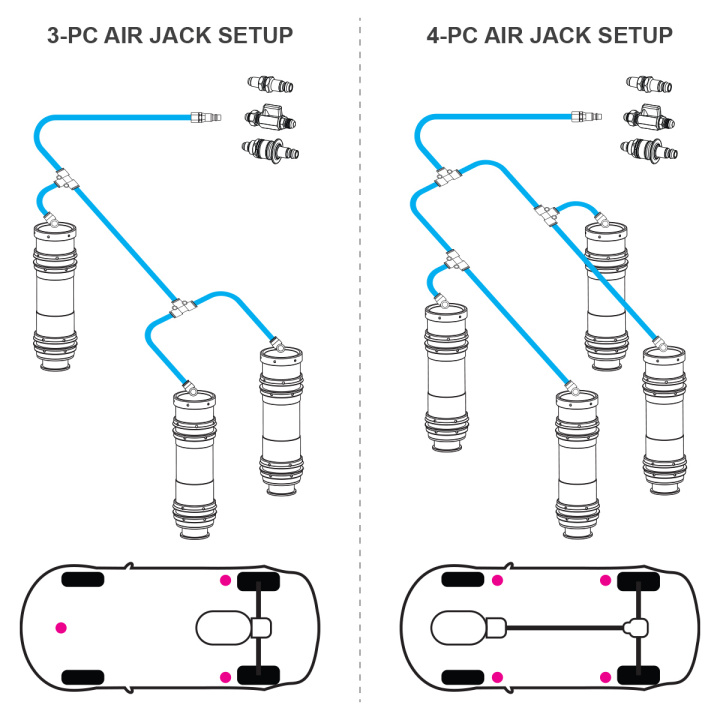

The hardline kit includes 90-degree hose ends for each air jack and a Female AN-6 90-degree hose end that easily connects to any Nuke Performance connection valve for the air jack lance (available here). With the included T-block adapters, this kit allows for straightforward routing in most vehicle setups, whether using a 3-piece or 4-piece configuration.
The hardline kit provides an ultra-lightweight installation, saving nearly 3kg (2.20lb) compared to the PTFE kit also offered by Nuke Performance. While it may require slightly more effort to install than the nylon braided PTFE kit (available here), it’s perfect for routing through tight spaces. The kit includes 10m (32.8ft) of OD 7.92mm (5/16") aluminum hardline tubing. When you purchase one of the available air jack kits (available here), a connection kit can be included.
• Air Jack Hardline Kit Specifications
For more information about specifications, view the product manual.
| Max operating pressure | 37 BAR (540 PSI) |
| Compatibility | Compressed air, Argon, Nitrogen * |
| Temperature range | -20°C to 150°C (-4°F to 302°F) |
| Hardline finish | Raw aluminum alloy |
| For motorsports use | YES |
| Hardline operating pressure | 37 BAR (540 PSI) |
| Hardline burst pressure | 50 BAR (725 PSI) |
| Hardline inner diameter | 6.0mm (1/4") |
| Hardline outer diameter | 7.92mm (5/16") |
| Hardline included length | 10m (32.8ft) |
| Weight | 855g (30.16oz) |
| Part # | 580-10-101 |
| EAN | 7340209507812 |
* The Nuke Performance Air Jacks and their accessories should not be used with gases other than those specified in the compatibility list.
• Download User Manual (.pdf)
• Accessories / Spare Parts

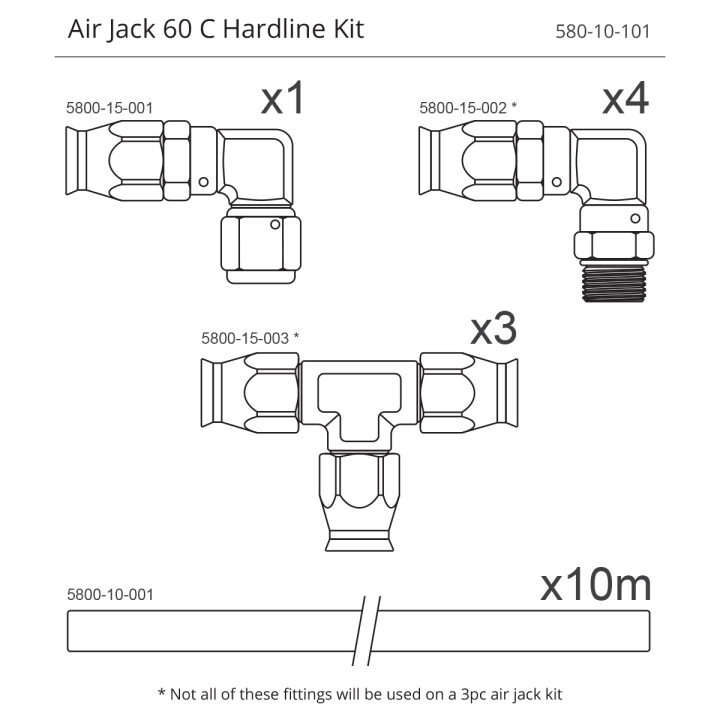

Air Jack Hardline Kit includes:
1 x AN-6 Female to Hardline tubing, 90 degree Hose End
4 x AN-6 ORB Male to Hardline tubing, 90 degree Hose End *
3 x T-Fitting for Hardline tubing Hose End **
10m (32.8ft) Aluminum hardline, OD 7.92mm (5/16")
4 x 1/4 BSPP to AN-6 Female adapter ***
* Only 3pc is used on a 3pc air jack kit, the 4th is not needed
** Only 2pc is used on a 3pc air jack kit, the 4th is not needed
*** Only used on Air Jack 90C installation, for Air Jack 60C these are not needed
