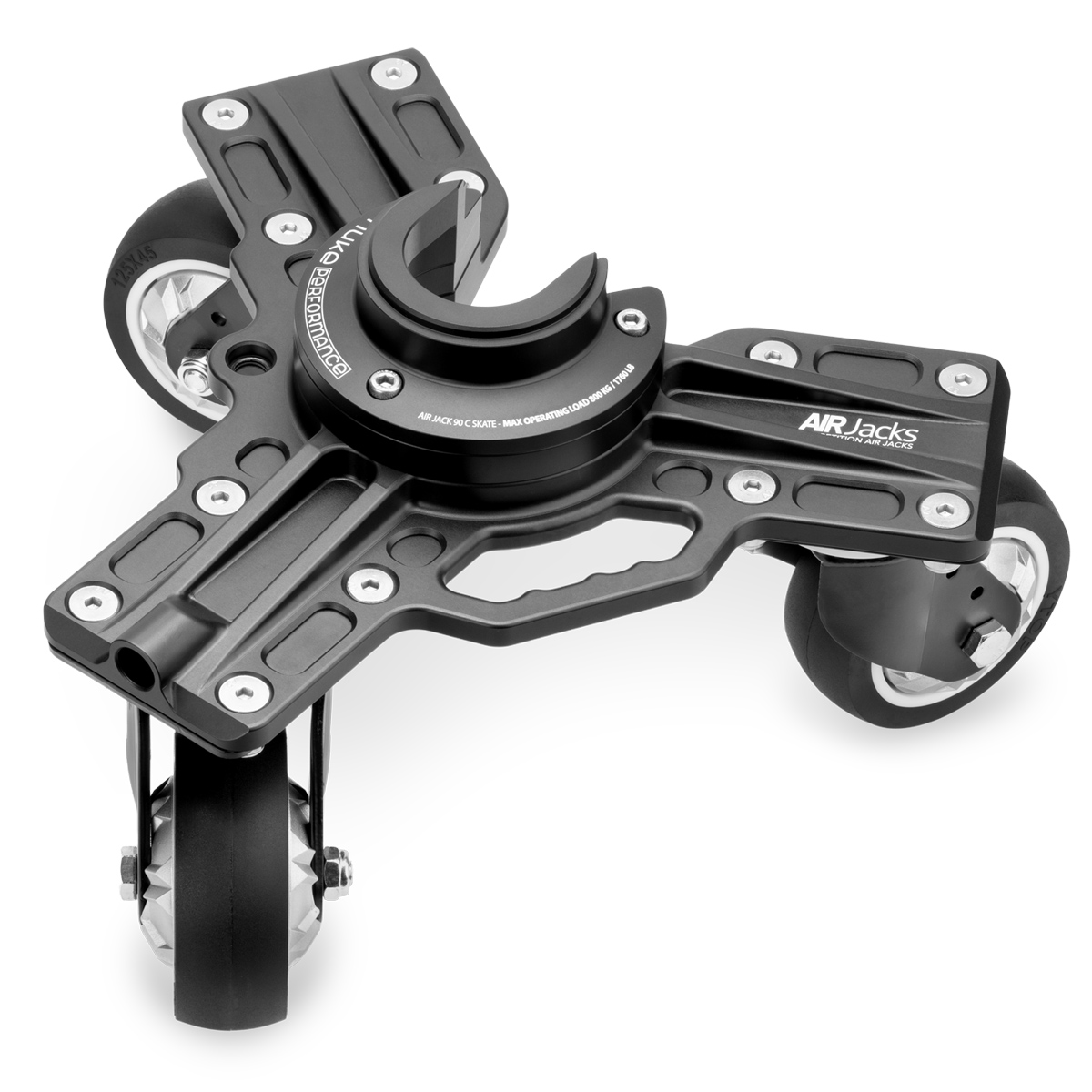

The Nuke Performance Air Jack 90C Skate is precision-engineered to perfectly fit the low-pressure Air Jack 90C, making it safer and easier to maneuver your race car in the workshop, pit, or warehouse.
Built to withstand the toughest demands of professional motorsport, these skates ensure smooth, stable, and secure handling when the car is lifted with air jacks. Once positioned, the vehicle can be rotated and moved in any direction with minimal effort.
• Easily rotate and move your vehicle 360°
• Made for Nuke Performance Air Jack 90C
• Maximum load of 960 KG each

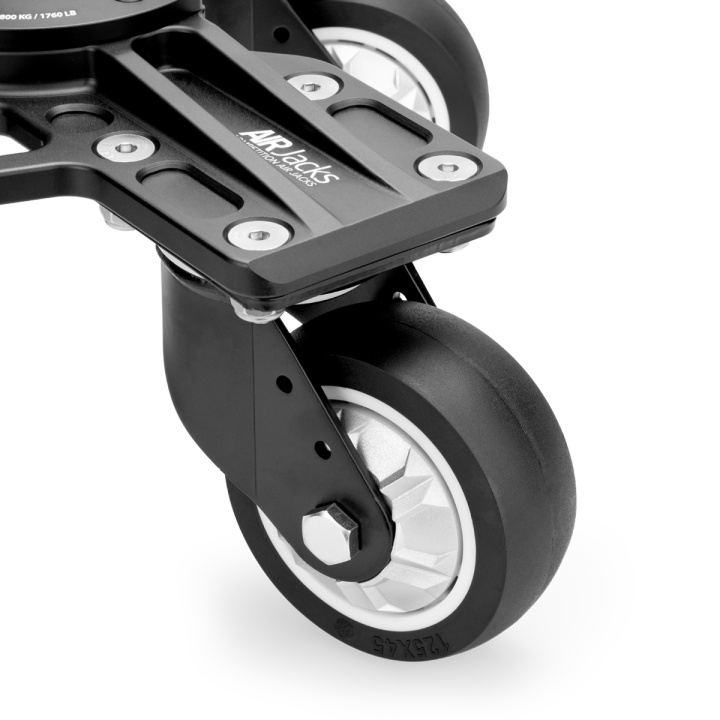

• 3x heavy load, full swivel wheels
• Optional carbon handles for easy reach
The Air Jack 90C Skate offers a reliable and flexible way to move your vehicle with full 360° rotation. Position the skates under the car while lifted by the air jacks, then lower the vehicle to lock it securely in place. Ideal for workshops, pit areas, and storage environments where precise movement is essential. Each skate handles a maximum load of 960 KG, surpassing the capacity of the air jacks, ensuring a safe and long-lasting use.

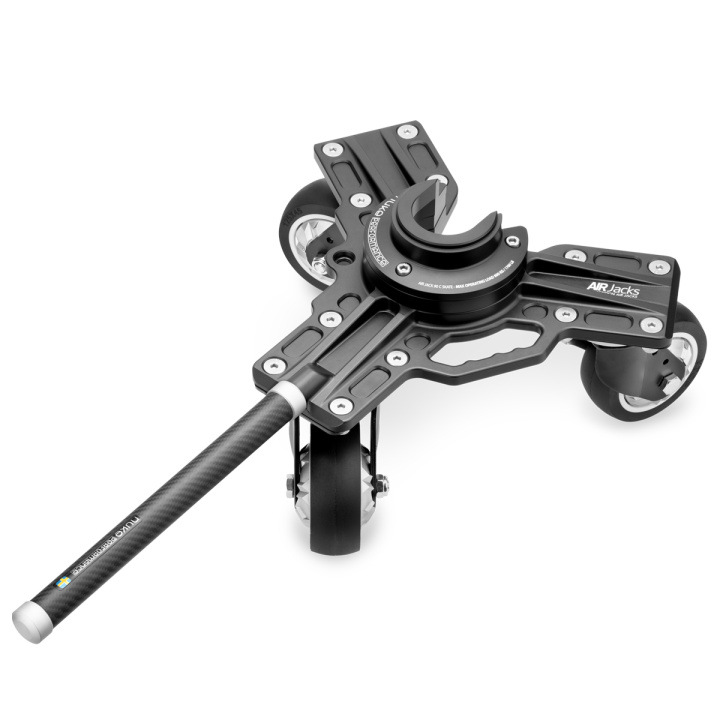

• Optional carbon handles, available in three different lengths, are easy to attach when you need to reach easily under your vehicle.

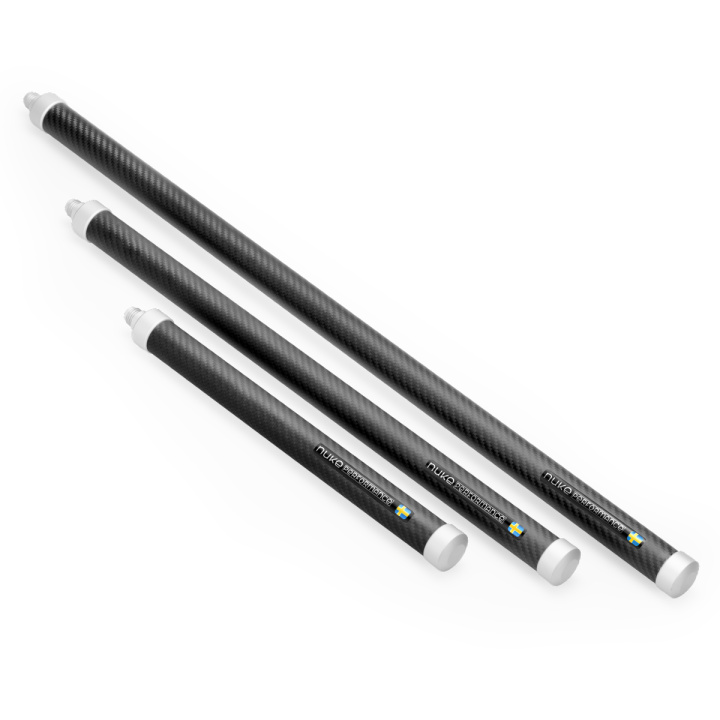

For effortless placement under your vehicle, the Nuke Performance Air Jack Skates can be equipped with optional carbon fiber handles, available in three different lengths – 330mm, 530mm, and 730mm (available here). Simply choose the size that best suits your setup.
• Optional handles are available in three different lengths

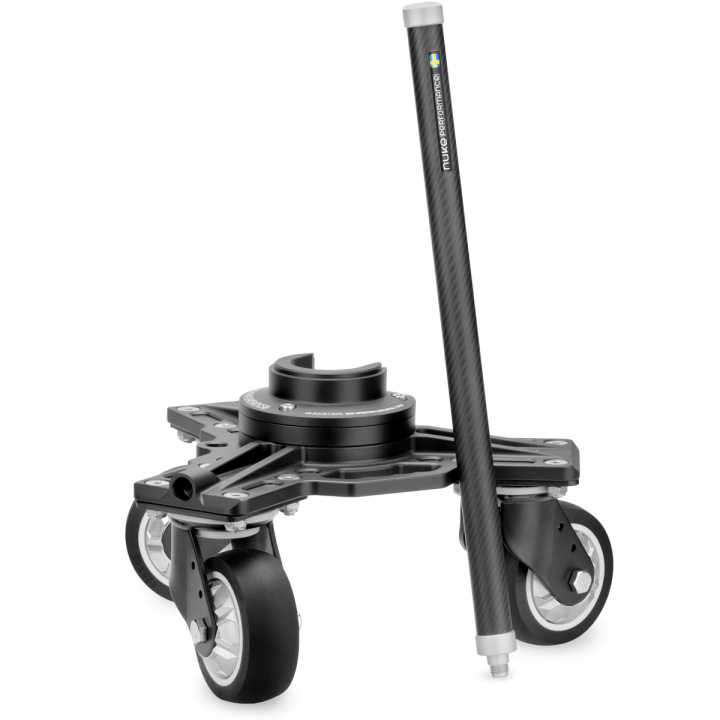

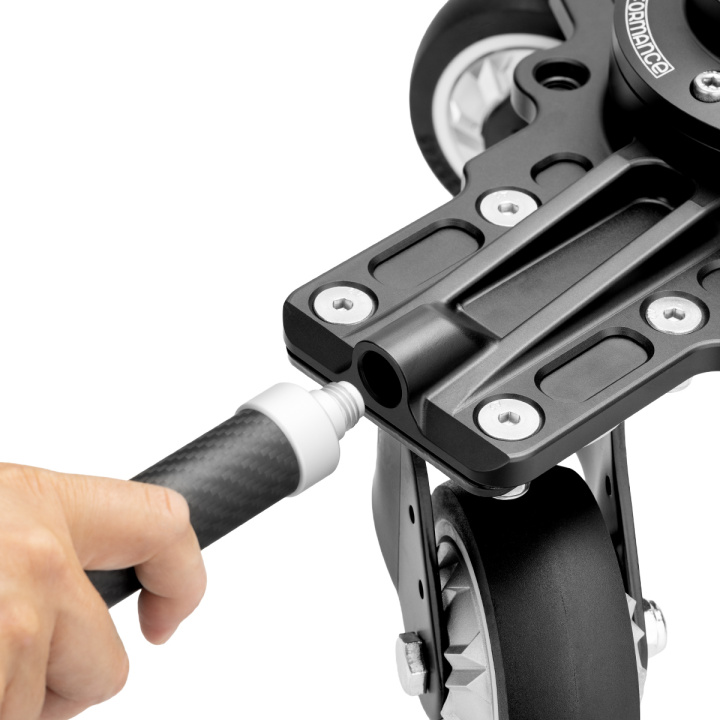

The handles are quick and easy to attach, making it possible to reach even the most hard-to-access air jacks. Each skate also features a top-mounted handle position, perfect for convenient storage and for moving the skates around the pit, workshop, or warehouse.
Air Jack Skate Carbon Handle, 330mm Part # : 570-05-210
Air Jack Skate Carbon Handle, 530mm Part # : 570-05-211
Air Jack Skate Carbon Handle, 730mm Part # : 570-05-212
• Each skate has an integrated handle for easy carrying and quick positioning.
Each Air Jack Skate is equipped with a built-in handle that makes it effortless to carry, maneuver, and position around the air jack piston. Quick to grab and simple to use, the integrated handle ensures fast and convenient setup in any environment.
The Nuke Performance Air Jack 90C Skates are the perfect addition for both professional motorsport teams and dedicated enthusiasts who want a simple, reliable way to move their vehicle in the pit, workshop, or warehouse. With skates in place, you gain new flexibility to reposition your car without wheels and tires mounted – it doesn’t get more convenient than this.
• Optional spacers are available, and the Air Jack 90C Skate is delivered with a 16mm spacer that can be removed if needed.
Both 8 mm (0.31") and 16 mm (0.62") spacers are available for fine adjustment of the final height of the Air Jack skates. The Air Jack 90C skate comes equipped with a 16 mm spacer as standard, which can be removed if additional clearance is required. Without any additional spacers installed, the Air Jack 90C skate offers a 32mm (1.26") clearance from the top of the skate to the air jack cylinder.
Air Jack Skate distance plate, 8mm Part # : 570-05-213
Air Jack Skate distance plate, 16mm Part # : 570-05-214
• Delivers the same uncompromising motorsport quality and performance as the rest of the air jack product range.
The Nuke Performance Air Jack Skates deliver the same uncompromising motorsport quality and performance as the rest of the Nuke Performance product range. When combined with our high-pressure Air Jacks, they unlock the full potential of your setup – offering unmatched speed, safety, and flexibility when lifting and moving your race car.
" Choosing Nuke means choosing reliable, track-proven equipment that saves valuable time in both the pit and the workshop. "
All Nuke Performance products are proudly designed and developed in-house in Sweden, ensuring top-tier engineering and attention to detail for the most demanding motorsport environments.

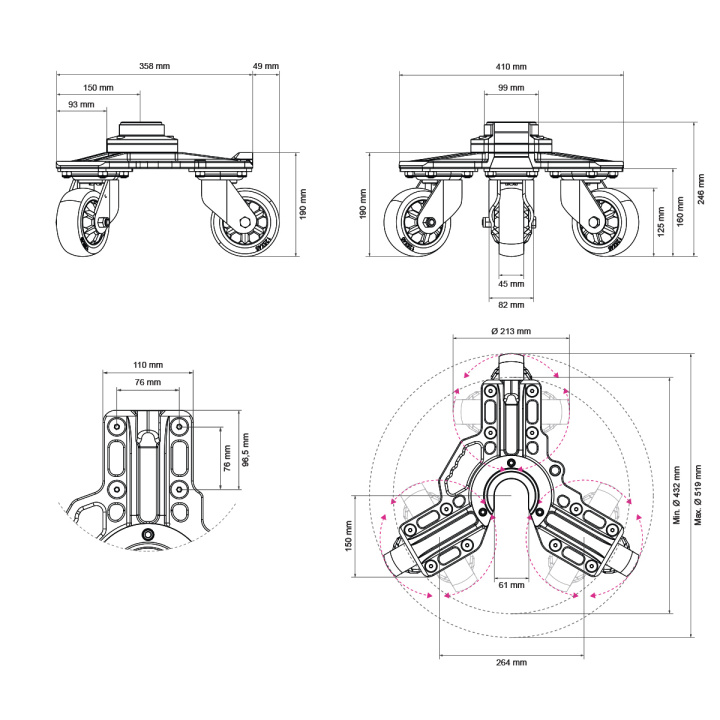

• Air Jack 90C Skate Specifications:
For more information about specifications, view the product manual.
| Compatibility | Nuke Performance Air Jack 90 C * |
| Wheel specification | 124x45mm Swivel, 320 KG max load |
| Max load | 960kg (2116lb) / skate |
| Max. outer diameter | 519.0mm (20.43") |
| Min. outer diameter | 432.0mm (17.01") |
| Height | 230.0 - 246.0mm (9.05 - 9.68") ** |
| Width | 410.0mm (16.14") |
| Weight | 9802g (21.60lb) |
| Minimum clearance | 230.0 - 246.0mm (9.05 - 9.68") ** |
| Part # | 570-05-202 |
| EAN | 7340209509762 |
| Quantity | 1 pcs *** |
* The 570-05-202 skate only suits the Air Jack 90 C air jacks from Nuke Performance.
** Optional 16mm distance plate is included, 230mm is without, 246mm is with distance plate installed.
*** Only for use with 3pcs and 4pcs air jack kits, you need the same number of air jack skates as air jacks.
• Download Product Manual (.pdf)
• Accessories / Spare Parts
• Air Jack 90C Skate includes:
1 x Air Jack Skate body
1 x Air Jack 90C top adapter plate
1 x 16mm Distance plate for top adapter plate *
3 x MC6S M8x20 stainless steel bolts
3 x MC6S M8x40 stainless steel bolts
12 x MF6S M10x30 stainless steel bolts
12 x LM6M M10 stainless steel nuts
1 x Product manual
* Can be removed to lower clearance/height of 16mm when needed, bolts included for both options.
• The air jack skate is sold as a single unit; for a 4-piece kit, you will need 4 skates.
• The air jack skate is delivered without the optional carbon handles; these need to be purchased separately.
